The EPT VSC™ is a 19” rack mount, full-color, synchronous video processor for EPT and EZ series and eMAG4 video screens. Control is via standard Windows PC with DVI or HDMI output connection. It includes four RJ45 signal output ports on the rear, which allows connection for up to four LED video displays. Using a standard CAT6E ethernet cable, theEPT VSC™ transmits up to 2048 x 1152 pixel resolution within a max distance of 100m. The EPT VSC™ includes the NOVA™ management software, which allows for all configuration, sizing, mapping and calibration of EPT and EZ series and eMAG4 panels.


HDMI/DVI input
 HDMI/external audio input
 12bit/10bit/8bit HD video source
 Supported Resolutions: 2048×1152, 1920×1200, 2560×960
 Supports Cascading
 18bit gray scale processing
 Video format: RGB, YCrCb4:2:2, YCrCb4:4:4
 Standard 1U housing

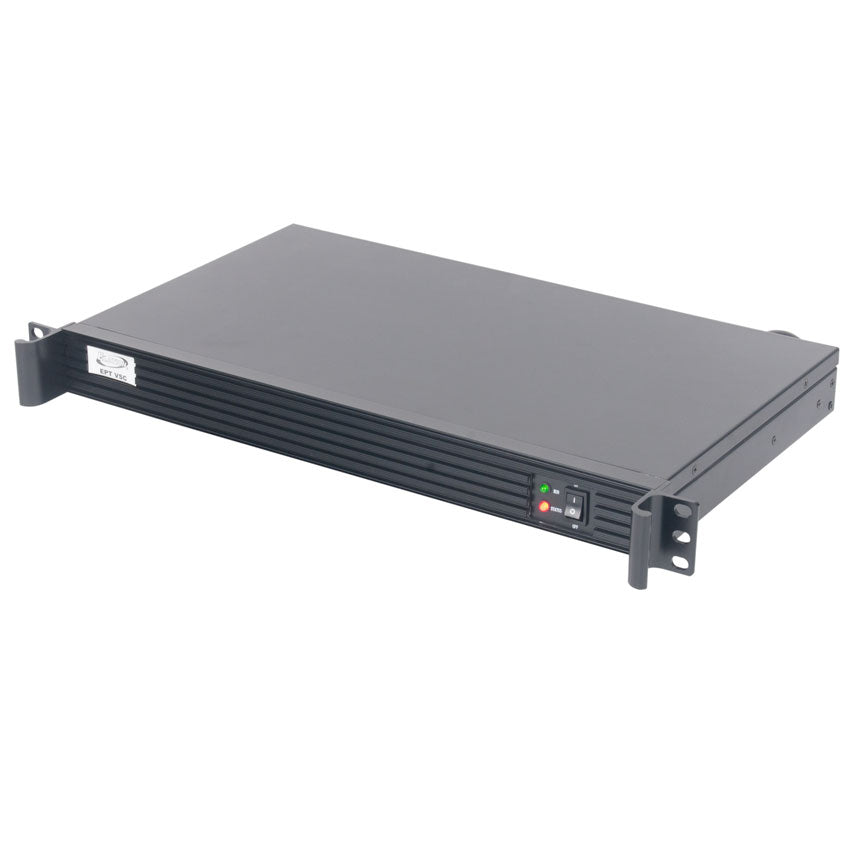

 Front Panel Controls: On / Off switch

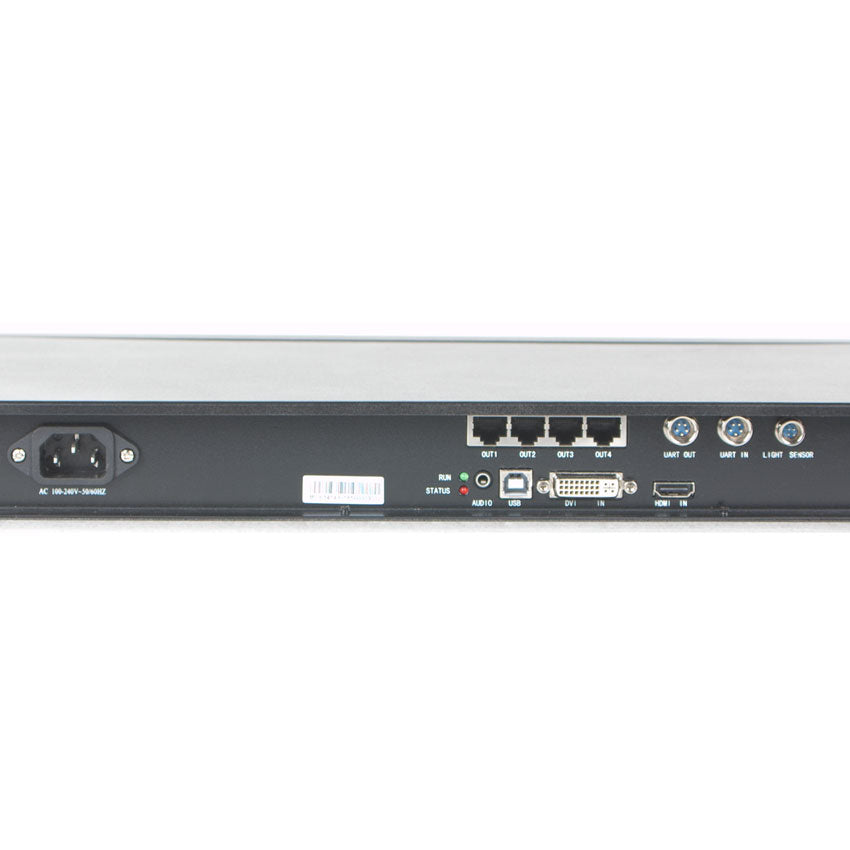

 Rear Panel Connections: AC input, 4x LAN output, USB, audio input, Light Sensor input, Cascade Input & Output, DVI input, HDMI input.
 Command Communication: USB
 Composition: Powder coated steel
 Mounting: Free standing on rubber feet or 19” rack mount
 1 light sensor input (Light sensor sold separately)
 Dimensions: 19" x 1.75" x 9.84
 Specifications are subject to change without any prior written notice.
