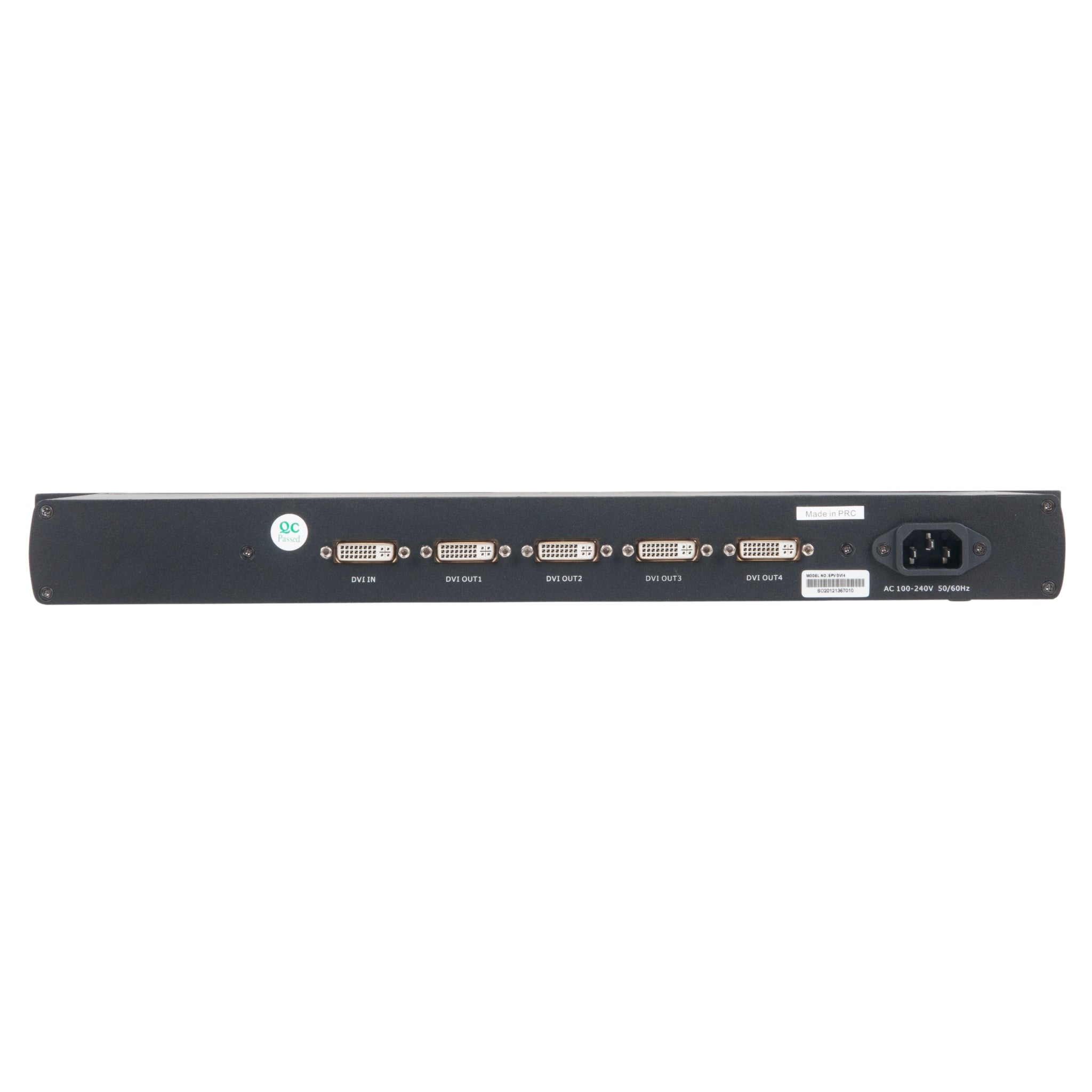

EPV DVI 4

Features

The EPV DVI 4™ is a 4-way DVI signal splitter/booster which features (1) DVI input and (4) DVI outputs, digital and analog signal compatibility, 165Mhz pixel rate support, 1920 x 1200 @60Hz max resolution, compatible for all Elation™ Video Products, plug and play design, cascade multiple units together, and 19” rack mountable.

 FEATURES
 4-Way DVI Signal Splitter/Booster
 Digital and Analog Signal Compatible
 165Mhz Pixel Rate Support
 1920 x 1200 @60Hz Max Resolution
 Compatible for all Elation Video™ Products
 Plug and Play Design
 Rack Mountable Aluminum Enclosure
 (rack screws not included)

Resources

User Manual

Specifications

CONTROL / CONNECTIONS
 On/Off Switch
 (1) DVI Input (4) DVI Outputs
 Cascade Multiple Units Together

 SIZE / WEIGHT
 Length: 19.0” (483mm)
 Width: 7.6” (194mm)
 Height: 1.7” (44mm)
 Weight: 5.0 lbs. (2.3kg)

 ELECTRICAL
 AC 100-240V - 50/60Hz

 INCLUDED ACCESSORIES
 Power Cable

 Specifications and documentation subject to change without notice.
