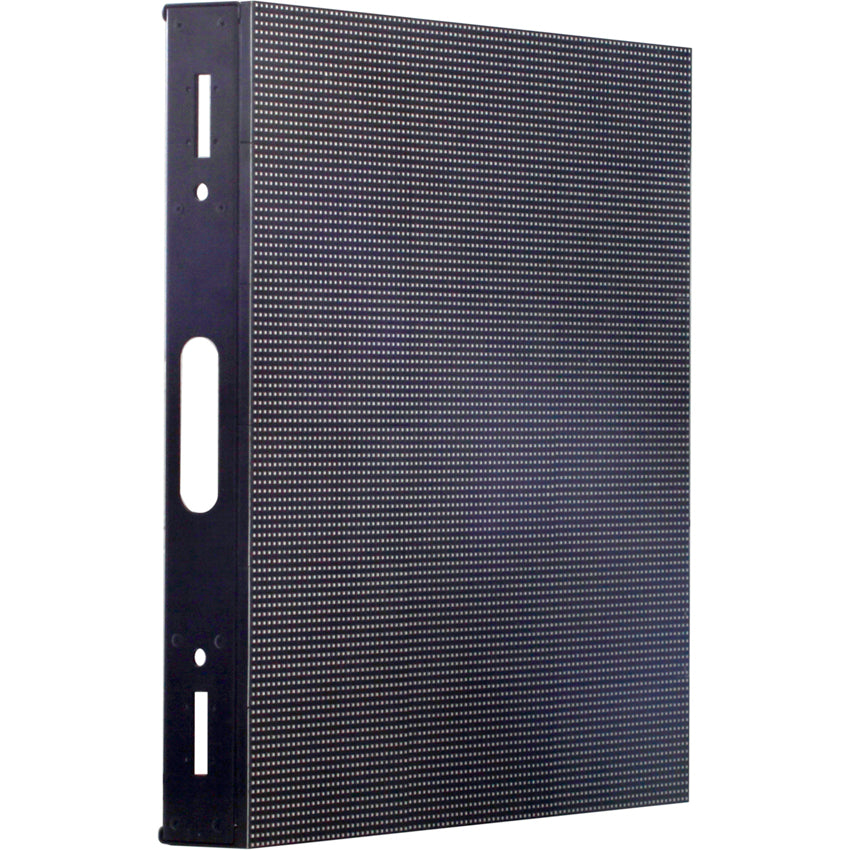

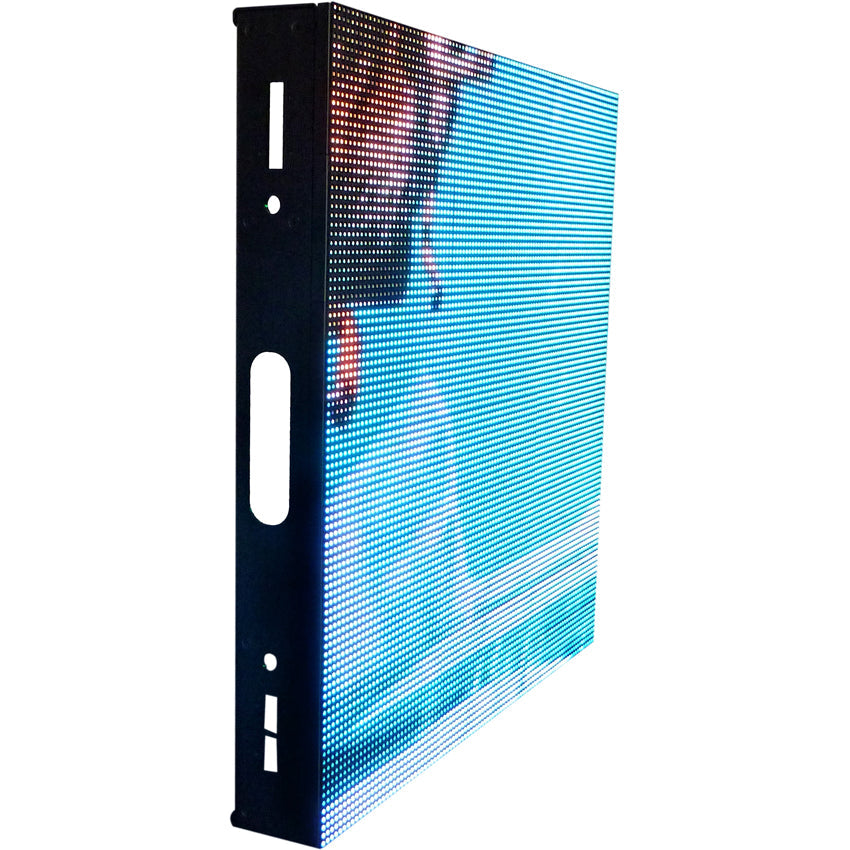

EPV6

Features

Resources

User Manual

Specifications

 Technical Specifications
 . Indoor rated
 . 2,500 nits
 . 3-in-1 SMD LED
 . LED Size: 3.5mm x 2.8mm
 . Pixels: 96 x 96 per panel (total 9,216 pixels per panel)
 . 2,000hz refresh rate
 . 16-bit processing
 . 5m min. viewing distance
 . 27,777 Pixels per sq mtr
 . Ethercon in/out for video signal
 . Powercon in/out for power link
 . 100-240v built in psu
 . 390watts power consumption per panel and 255watts average
 . 576mm x 576mm (22.7” x 22.7”)
 . 31lbs / 14kg
 . cETLus approved

 NOTE: Specifications and improvements in the design of this unit are subject to change without any prior written notice.
