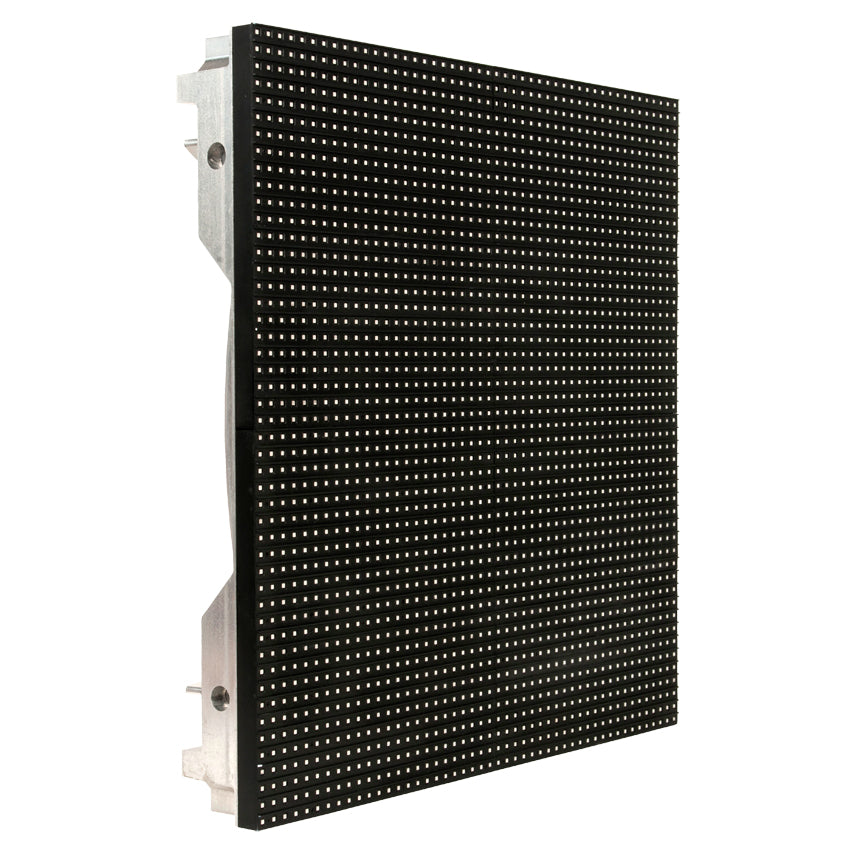

EPV7 IP

Features

The EPV7 IP is professional grade LED video screen display offering a IP65 (front & back) 7.8mm high resolution video panel. It is a member of Elations EPV IP series, which shares its frame design with other EPV IP series panels… the EPV3IP and EPV10IP. These versatile panels allow you to mix EPV IP series panels, within a wall, to achieve a dynamic and creative display with various resolutions. The housing is a die-cast mold which offers a rugged yet lightweight display panel that is easy to handle and rig. With its unique mechanical locking system, any panel from the EPV IP series can lock together to create a seamless video wall that suits your needs. Using high-quality and brightness LED's calibrated at 3,200 NIT’s with narrow binning and precise calibration, the EPV7 IP is the ideal solution for any indoor or outdoor application. The EPV7 IP panel delivers an excellent balance between brightness, color and contrast.

 IP65 Die Cast Case Front and Back
 Easy rigging and assembly
 Sturdy / Light weight cabinet design
 Quick release IP 68 connectors for data / power in/out
 Cat5 Cable for signal
 Self Test Button on panels
 Pixel Pitch 7.8mm
 Brightness 3,200 Nits (after calibration)
 Cabinet Size 19.7" x 19.7" x 2.9" (500mm x 500mm x 75mm)
 Weight 20.9lbs / 9.5kg
 4,096 Pixels (64 x 64)
 16,384 pixel per sq mtr
 Viewing Angle H120/V120
 Contrast Ratio 2000:1
 LED Type SMD 3535
 LED Life 100,000hrs
 Processing Depth 16bit
 Grey Scale 65,536 levels
 Refresh Rate 1000hz
 1/8 Scan Rate Constant Current
 Min. Viewing Distance 21' (6.5M)
 Operating Temperature -30c to +50c
 Operating Humidity 10- 90%
 Power Supply 100-240v AC, 50.60hz - auto sensing multi-voltage
 Max Power 320w / Avg Power 200W
 cETLus and CE Pending

 Preliminary Information
