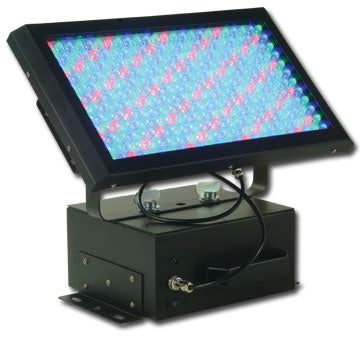

Event Panel System

Features

FEATURES

• Ultra-bright color panel with 288 10mm LEDs (48 Red, 120 Green, & 120 Blue LEDs)

• Includes rechargeable battery pack so the unit can operator remotely without being connected to electricity (use battery pack or AC cable for power)

• Seamless RGB color mixing

• Infinite color possibilities

• 40º Beam Angle

• Output Distance: 130-165 ft. (40-50 meters)

• Long Life L.E.D. (rated at 100,000 Hours)

• Low power consumption

• Low heat emissions

• Built-in Power Supply (10 hour life) and DMX 512 Control

• Flicker free operation for television and film

• LCD DMX Display with 4-button menu

• ELAR WR Wireless Infrared Remote included

Resources

User Manual

Specifications

CONTROL SPECIFICATIONS

• USITT-DMX 512

• 2, 3, 4, 7, 14, & 26 Channel operation modes

• 3-pin XLR in/out

 CONTROL FEATURES

• 5 Operational Modes: Programs Mode; Auto Run Mode; Sound Active Mode; DMX Control Mode; Master/Slave Mode

• Control via DMX-512 or from ELAR WR easy-to-use wireless remote

• 14 built-in programs

• Strobe effect (1-18 flashed per second)

• Sound controlled via built-in microphone

• 0-100% Dimming

 POWER SUPPLY

• 90-260V AC, 50/60Hz (Multi-voltage)

• On/Off Power switch

• Includes: 12V power supply to charge battery

• Includes: Infrared receiver with 1-meter cable

• Power Consumption: 36 watts
