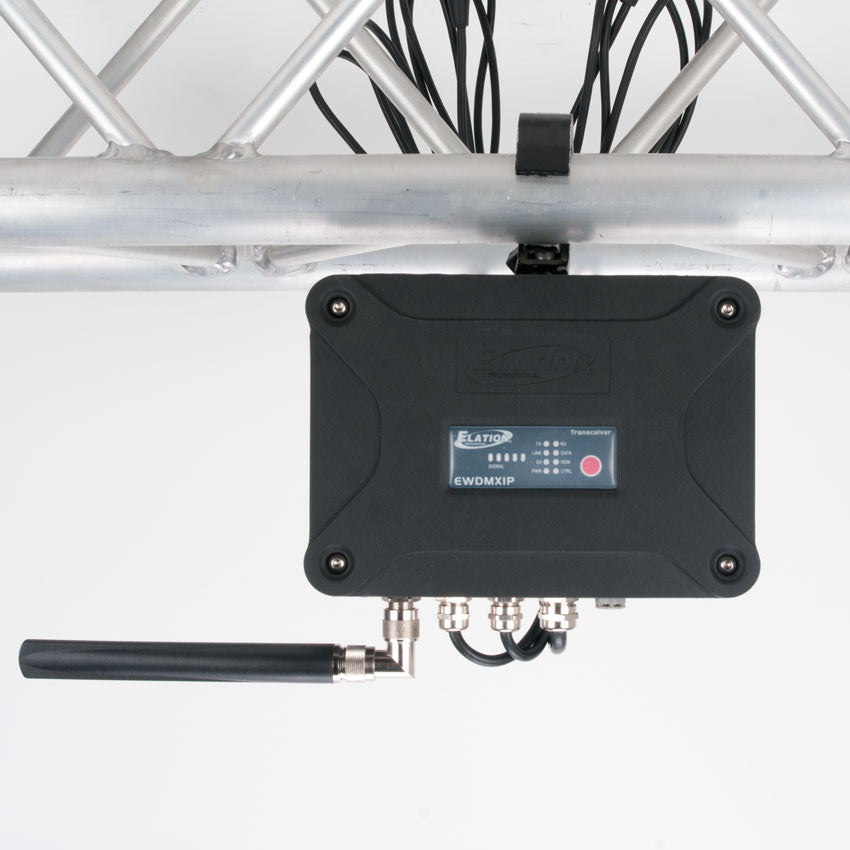

EWDMX IP Transceiver

Features

 IP65 Wireless DMX Transceiver with 2dbi Outdoor Antenna
 Up To 1,640 ft. (500m) Wireless DMX Range*
 FHSS (Frequency Hoping Spread Spectrum) 1,800 tps
 Datasafe Tech - Wireless Fidelity and Error Correction
 Invisi-Wire High-Fidelity Tech - Output Matches Input
 Easy-To-Use Single Push Button Function Control
 RDM (Remote Device Management) Support
 2.4GHz Radio – License Free Worldwide
 TDMA (Time Division Multiple Access)
 W-DMX G4 Protocol Support
 Rugged Hard Plastic Case
 Single DMX-512 Universe

Resources

Specifications Sheet

User Manual

Dimensional Drawing

Specifications

CONTROL / CONNECTIONS
Multi-Function Single Push Button
Antenna Port
3pin IP Data Input
3pin IP Date Output
3pin IP Power Input

WIRELESS RANGE
Up To 1,640 ft (500m)*
*Based on general testing of the EWDMX IP™ in an outdoor urban area with normal interference, installed in a location 9.8 ft. (3m) ABOVE AUDIENCES and/or GROUND LEVEL, with a DIRECT LINE OF SIGHT (Tx Antenna to Rx Antenna), and 80%+ signal strength.

SIZE / WEIGHT
Length: 9.4” (240mm)
Width: 6.7” (170mm)
Vertical Height: 2.2” (56.5mm)
Weight: 4.6 lbs. (2.1kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
3W Max Power Consumption
14°F (-10°C) to 113°F (45°C)

APPROVALS / RATINGS
CE | IP65

INCLUDED ACCESSORIES
(1) 3pin IP to 3pin Edison Power Cable
(1) 3pin IP to 5pin DMX Input Cable
(1) 3pin IP to 5pin DMX Output Cable
(1) Clamp Mounting Bracket & (2) Screws

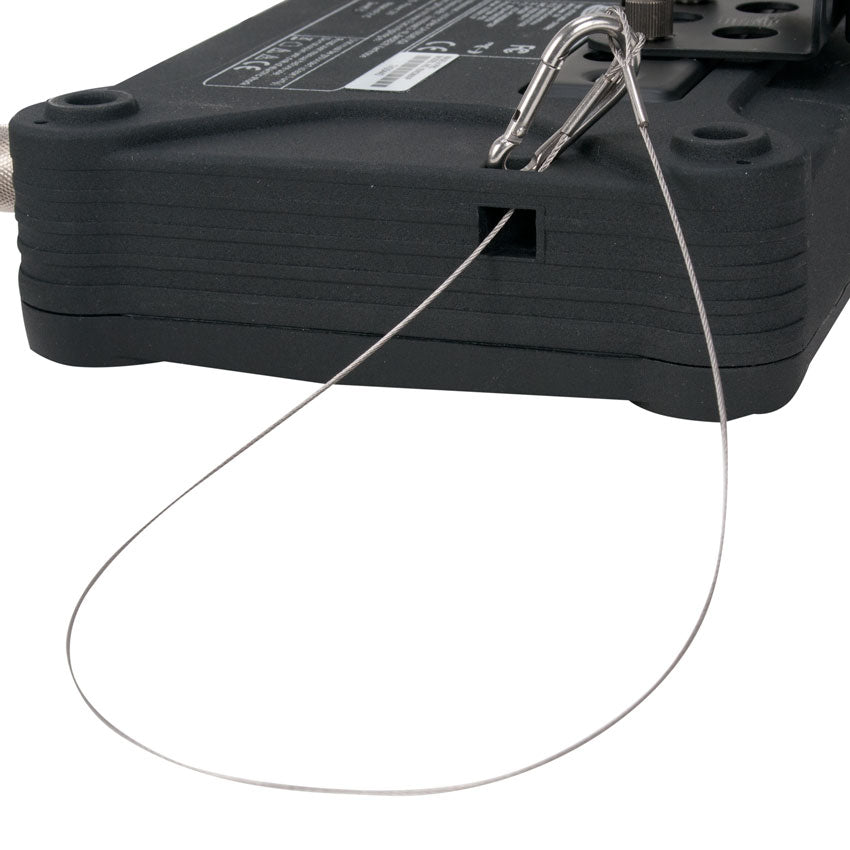

(1) Safety Cable

OPTIONAL ACCESSORIES:

804090301390 - 3pin IP to Edison Plug Power Cable

804090301370 - 10 ft. (3m) 3pin IP to 3pin IP Power Extension Cable

804090301770 - 32.8 ft. (10m) 3pin IP to 3pin IP Power Extension Cable

804090301470 - 10 ft. (3m) 3pin Female DMX to 3pin Male IP Data Output Cable

804090301480 - 10 ft. (3m) 3pin Male DMX to 3pin Female IP Data Input Cable

804090301380 - 10 ft. (3m) 3pin Female to 3pin Male IP Data Extension Cable

804090301780 - 32.8 ft. (10m) 3pin Female to 3pin Male IP Data Extension Cable



Specifications and documentation subject to chance without notice.
