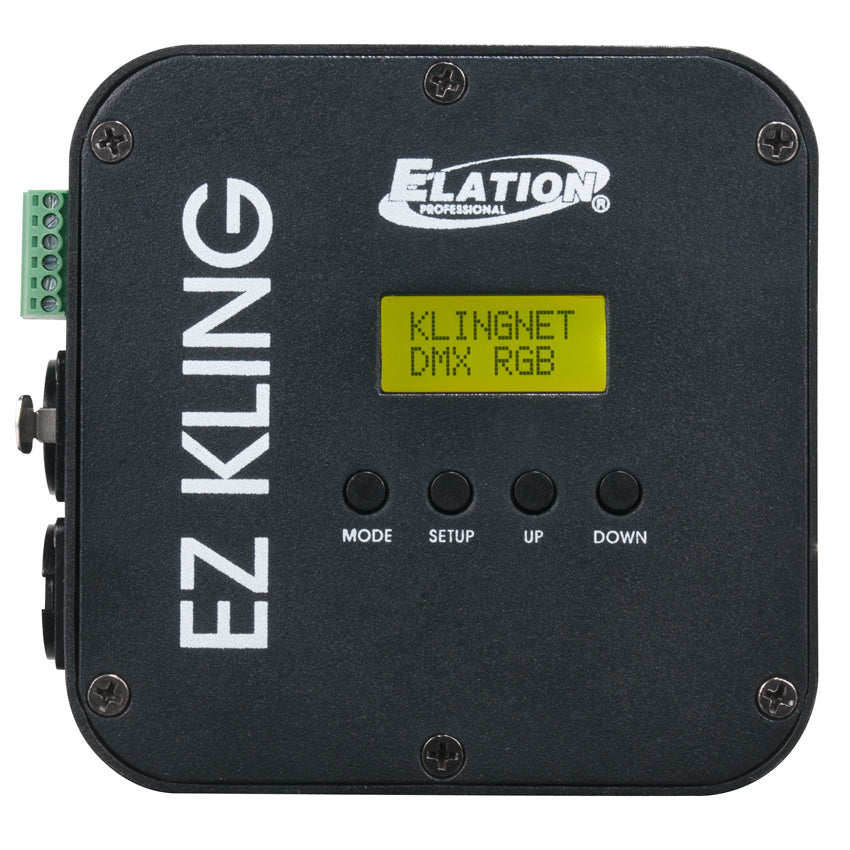

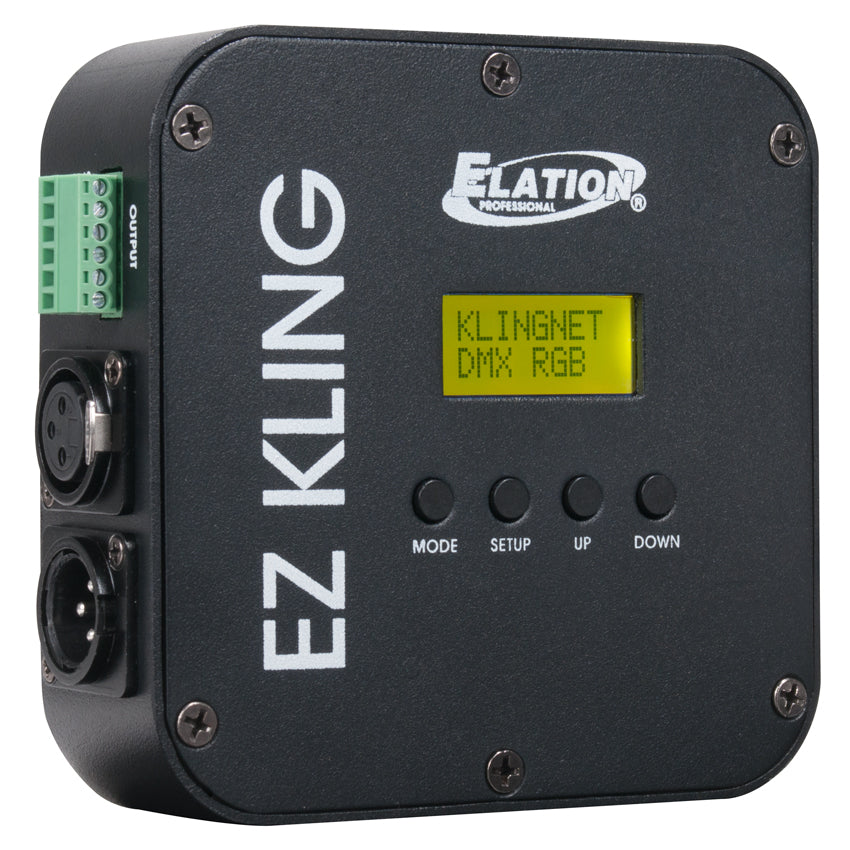

EZ KLING

Features

Ideal for use with Elation RGB LED Flex Pixel Tape™ and RGBW/RGBA LED Pixel controllable DMX lighting fixtures
Drive up to 600 Flex Pixel RGB pixels using KlingNet™ control protocol
Drive up to 170 RGB Pixels via Art-Net/sACN control protocol
Drive up to 128 RGBW/RGBA Pixels via Art-net/sACN control protocol
Magnet on the back panel for easy metal surface mounting

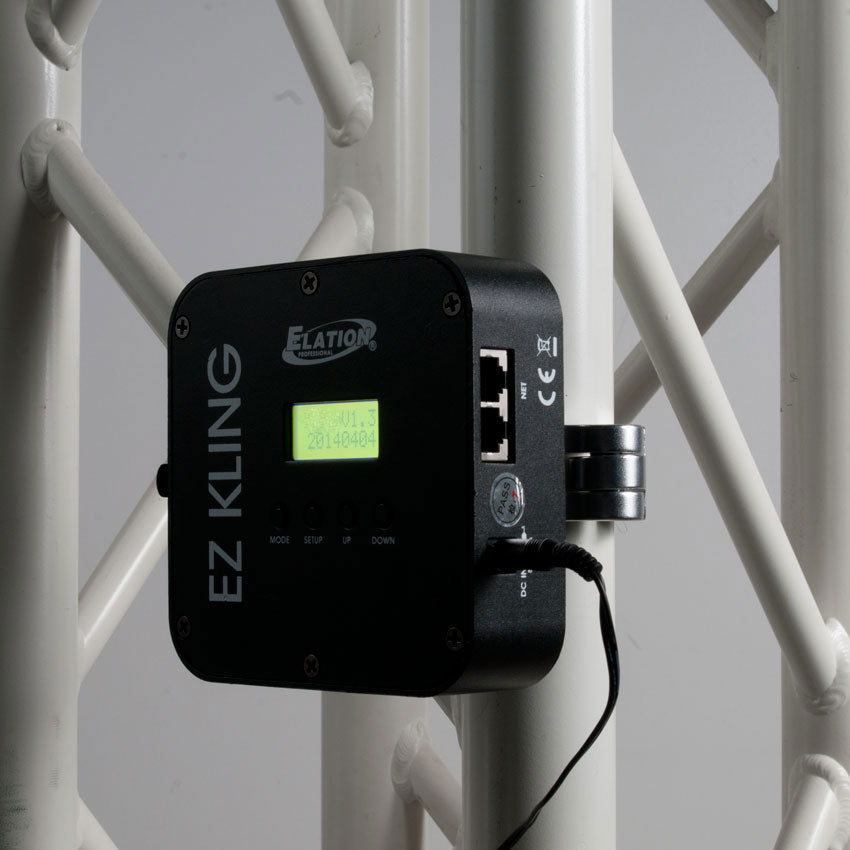

Clamp/Truss Mounting with Mini Omega Bracket

Resources

Specifications Sheet

User Manual

Dimensional Drawing

Specifications

CONTROL / CONNECTIONS
DMX 512, KlingNet, Art-Net Multicast and Unicast, sACN
(4) Button Control Panel and LCD Menu Display and Lockout Feature

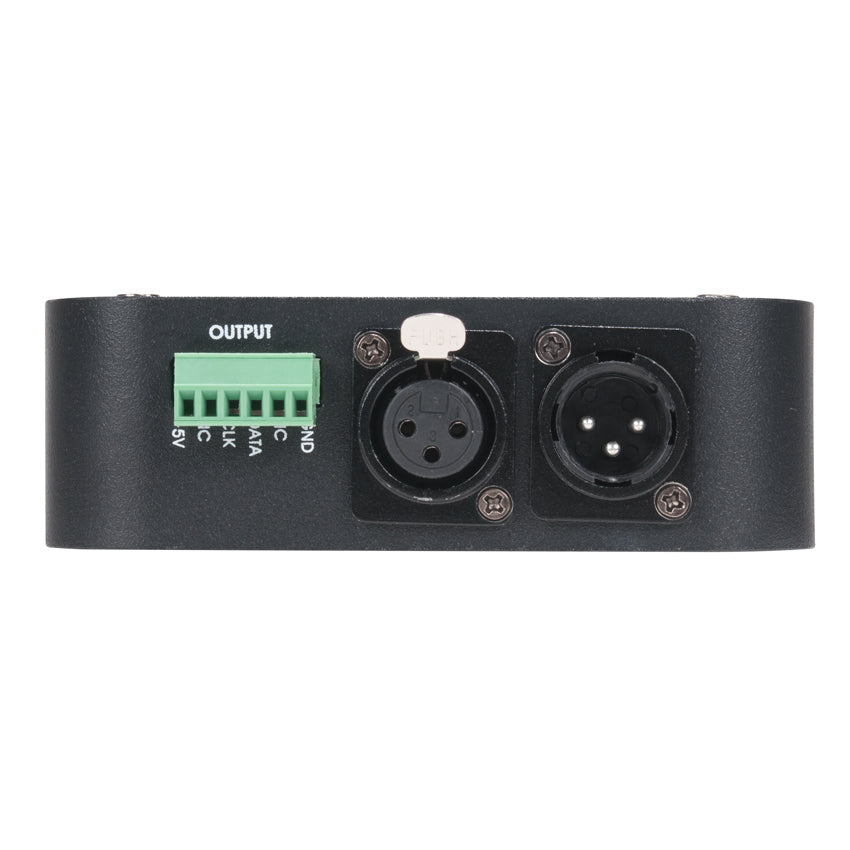

(6) Bare Wire Terminal Block
(1) 3pin DMX Input / Output

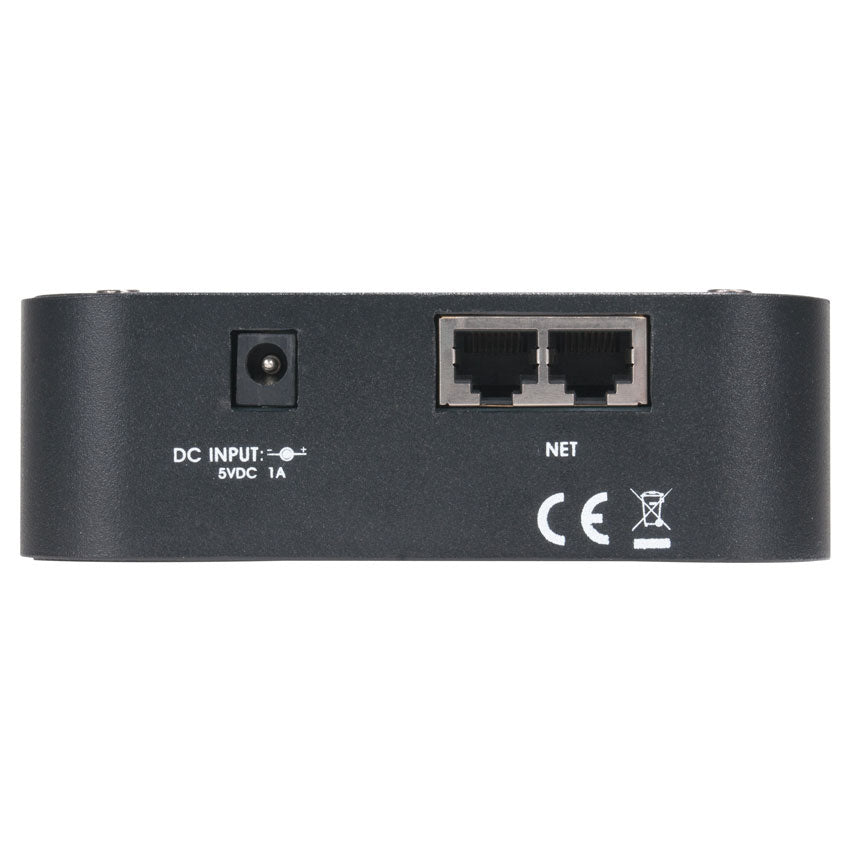

(2) RJ45 Bilateral CAT5e Ports
(1) 5VDC Power Supply Input

SIZE / WEIGHT
Length: 5.31” (134.9mm)
Width: 4.92” (125mm)
Vertical Height: 1.61” (40.9mm)
Weight: 0.95 lbs. (0.43kg)

ELECTRICAL
5VDC
5W Max Power Consumption

APPROVALS / RATINGS
CE | cETLus

INCLUDED ITEMS
5VDC Power Supply
Flex Pixel Tape Jumper First Cable
Back Panel Magnet for Easy Metal Surface Mounting
Mini Omega Bracket For Clamp/Truss Mounting


Specifications and documentation subject to change without notice.
