EZ6

Features

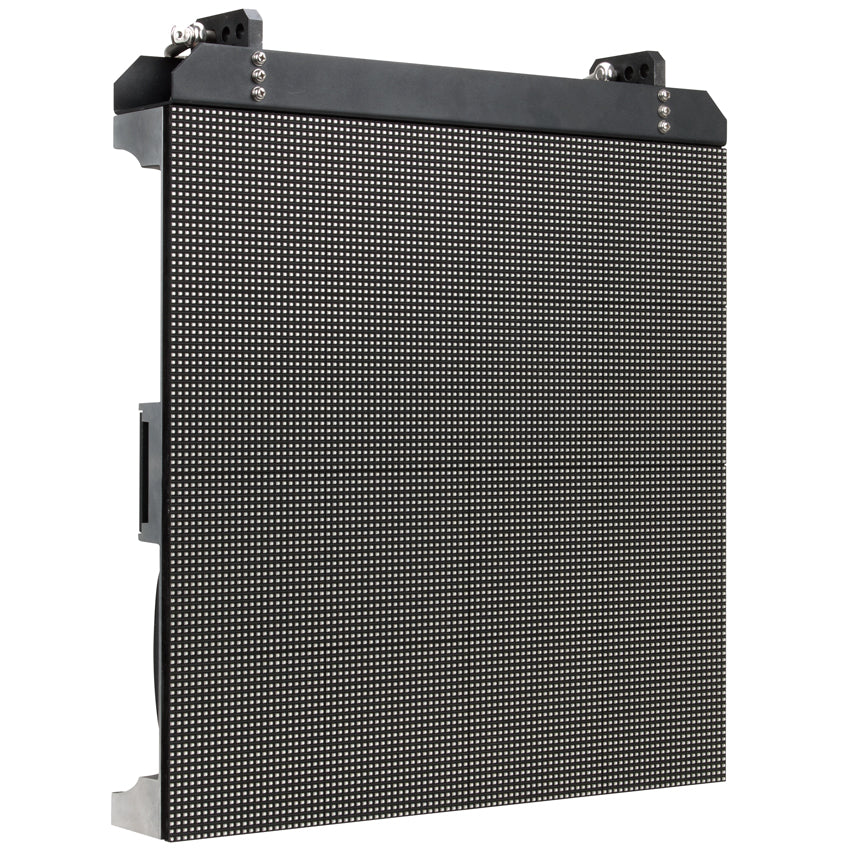

ELATION Lighting introduces the next breakthrough in its expanding line of affordable LED displays… the EZ6 indoor LED video panel. EZ6 is a high resolution, 6mm pixel pitch, LED video panel. It is constructed of a die-cast aluminum frame with high precision CNC machining techniques. Because of its bright output and modular, light and easy to handle body it is ideal for permanent installations where hanging loads for screens are limited but brightness is required.

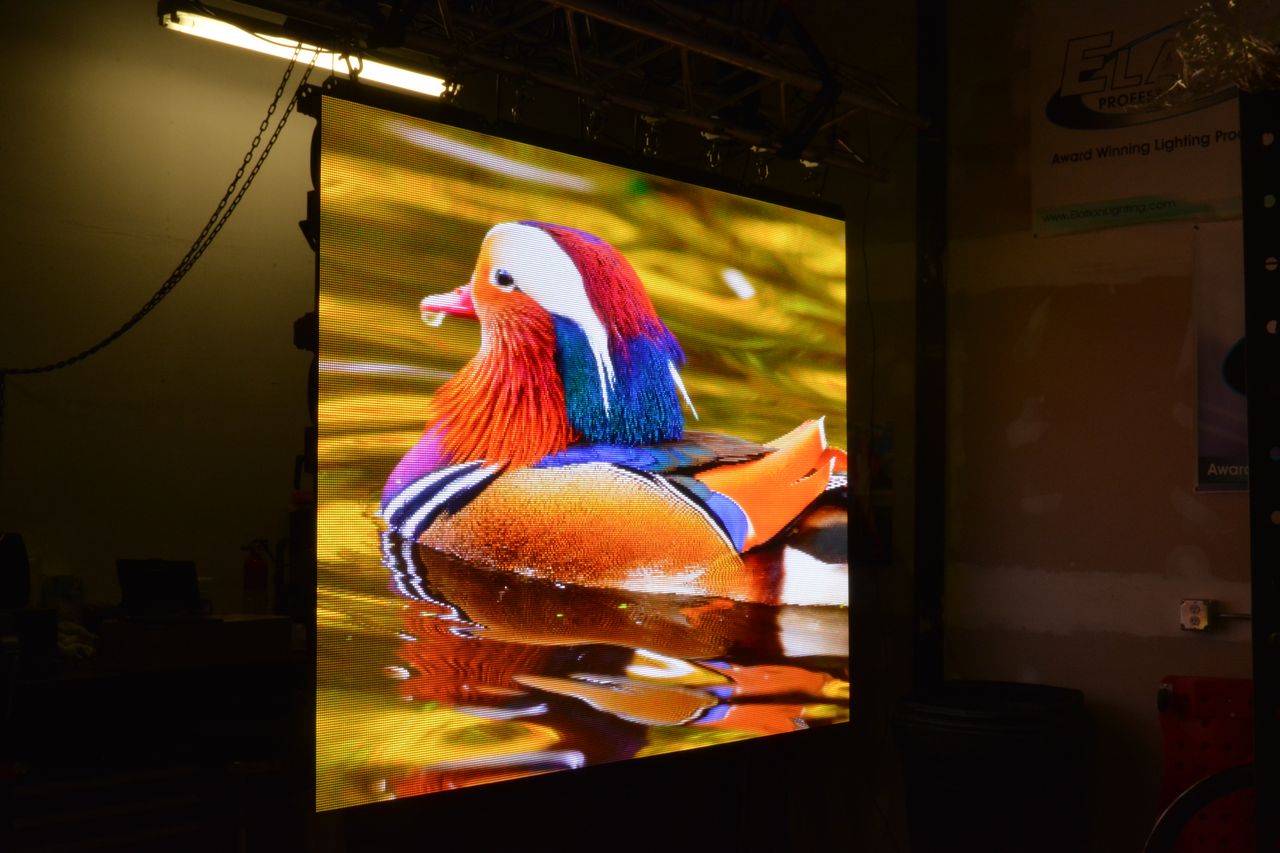

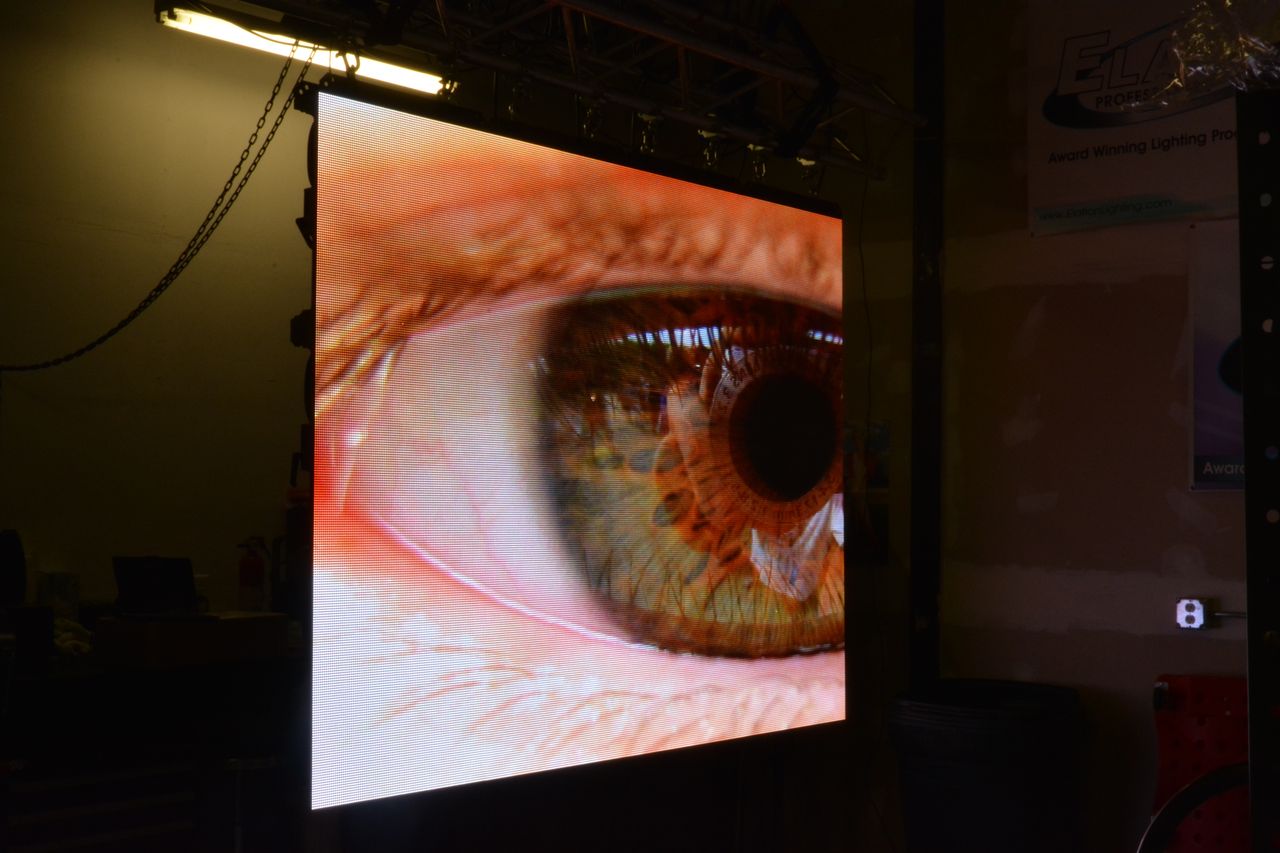

 The EZ6 is ideal for use in halls, theatres, stages, clubs or any indoor public space where a high resolution / reliable video wall is required.

 Product Features:

• High resolution, high pixel density, produce high definition video

• Uniform color and high contrast, ensure a clear and sharp picture

• High precision die-casting aluminum frame, produces a flat and seamless video display

• Fan-less design with good heat dissipation

• Light and slim panel, makes it easier to handle and transport

• High stability and reliability, prolong lifespan of the display

Resources

User Manual

Specifications

 Technical Specifications:

• Pixel pitch: 6mm

• 27,777 pixel density (pixel/m2)

• LEDs: Nationstar, RGB

• Dynamic scan, constant current driving mode

• Brightness: 1,800 NITS

• Viewing angle: H:120° ; V:120°

• Minimum Viewing Distance 16.5' (5M)

• 14 bit gray scale

• Brightness adjustment: 256 levels

• Refresh rate: 960 Hz

• Calibration: Supported by Nova Star

• Tile size: 22.7” x 22.7” (576mm x 576mm)

• Tile resolution: 96 pixels x 96 pixels

• Tile weight: 24lbs. (11kgs)

• IP32

• Average power consumption: 200 W/m2

• Max power consumption: 590 W/m2

• 50,000 hours LED life span

• cETLus approved


 OPTIONAL ACCESSORIES:

 6-PACK ROAD CASE (click for more info)



 Specifications and documentation subject to change without notice.
