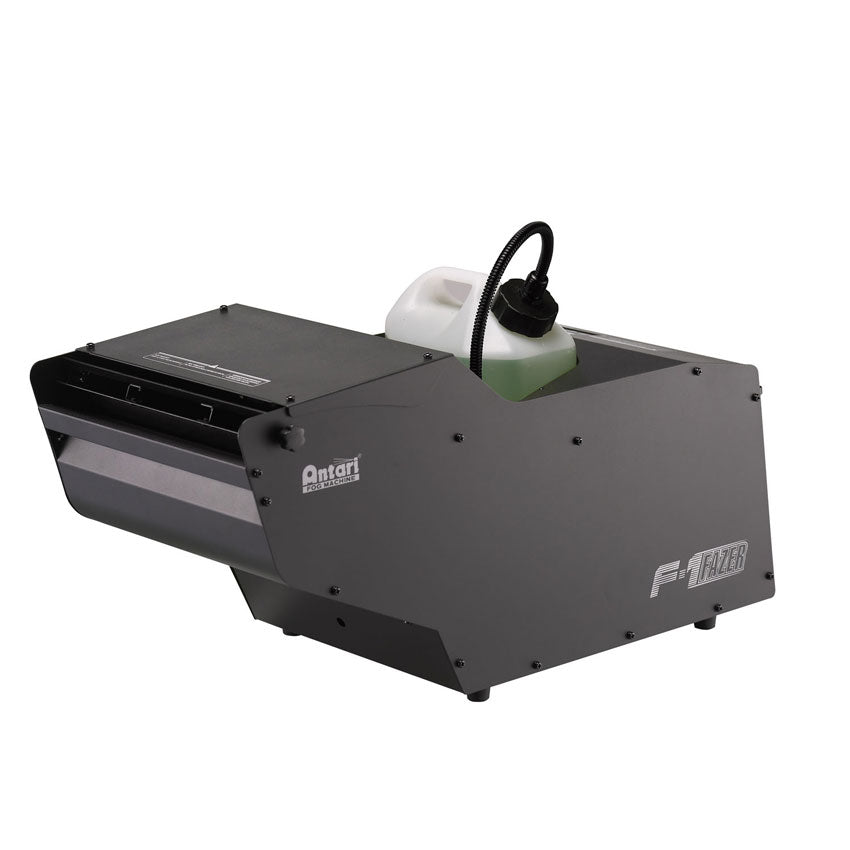

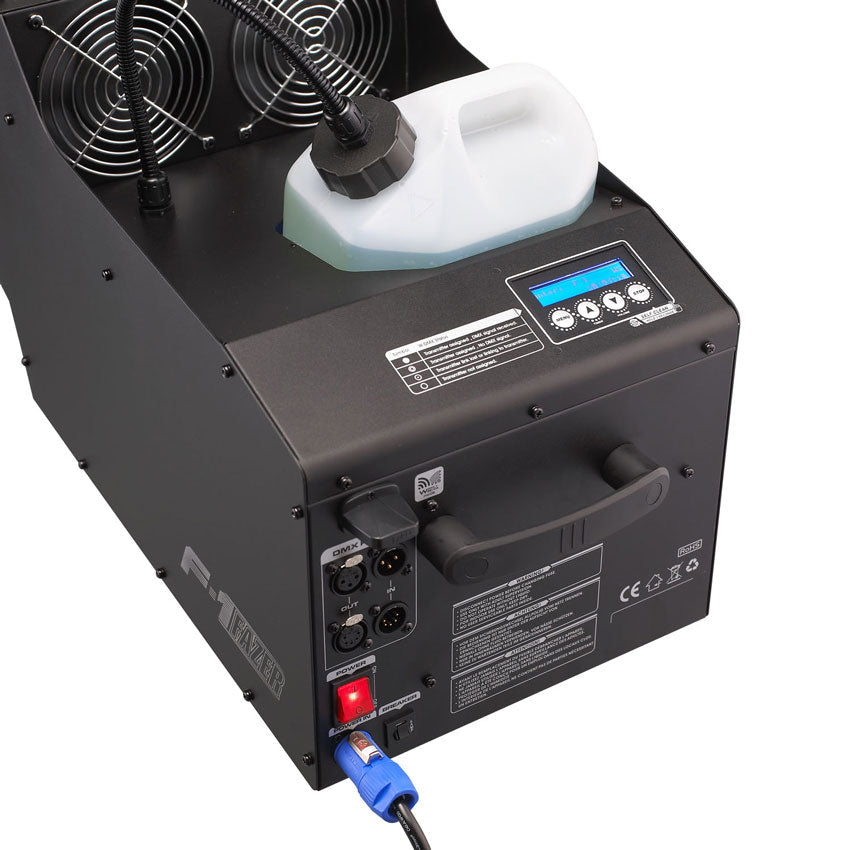

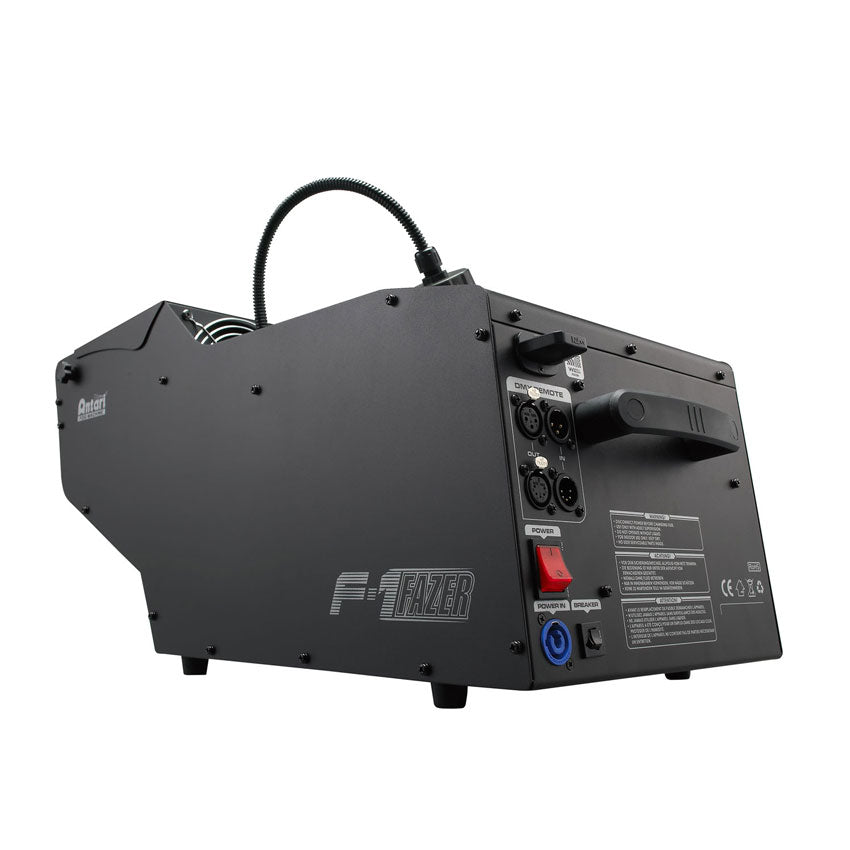

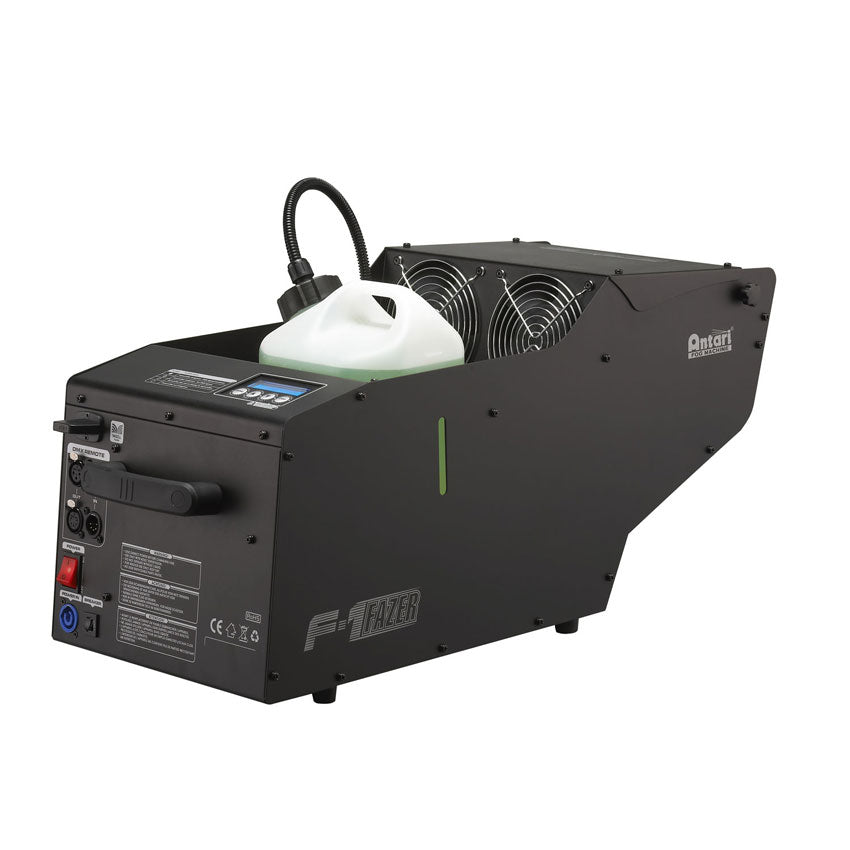

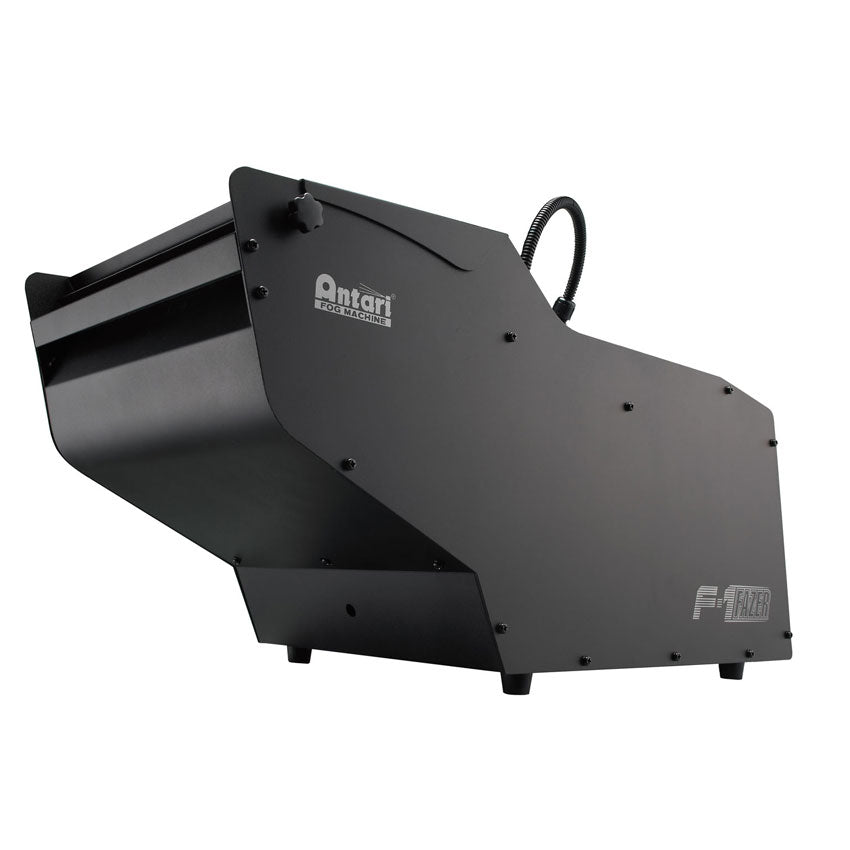

F-1 PRO Touring Fazer

Features

The Antari F-1 Fazer™ is a new improved design based on the X-310Pro model including all the same sophisticated features such as an aircraft grade aluminum cast heater, super quiet high quality pump, precision PCB design, and controllable twin fans. The high efficiency heater technology ensures low fluid consumption and continuous fogging.High precision fan control can be achieved due to the durable twin fans. Quality ball-bearings fans, provides silent operation, making the Antari F-1 Fazer™ ideal for use at noise sensitive events. Minimal residue ensures long term reliability of sensitive lighting equipment, which is a must have for stage and studio professionals. Optional Wireless Remote and Internal W-DMX add on kits available.

Resources

Specifications Sheet

CAD Drawing

User Manual

Specifications

SPECIFICATIONS

 Power: AC120V / 60Hz

 Heater: approx. 1,000W

 Output: approx. 10,000 Cu.Ft / Min. (maximum)

 Heat Up Time: approx. 10 Min.

 Liquid Consumption Rate: 8.5 ml/per minute

 Tank Capacity: approx. 2.4 Liter

 Weight: 14.1 kg

 Dimensions (LxWxH): 608mm x 275mm x 286mm

OPTIONAL ACCESSORIES

 Wireless Remote Control Add On Kit - SKU# W-1TRA

 Wireless DMX Add On Kit - SKU# W-DMX-PCBR


 RECOMMENDED ANTARI™ FOG FLUID

 FLG (click for more info)



 Specifications and documentation subject to change without notice.
