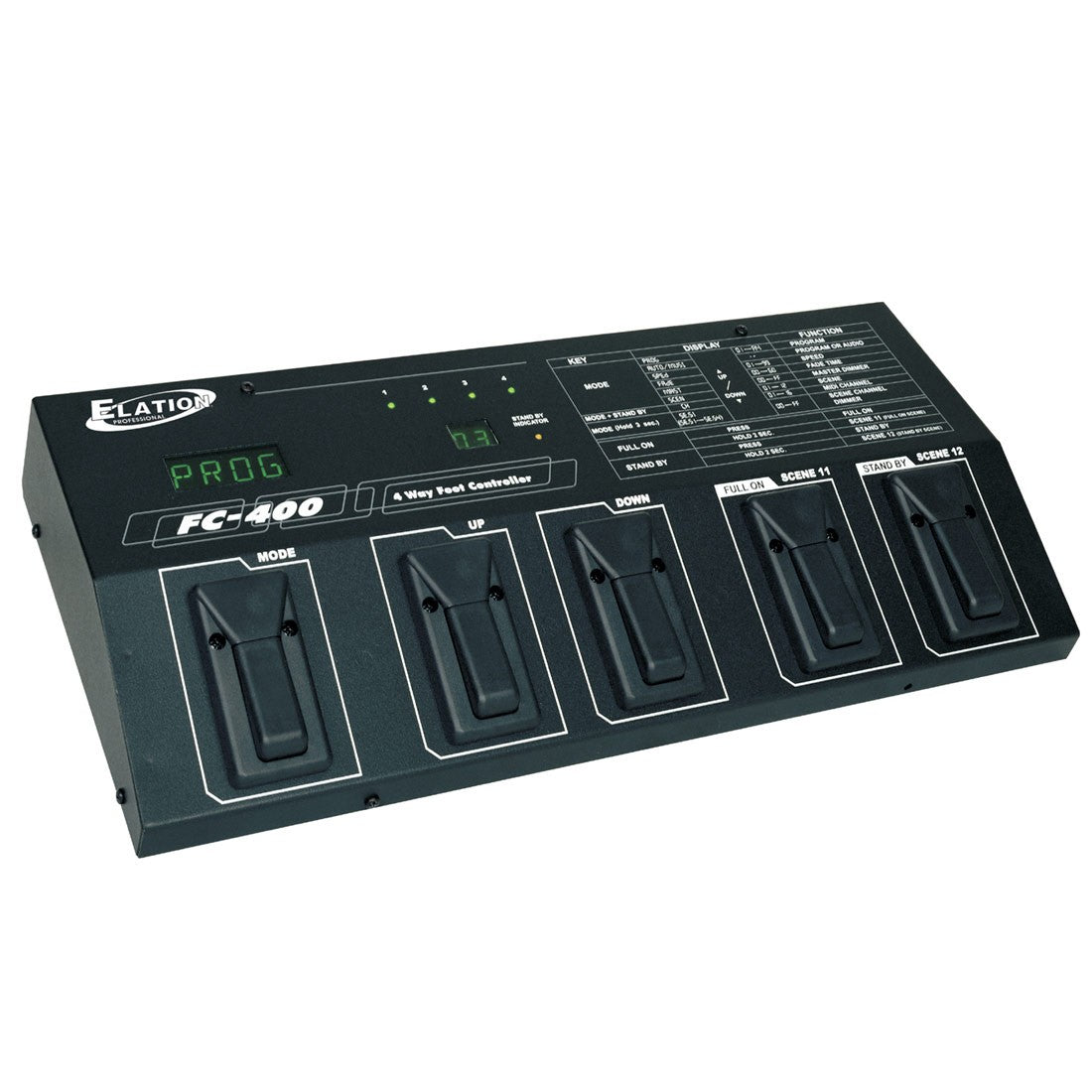

FC-400

Features

Resources

User Manual

Specifications

• 4 channel DMX Foot Controller

• 20 built in Chases

• Programmable Flash, Full-On, Black Out, Chase Speed, Fade Time (0-60 sec.)

• Big & Bright LCD displays selected Chases and Scenes

• Four LED’s display channel activity

• One 3 pin DMX XLR output

• Midi output

• Audio input for music sync functions

• Use in conjunction with the Elation; DP-DMX20L, CYBER PAK, UNI PAK, DP-DMX4B or DP-640

• Full-On function for 100% momentary output to all 4 channels

• Stand By function with indicator LED

• Power Input: 120V ~ 60Hz

• Maximum Load: 5A per channel / 16A total

• Dimensions: 2.5”L x 17.25”W x 7.5”H

• Weight: 8 lbs
