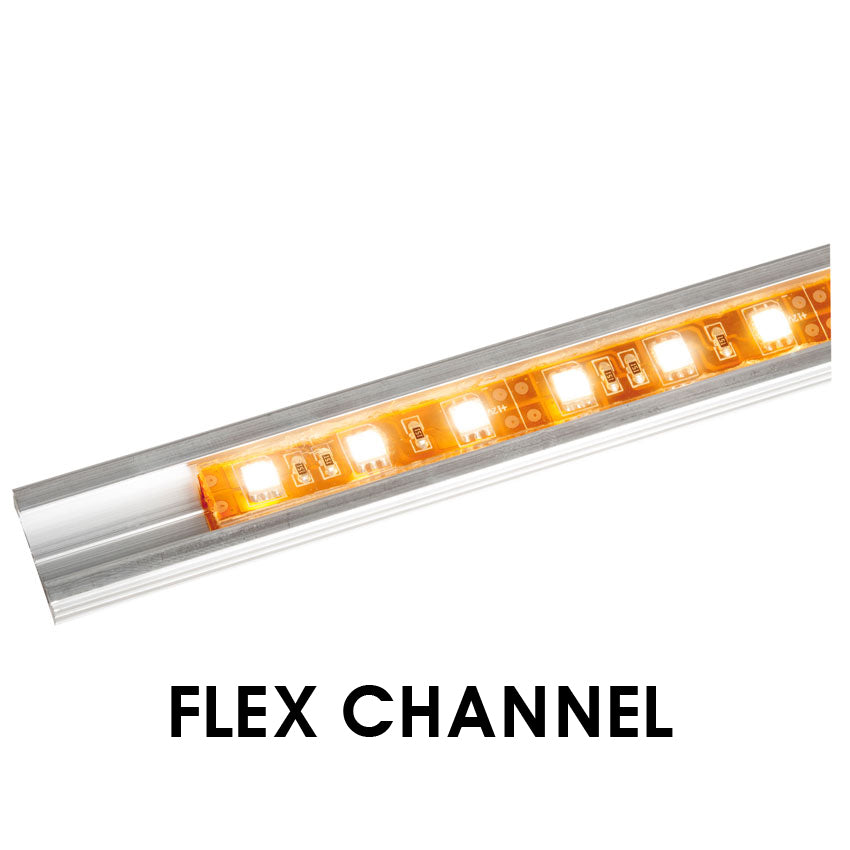

FLEX CHANNEL

Features

Rugged Aluminum
Suitable for Wet Locations
Compatible with all Elation FLEX Tape™ products
Optional UV Stabilized Lens Covers and 45° Bracket Accessories Available

Resources

Specifications Sheet

Specifications

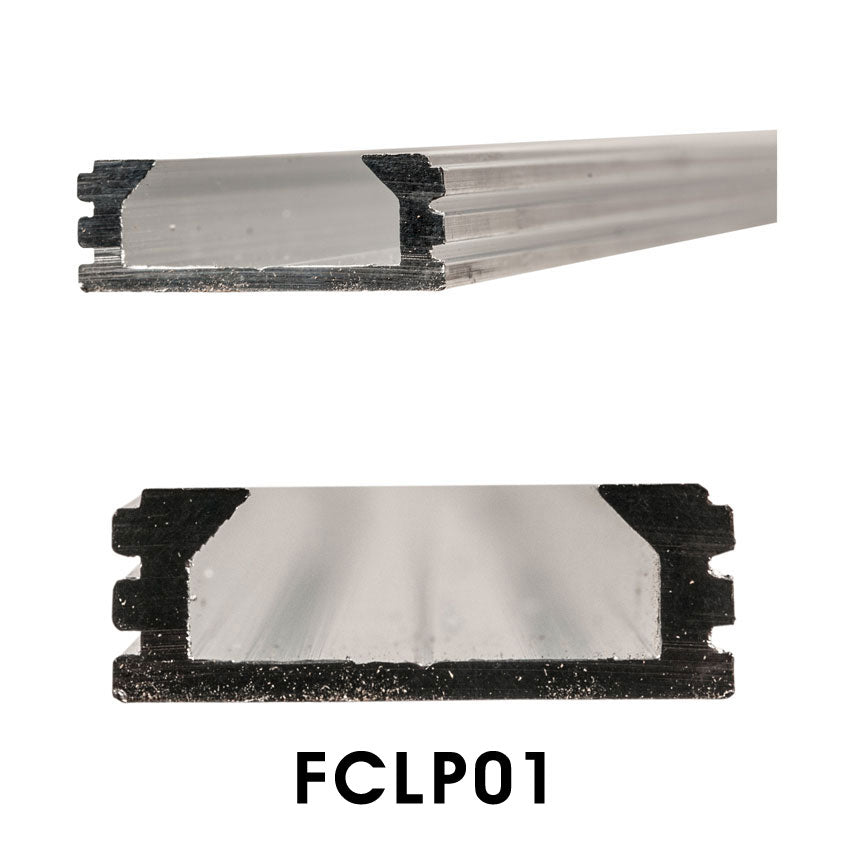

FLEX CHANNEL LOW PROFILE
MATERIAL / RATING
Aluminum
Wet Locations

DIMENSIONS
Length: 4.0” (101.6mm)
Width: 0.75” (19.1mm)
Height: 0.28” (7.1mm)

ORDER CODES
FCLP01 Flex Channel Low Profile
FCM045 Optional 45° Bracket and Screws (Set of 4)

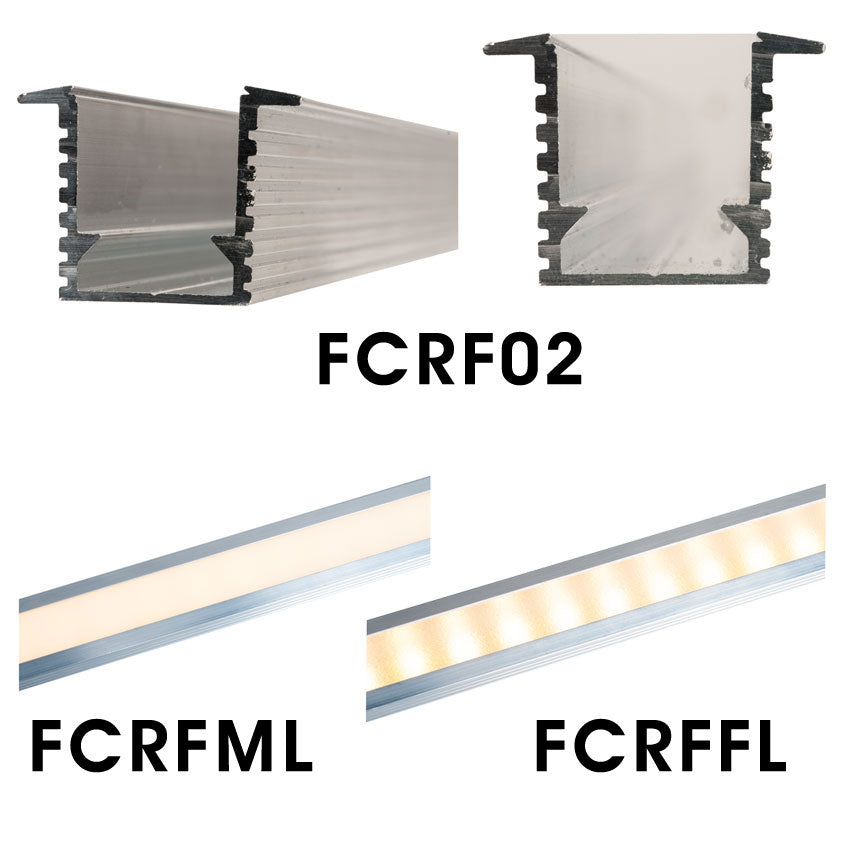

FLEX CHANNEL RECESSED
MATERIAL / RATING
Aluminum Channel + Polycarbonate Lens
Wet Locations (both)

DIMENSIONS
Length: 4.0” (101.6mm)
Width: 1.14” (29.0mm)
Height: 0.86” (21.8mm)

ORDER CODES
FCRF02 Flex Channel Recessed
FCRFML Optional Opal Lens (UV Stabilized)
FCRFFL Optional Frosted Lens (UV Stabilized)

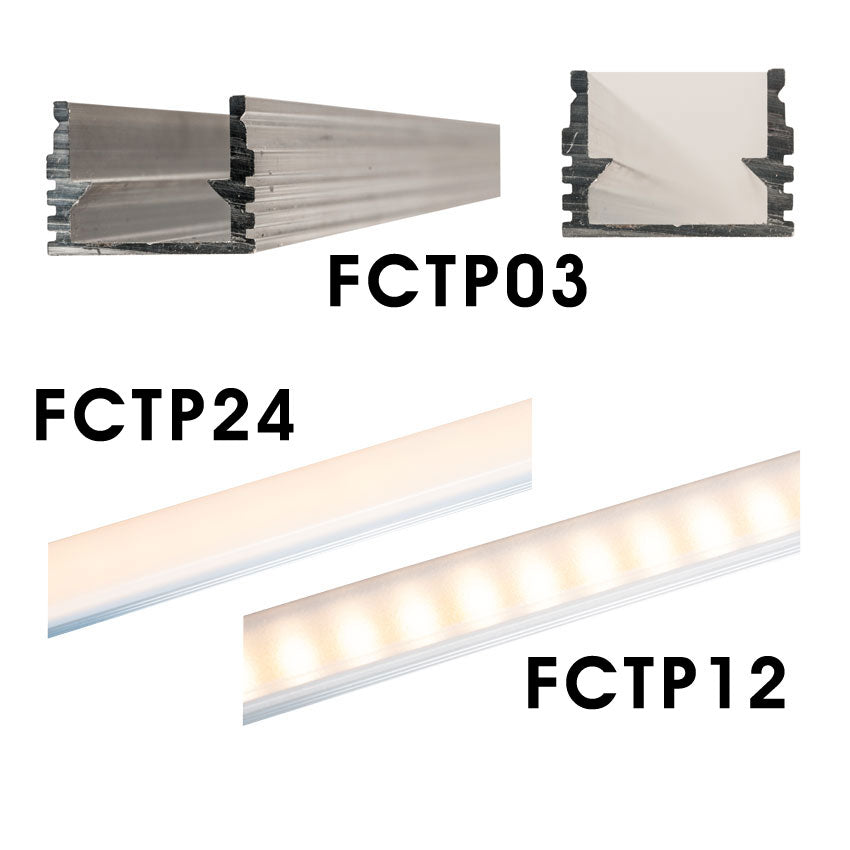

FLEX CHANNEL TALL PROFILE
MATERIAL / RATING
Aluminum Channel + Polycarbonate Lens
Wet Locations (both)

DIMENSIONS
Length: 4.0” (101.6mm)
Width: 0.76” (19.3mm)
Height: 0.5” (12.7mm)

ORDER CODES
FCTP03 Flex Channel Tall Profile
FCM045 Optional 45° Bracket and Screws (Set of 4)
FCTP24 Optional Opal Lens (UV Stabilized)
FCTP12 Optional Frosted Lens (UV Stabilized)


Specifications and documentation subject to change without notice.
