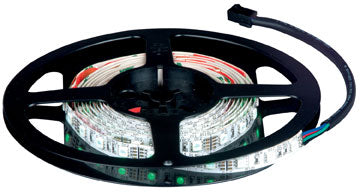

FLEX LED Tape

Features

ELATION FLEXLED TAPE is a very thin and flexible LED circuit strip tape because the back of the strip uses 3M adhesive glue to tape the LED strip anywhere you need it. It can be cut every 2” and put back together using simple soldering techniques. It comes available in RGB and Single Color versions. High output, low heat and easy installation make this product the ideal product for a variety of applications.

 FLEX RGB tape
 The RGB version has been prefabricated in a 10’ spool with 60 x 2” black circuit strips holding 3 SMD LED’S each for a total of 180 120° SMD LED’s.
 You will need a 12V power supply and a control option to make the tapes work. The Power supplies offered are UL and CSA approved. There are two options available to operate the FLEX RGB tape.

 Option 1
 An infrared wireless controller system to change colors which allows you to select 16 static colors or run color fades plus 2 intensity settings.

 Option 2
 A DMX driver that will give you 3 DMX channels and allow you to use the DMX controller of your choice. This will allow you to create specific colors, 0-100% dimming and program intensity levels of your choice. Needed items Elar Driver 1 and S-150-12.

 FLEX B,G,R,Y,WW & CW single color tapes
 The single color tapes are prefabricated in 20'''' Spools with 120 x 2” black circuit strips holding 3 SMD LED’S each for a total of 360 120° SMD LED’s.
 You will need a 12V power supply and a control option to make the tapes work. The Power supplies offered are UL and CSA approved.  There are two options available to operate the FLEX single color tape.

 Option 1
 A simple 12V Power supply that will power on the tape. You will need some type of power interrupter switch them on and off.

 Option 2
 A DMX driver that will give you 3 DMX channels and allow you to use the DMX controller of your choice. This will allow you 0-100% dimming and program intensity levels of your choice.

 FLEX RGB TAPE ORDERING DETAILS
• FLEX RGB: 10’ RGB Flex tape roll
• FLEX EC20: CM 20cm extension (8.5")
• FLEX EC3M: 1 meter extension (3’3”)
• FLEX RGBC: Control Box
• WR LED: Wireless Remote
• FLEX RGBA: Amplifier

 FLEX SINGLE COLOR DETAILS
• FLEX B: 20’ Blue Flex tape roll
• FLEX G: 20’ Green Flex tape roll
• FLEX R: 20’ Red Flex tape roll
• FLEX Y: 20’ Yellow Flex tape roll
• FLEX WW: 20’ Warm white Flex tape roll
• FLEX CW: 20’ Cool white Flex tape roll

 POWER SUPPLIES
• FLEX PSU4A (DC-12V – 4AMP – 48w)
• 1 X FLEX RBG tape
• 1 X FLEX Single color tape


• S-150-12 (DC-12V – 12.5AMP – 150w)

• 3 X FLEX RBG tape (Connection must be Parallel)
• 6 X FLEX Single color tape (Connection must be Parallel)

Specifications

SPECIFICATIONS
• Avg. Rated Life – 30,000hrs
• LED Spacing – 16.6mm (.65”)
• Dimensions – 11.5mm (.45”) W x .15mm (.005”) D
• Operating Temperature - -40°c to 80°c
• Tape adhesive temperatures - -30°c to 90°c
• Total power consumption of the FLEX RGB tape is 43-watts.
• Total power consumption of the FLEX Single color tape is 29 watts.
