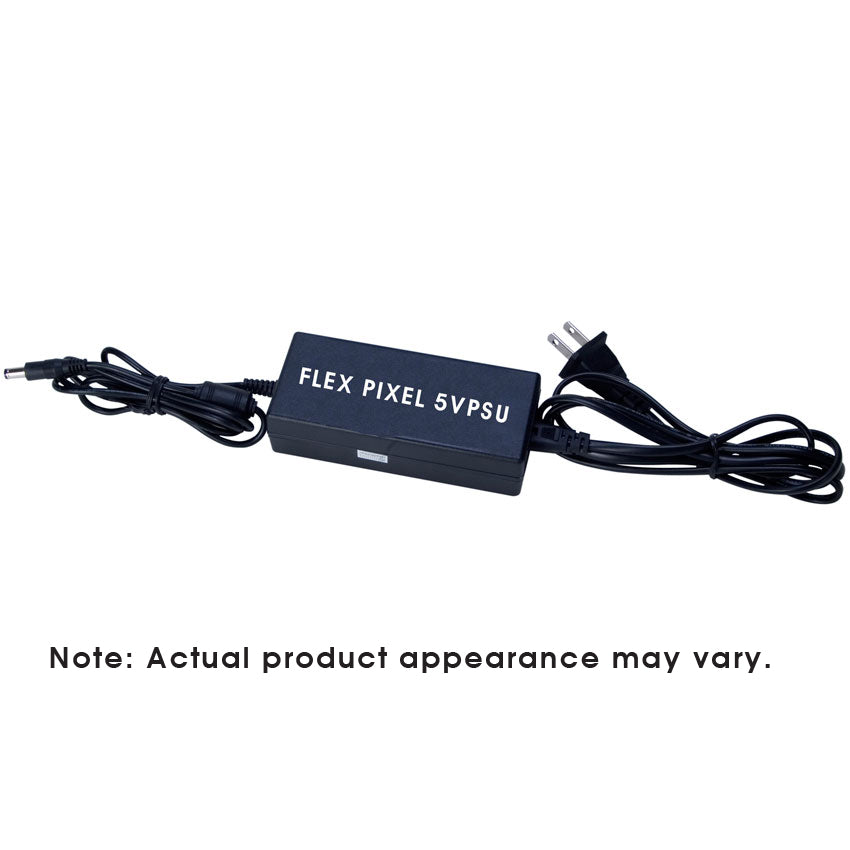

FLEX PIXEL 5VPSU

Features

The FLEX PIXEL 5VPSU™ is a UL® listed multi-voltage auto switching 5volt / 5amp (100-240v 50/60Hz) external power supply that supports Elation’s FLEX PIXEL Seriesproducts including LED tapes, drivers, and the IRC remote control device. It features a standard 0.22” (5.5mm) DC barrel connector on one end, a standard 2pin electrical plug on the other end.

 FEATURES
 UL® Listed
 Multi-Voltage Auto Switching

Resources

Specifications Sheet

Specifications

CONNECTIONS
 Power IN Cable: 2pin Electrical Plug (4 ft. / 1.2m)
 Power Out Cable: DC 0.22” (5.5mm) Barrel Connector (4 ft. / 1.2m)

 SIZE / WEIGHT**
 Length: 3.24” (82.3mm)
 Width: 1.23” (31.2mm)
 Height: 1.6” (40.6mm)
 Weight: 0.5 lbs. (0.2kg)
 **Note: Actual product may vary.

 ELECTRICAL
 Power Input: 100-24VDC 50/60Hz
 Power Output: 5V - 5A

 APPROVALS
 UL® Listed


 Specifications are instructions subject to change without notice.
