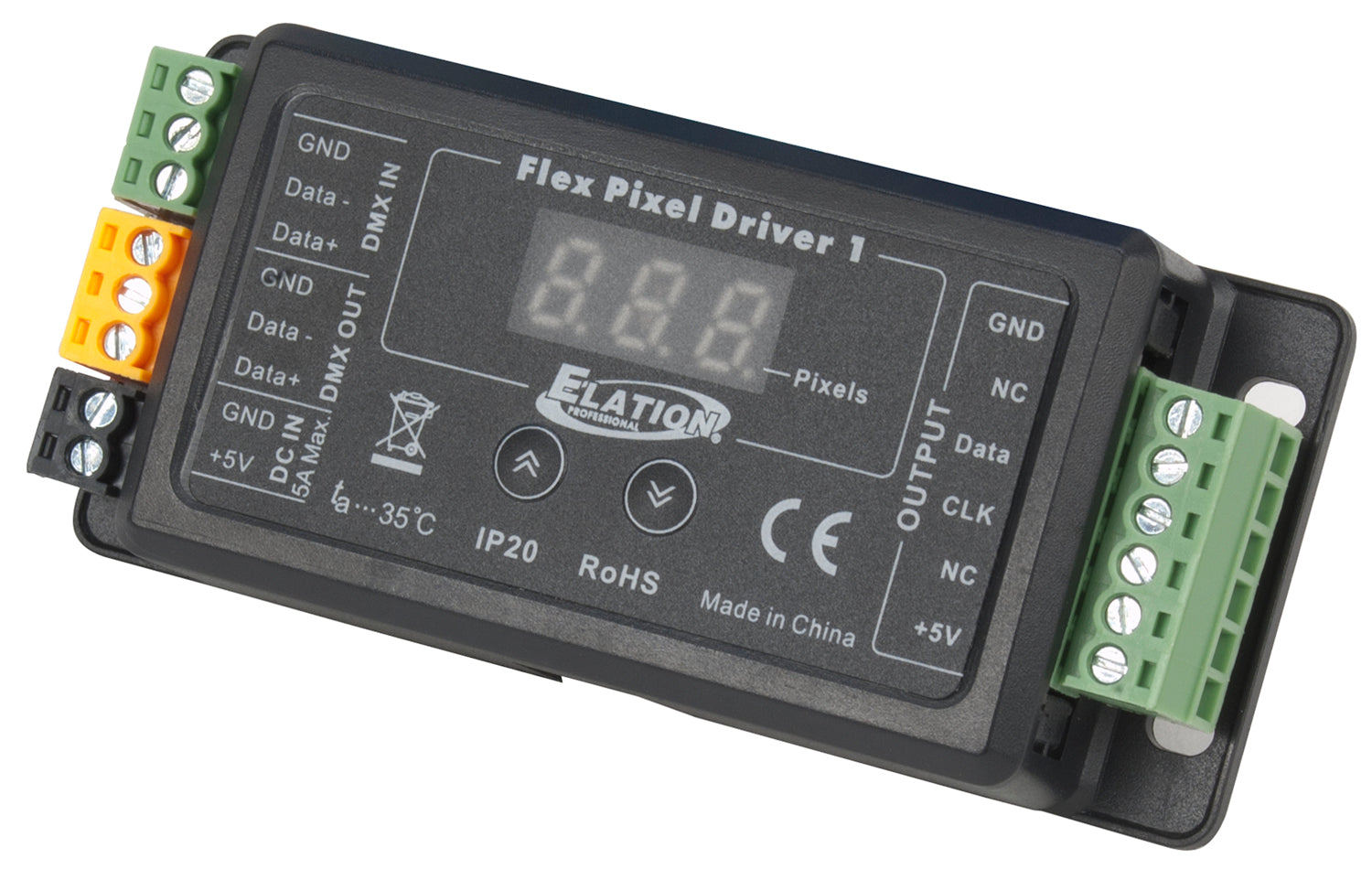

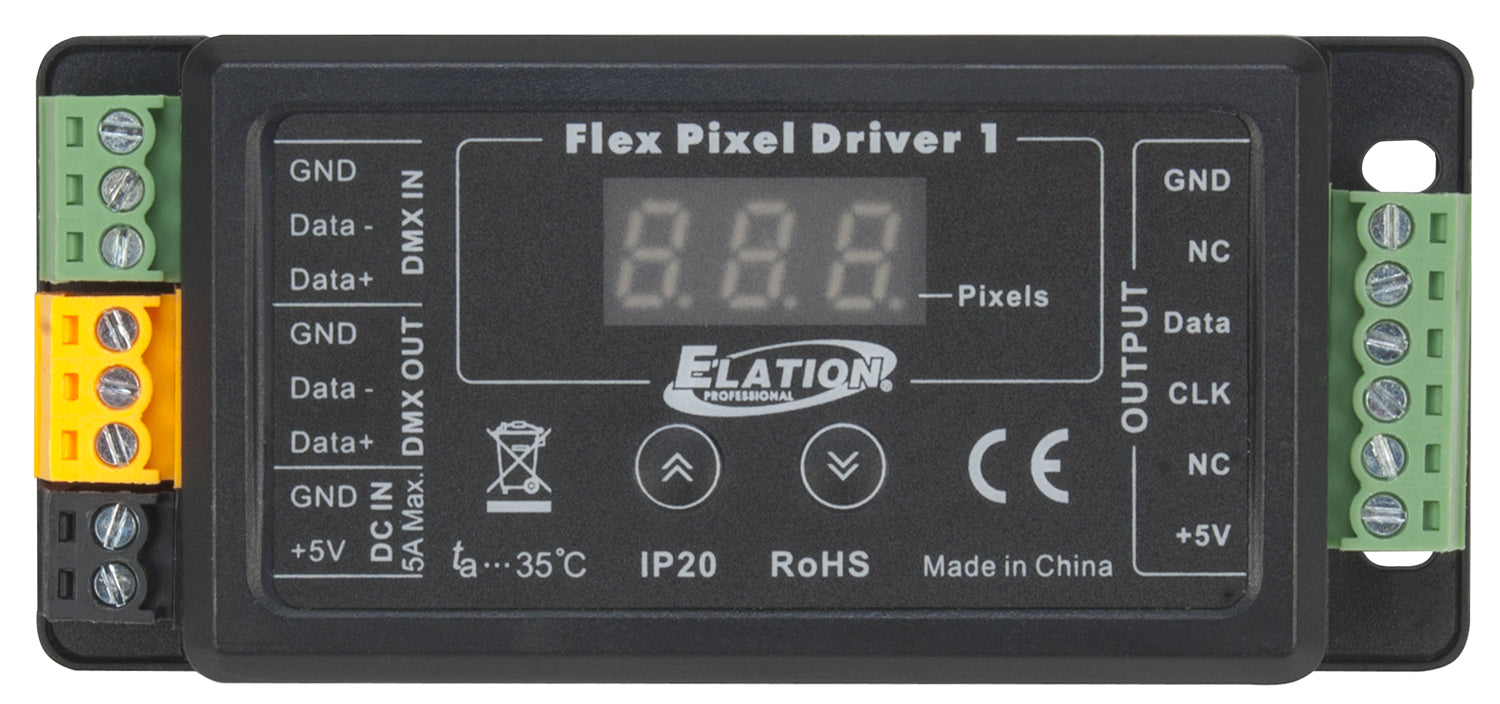

FLEX PIXEL DRIVER 1

Features

Professional Dedicated 5VDC LED Tape Driver
Supports Up To 144 Total Pixels / 432 DMX Channels
2-Button LED Control Display
6pin Terminal Block LED Tape Output
3pin Terminal Block DMX In/Out
2pin Terminal Block Power In

Resources

Specifications Sheet

Dimensional Drawing

CAD Drawing

Specifications

CONTROL / CONNECTIONS
Up To 144 Pixels Max
Up To 432 DMX Channels
DMX IN via 3pin Terminal Block
DMX OUT via 3pin Terminal Block
LED Tape Output via 6pin Terminal Block
POWER IN via 2pin Terminal Block

SIZE / WEIGHT
Length: 3.5” (90mm)
Width: 1.6” (40mm)
Height: 0.8” (20mm)
Weight: 0.12 lbs. (0.055kg)

APPROVALS
CE | cETLus | RoHs | IP20

INCLUDED ACCESSORIES
(1) Flex Pixel Tape Jumper First Cable
(1) Flex Pixel Tape Power Cable


Specifications and documentation subject to change without notice.
