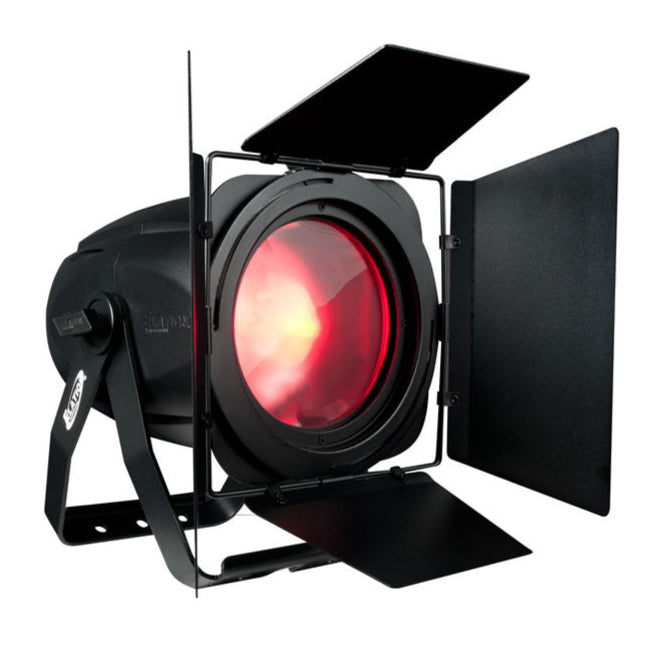

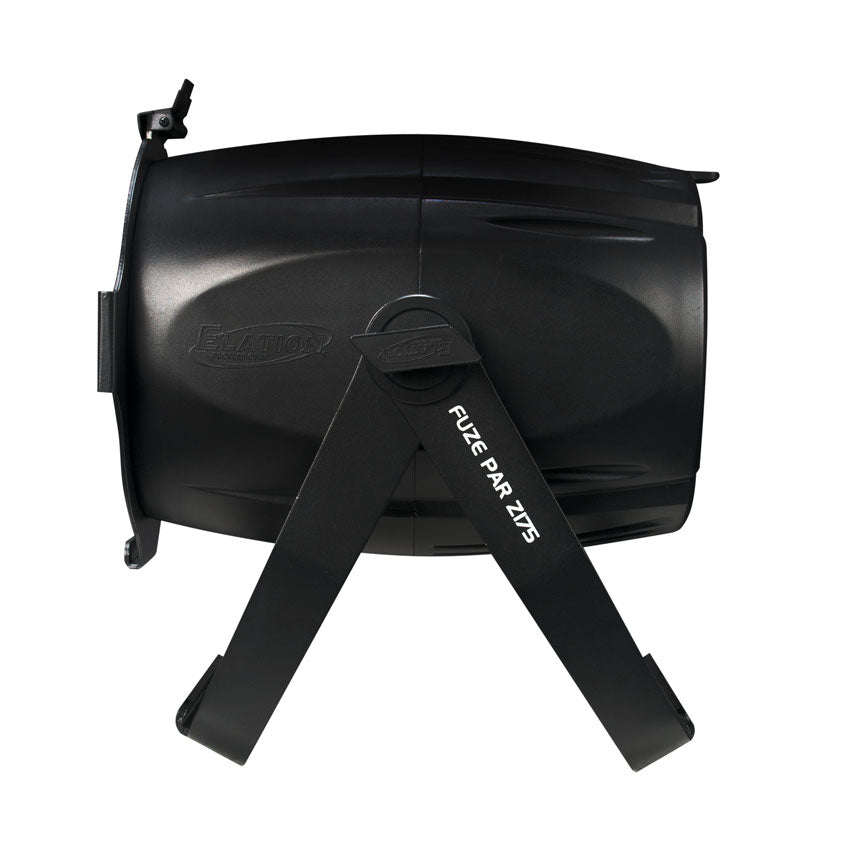

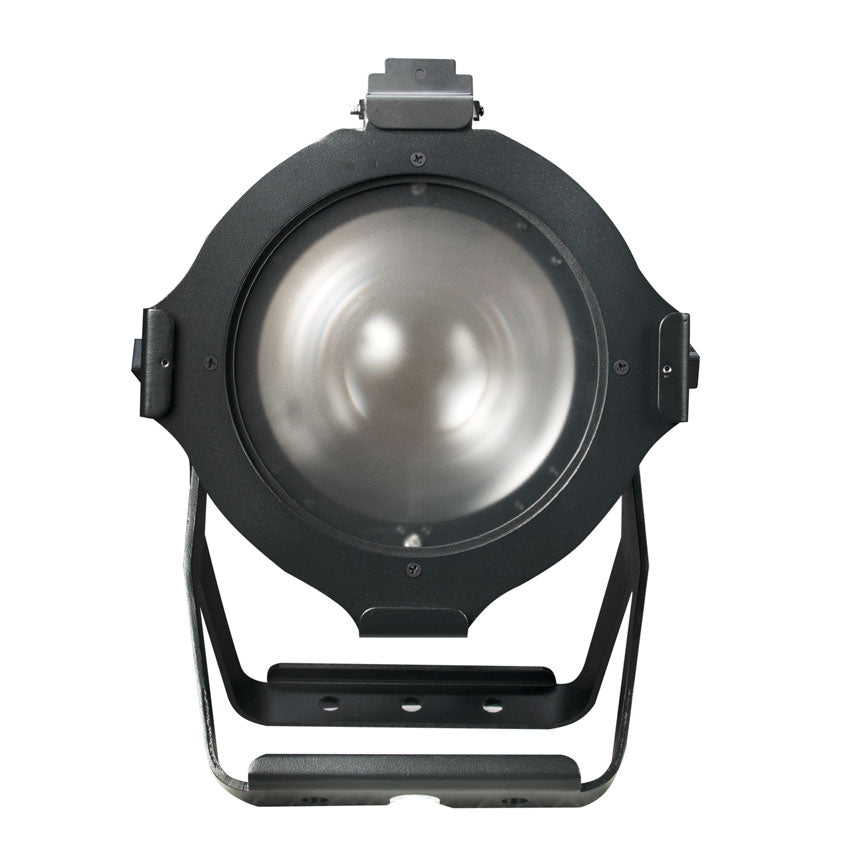

FUZE PAR Z175

Features

Single Source Silent Operating Par
175W RGBW COB LED Engine
8° to 35° Motorized Zoom
Advanced Cooling System
Smooth RGBW Color Mixing
Variable 16-Bit Dimming Curve Modes
Flicker Free Operation for TV and FILM

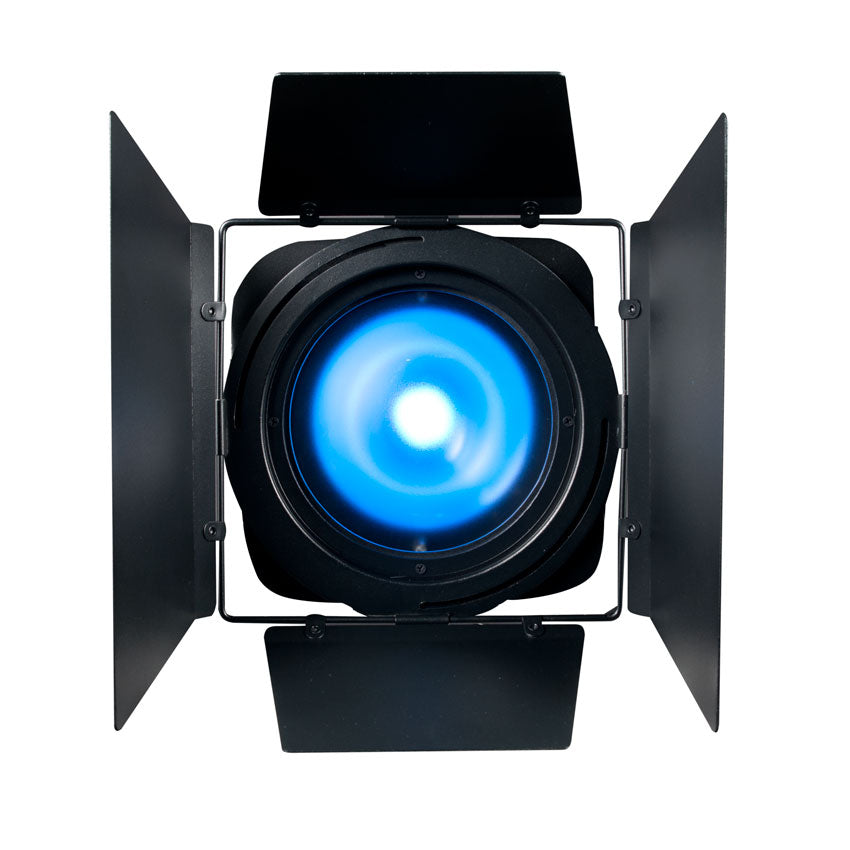

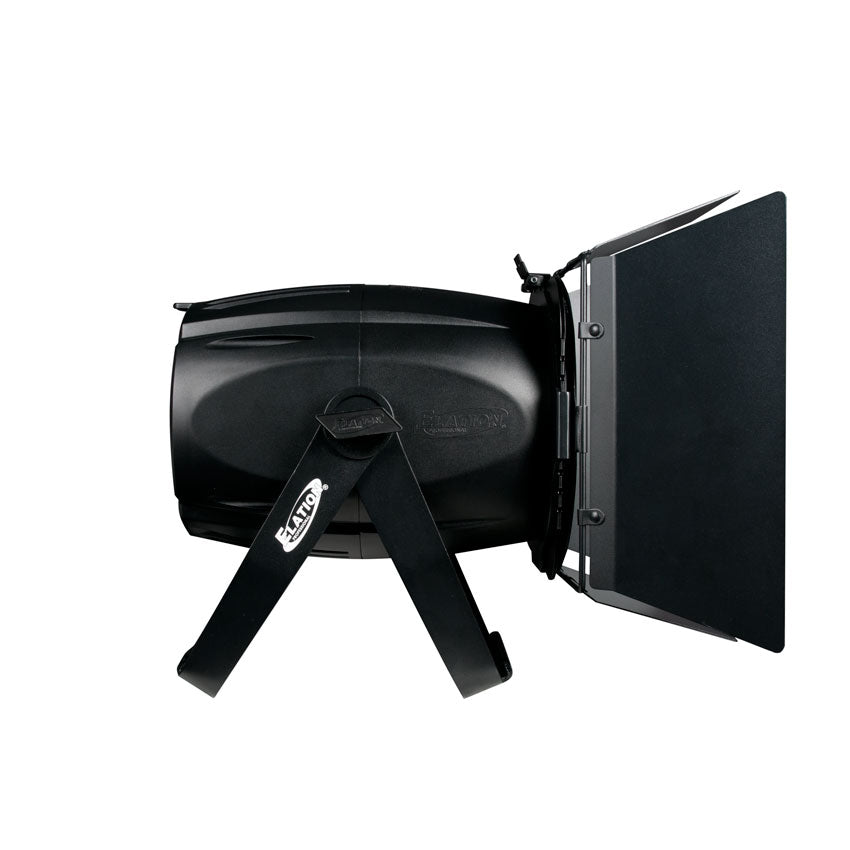

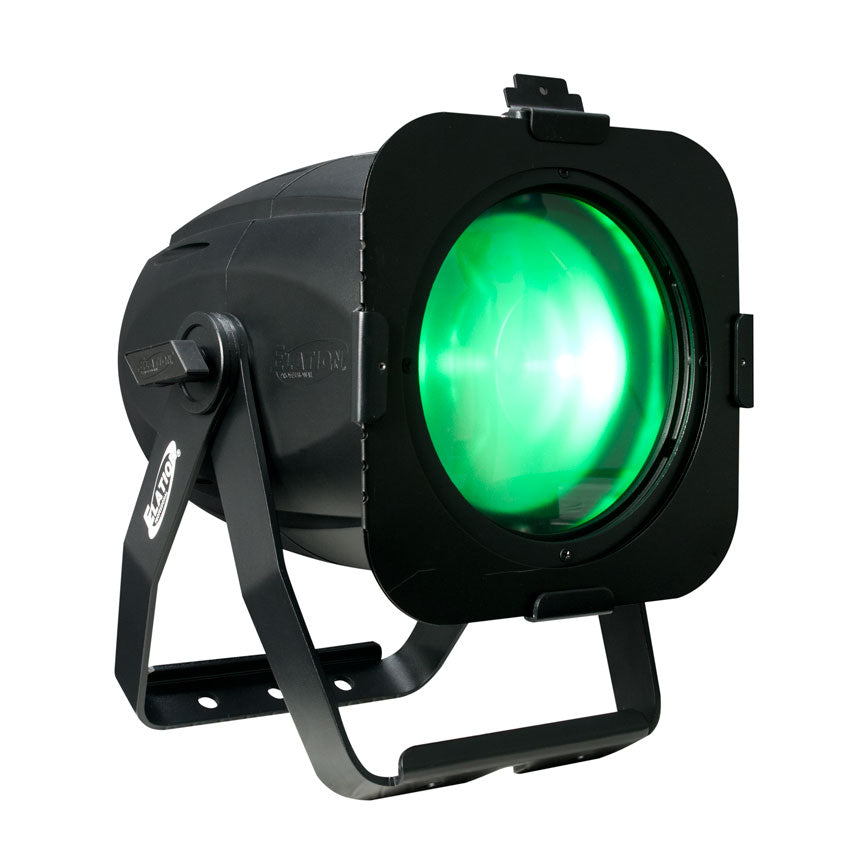

Gel Frame and Barn Doors Included

Resources

Specifications Sheet

User Manual

Photometric Test Report

Photometric IES File

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Specifications

SOURCE
175W RGBW COB LED
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.


PHOTOMETRIC DATA
15,026 LUX 1396 FC @6.6 ft (2m) (Full ON 8°)
3,481 LUX 323 FC @6.6 ft (2m) (Full ON 35°)


EFFECTS
8° - 35° Motorized Zoom
64 Color Presets and Color Macro Programs
Electronic Strobe
16-bit Variable Dimming Curve Modes


COLOR
RGBW


CONTROL / CONNECTIONS
12 DMX Channel Modes (14 Total Channels)
4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

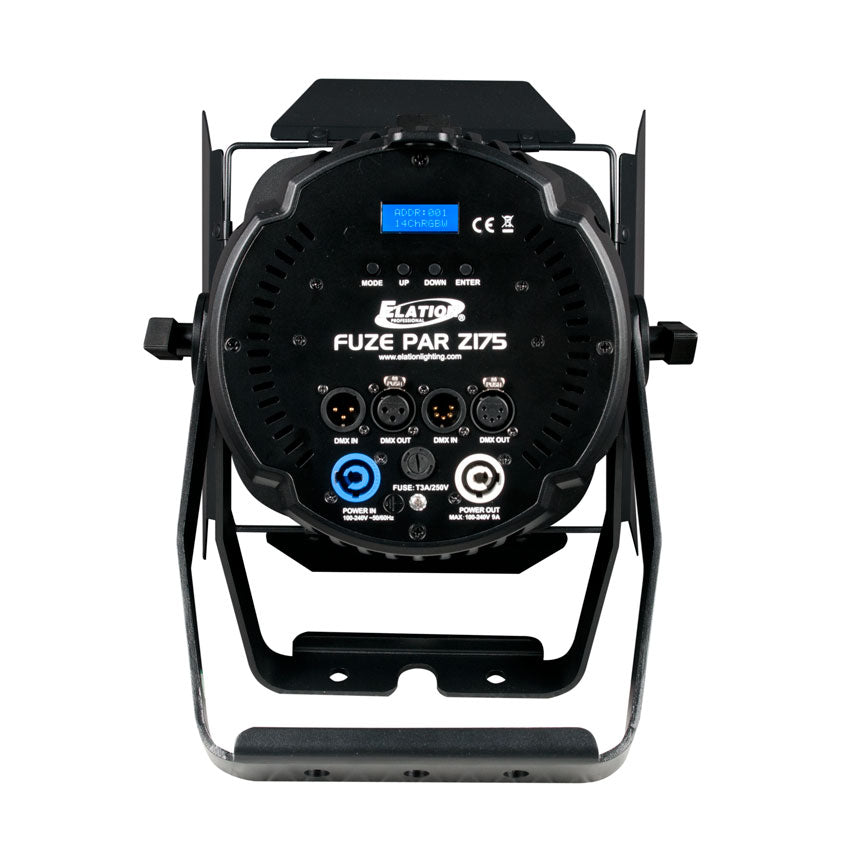

5pin DMX and powerCON TRUE1 In/Out


SIZE / WEIGHT
Length: 18.2” (463mm)
Width: 16.2” (411mm)
Vertical Height: 17.0” (431mm)
Weight: 20.0 lbs. (9.07kg)


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
200W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)


APPROVALS / RATINGS
CE | IP30


INCLUDED ITEMS
Gel Frame
Barn Doors
powerCON Power Cable




Specifications and documentation subject to change without notice.
