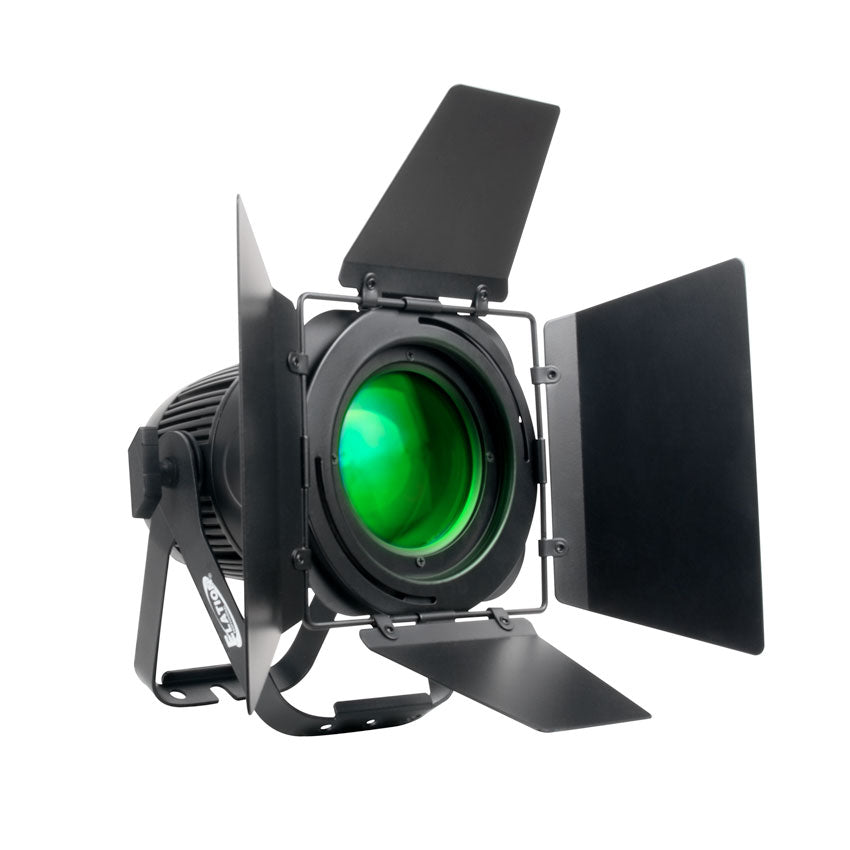

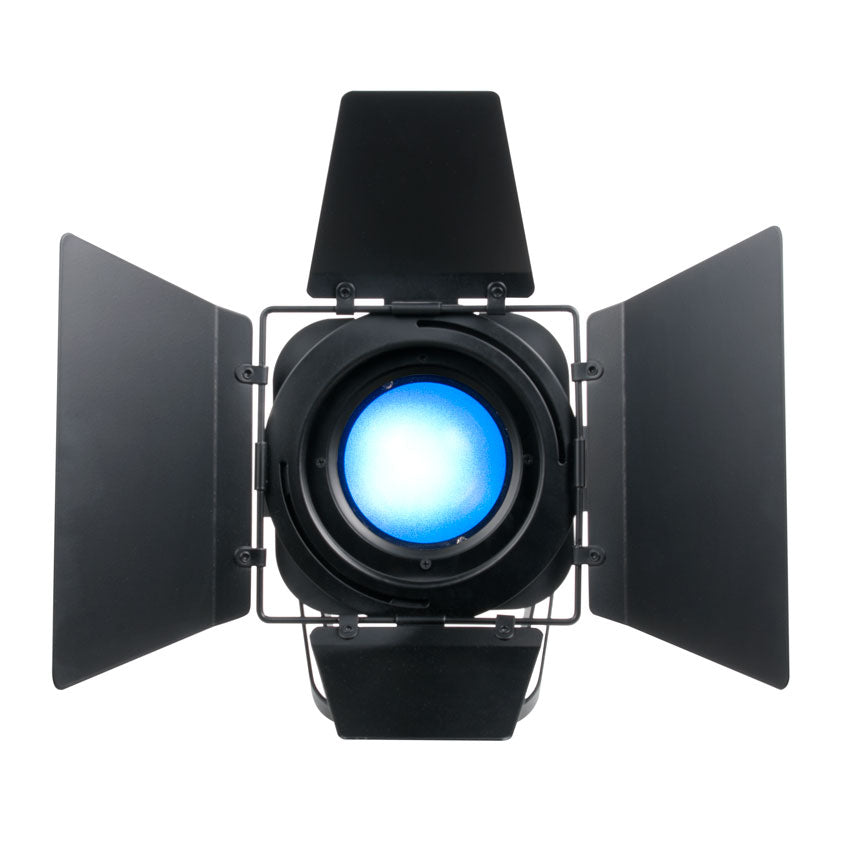

FUZE PAR Z60 IP

Features

IP65 Rated
60W RGBW COB LED Par Luminaire
7° to 39° Motorized Zoom Range
Silent Operation
RGBW Color Mixing
Dual Adjustable Yokes
Multiple Unit Power Linking
Flicker Free Operation for Broadcast TV and FILM

Resources

Specifications Sheet

Dimensional Drawing

CAD Drawing

Photometric Data

DMX Traits

Vectorworks Symbol

Photometric IES File

Photometric Test Report

User Manual

Specifications

SOURCE
60W RGBW COB LED
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
3,813 LUX 354 FC @9.8’ (3m) (7° Full ON)
228 LUX 21 FC @9.8’ (3m) (39° Full ON)

COLOR
RGBW

EFFECTS
RGBW Color Mixing
7° - 39° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros

CONTROL / CONNECTIONS
12 DMX Channel Modes (13 Total Channels)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX and powerCON TRUE1 In/Out

SIZE / WEIGHT
Length: 10.0" (253mm)
Width: 9.9" (252mm)
Vertical Height: 11.1" (282mm)
Weight: 10 lbs. (4.5 kg)

ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
78W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE |IP65

INCLUDED ITEMS
Gel Frame
Barn Door
powerCON TRUE1 Power Cable



Specifications and documentation subject to change without notice.
