Ice Flow

Features

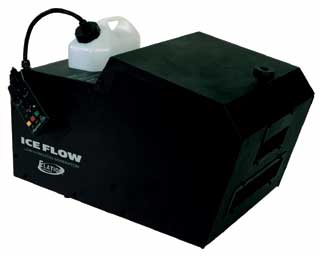

Ice Flow Overview
 The Ice Flow is a standard 1000 watt fog machine fitted with
 an ample size cooling chamber to fit regular or dry ice. This unique chamber
 design allows for the fog smoke to cool before exiting the fogger.
 Once the fog is cooled it pours out like a blanket staying low to the ground.

 Control Features

• Timer Remote (3 pin XLR)
 - functions on timer (Manual, timer, volume & Interval)

• Linkable with other Ice Flows

• USITT DMX-512

• 1 DMX Channel

• Binary Dip switches

• 3 pin XLR serial input/output

Resources

User Manual

Specifications

 Features & Specs

• Heater: 1000W

• Heating Time: 10 mins

• Output: 10000 cu ft/min

• 1/2 liter fog juice container

• Drain Pump (Manual or Automatic activated)

 Technical Spefications

• Dimensions: 23"x12.5"x14" (606x317x340mm)

• Weight: 49lbs (24kgs)

• Temperature Control: ECO: High-245ºC, Low-215ºC

• Fuse: 10A

• Voltage: 120V/60Hz
