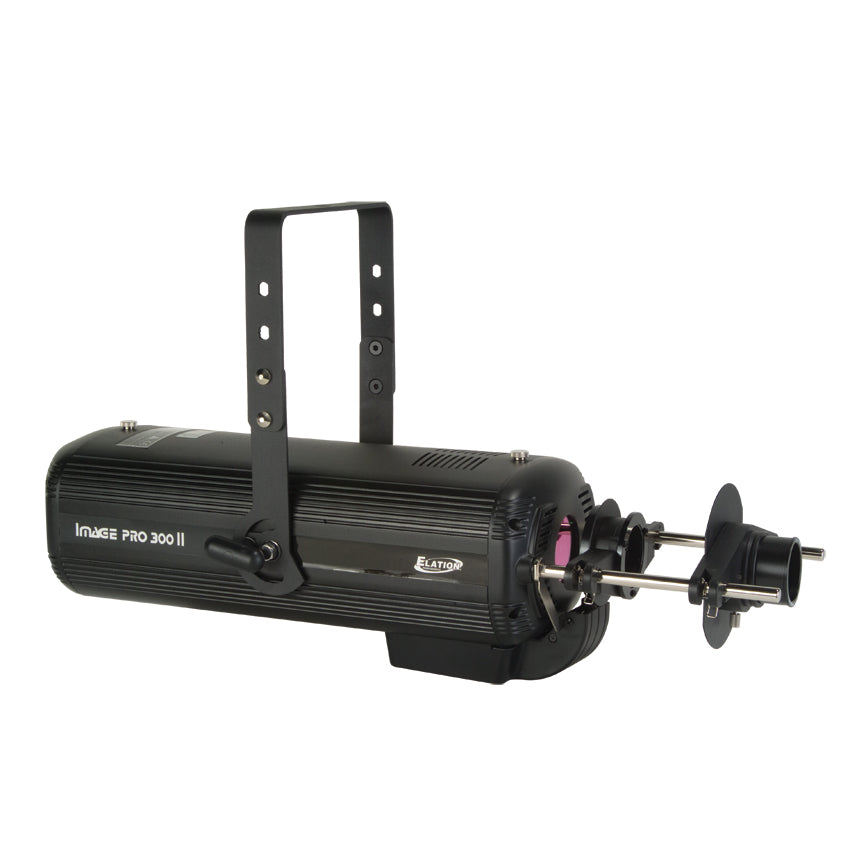

Image Pro 300 II

Features

Features

• High output gobo projector

• Excellent optics

• Extruded aluminum body

• Multi-position steel hanging bracket

• 2 x 24V AC self-powered guides for accessories

• Forced air ventilation with axial fan

Resources

User Manual

Specifications

 Lamps

• HTI 300 W/DEL (85V/300W 3000hrs/5700k) - standard

 Optical System

• 32 degree beam angle

• Anti-reflective coated lenses

• Twin lens condenser and spherical mirror

  Dimensions

• 120V version 24" x 6.5" x 5"

• Weight: 23.5 lbs. (Assembled without accessories)

 Power Supply

• 100-120V 60hz

• Power Consumption: 4 AMPS

 Accessories (Included)

• Slide Cooling Fan

• 1:2.4/100mm projection lens

• Image-IPI: Static metal gobo holder + 5 metal gobos. Outside diameter: 51.8mm. Viewing image: 35.5mm
