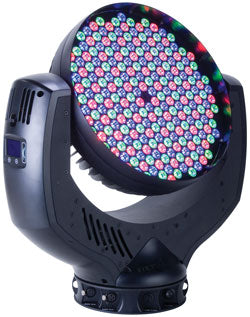

Impression XL

Features

Resources

User Manual

Specifications

• Additive Color Mixing equal to 1,200watt type fixtures

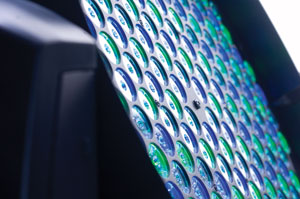

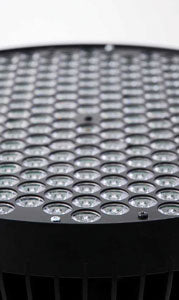

• 240 Luxeon K2 High Preformance LEDs
• Average service life: 50.000 h
• RGB version or White LED versions available
• 78 red, 84 green, 78 blue LEDs per color, wave lengths are optimized for maximum visible color gamut

 Movement
• High precision stepping motor control
• 8 or 16 Bit resolution selectable
• Position Feedback

 Control
• DMX-512 protocol
• Backlit graphic-LCD
• 2 illuminated buttons
• Scroll lwheel
• Very quiet, temperature controlled ventilation system
• Convection cooling possible if needed
• Over heat protection
• Color calibration feature
• Internal color-presets

 Connectors
• DMX: XLR 3 pin
• DMX: XLR 5 pin
• Mains voltage: Powercon

 Operation Parameters
• Mains voltage: 100 240V, 50-60Hz
• Power consumption: 1000VA
• Maximum ambient temperature 45°C

 Weight
• 48.5 lbs. / 22kg

 Dimension
• 21.65 in x 20.28 in x 7.9 in / 550 x 515 x 200mm

 Mounting Options
• Upright : tripod with brackets for ratchet belt
• Hanging (vertical): M12 nut with lockable installation position for a halfcoupler or Omega Clamp with Camloc
• Hanging (horizontal): adjustable bar for sideward truss installation (optional)
• 2 attachment points for safety wire
