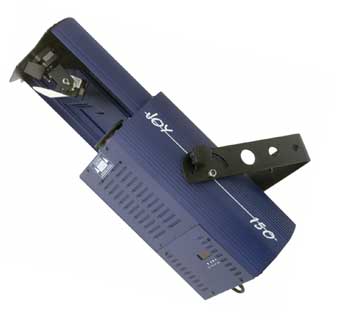

Joy-150

Features

Resources

User Manual

Specifications


• DMX-512 (10 channels)

• 16 bit pan/tilt

• Four Digit L.E.D. menu panel
 Readout lamp usage, DMX Values, etc

• Built in Self test mode for all effects
 Addressing, personality setting and effects

• Calibration via L.E.D. panel

• Condenser Lens

• 16º beam angle

• Lamp Source: Phillips SC-150 (150W, 4200K, 9000Hr.)

• Silent fan Cooling

• Pan movement range 170º

• Tilt movement range 110º

• 7 dichroic color filters + white

• 8 split colors

• Color Scroll

• 6 gobos + spot

• 5 interchangeable 26mm gobos

• 4 rotating gobos

• Mechanical shutter

• Variable strobing 1-10 flashes per sec.

• Full manual focusing

• Power Supply: AC 115V/3,6 AT (AC 230V/1,8 AT)

• Power Compensated

• Dimensions: 23" x 10.25" x 7"
 (600 x 265 x 180 mm)

• Weight: 32 lbs (14 kg)
