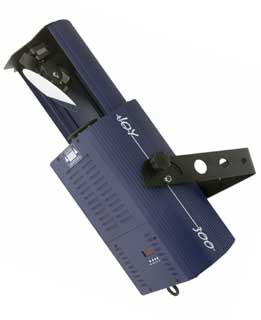

Joy-300

Features

Resources

User Manual

Specifications


• DMX-512

• 16 bit pan/tilt 12 channels

• Four Digit L.E.D. menu panel
 Readout lamp usage, DMX Values, etc

• Built in Self test mode for all effects
 (Addressing, personality setting and effects calibration via L.E.D. panel)

• Condenser Lens

• 16º beam angle

• Lamp Source: Osram HMD-300 (300W, 5600K, 3000Hr.)
 Osram HTI-300/DX (300W, 6300K, 750Hr.)

• Silent Dual fan Cooling

• Dimensions: 23" x 10.25" x 7"
 (600 x 265 x 180 mm)

• Weight: 36 lbs (16 kg)

• Pan/Tilt
 Pan movement range 170º
 Tilt movement range 110º

• 9 dichroic color filters + UV + white

• 28 color combinations

• 32k, 56k filters

• Color Scroll

• 6 gobos + spot

• 5 interchangeable 26mm gobos

• 4 rotating, indexable gobos

• 1 motorized effect wheel

• 3 + 5 way prism

• Frost Filter

• Dimmer/Shutter

• Combined mechanical dimmer/shutter

• Full range micro step driven dimming

• Variable strobing 1-10 flashes per sec.

• Full manual focusing

• Power Supply: AC 115V/3,6 AT (AC 230V/1,8 AT)

• Power Compensated
