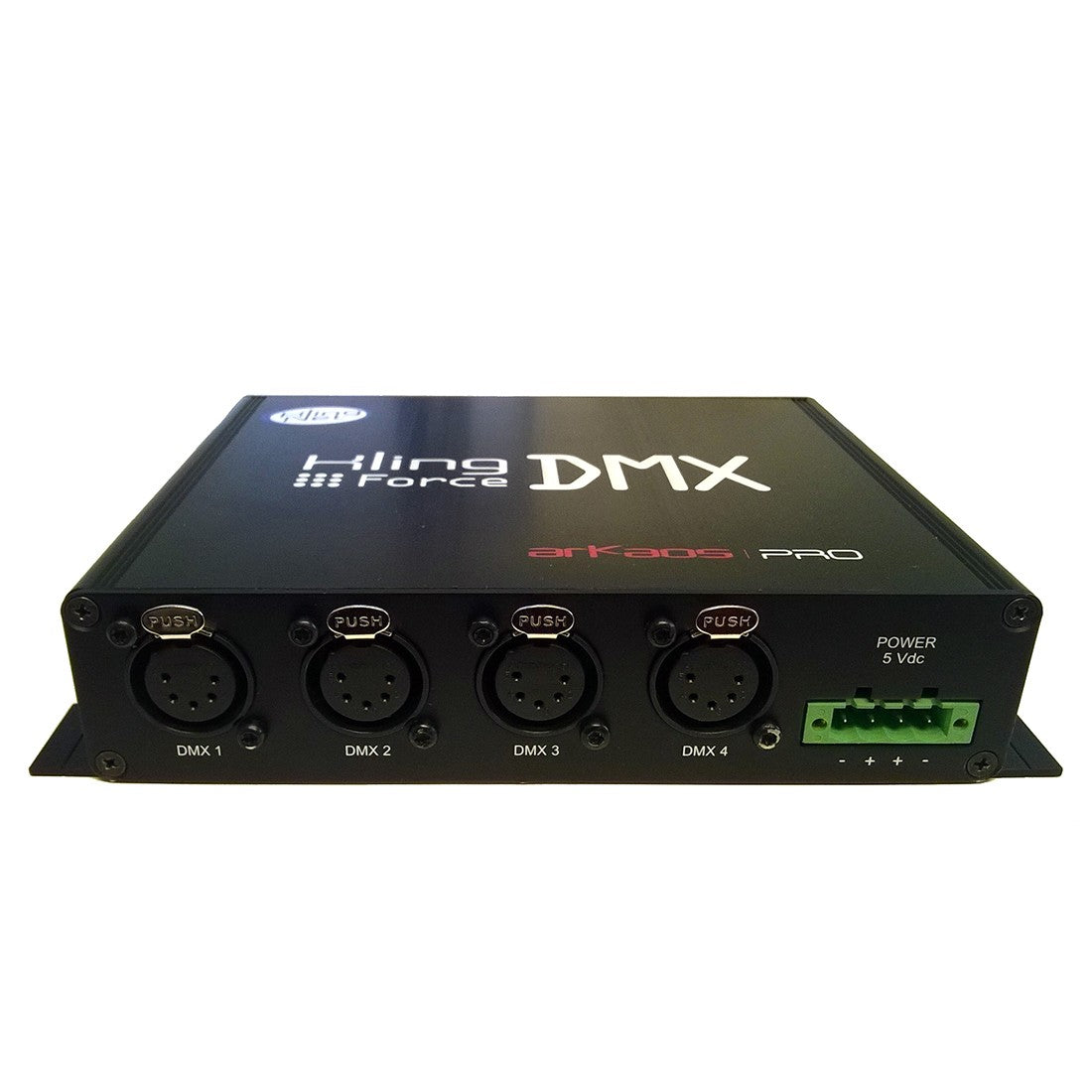

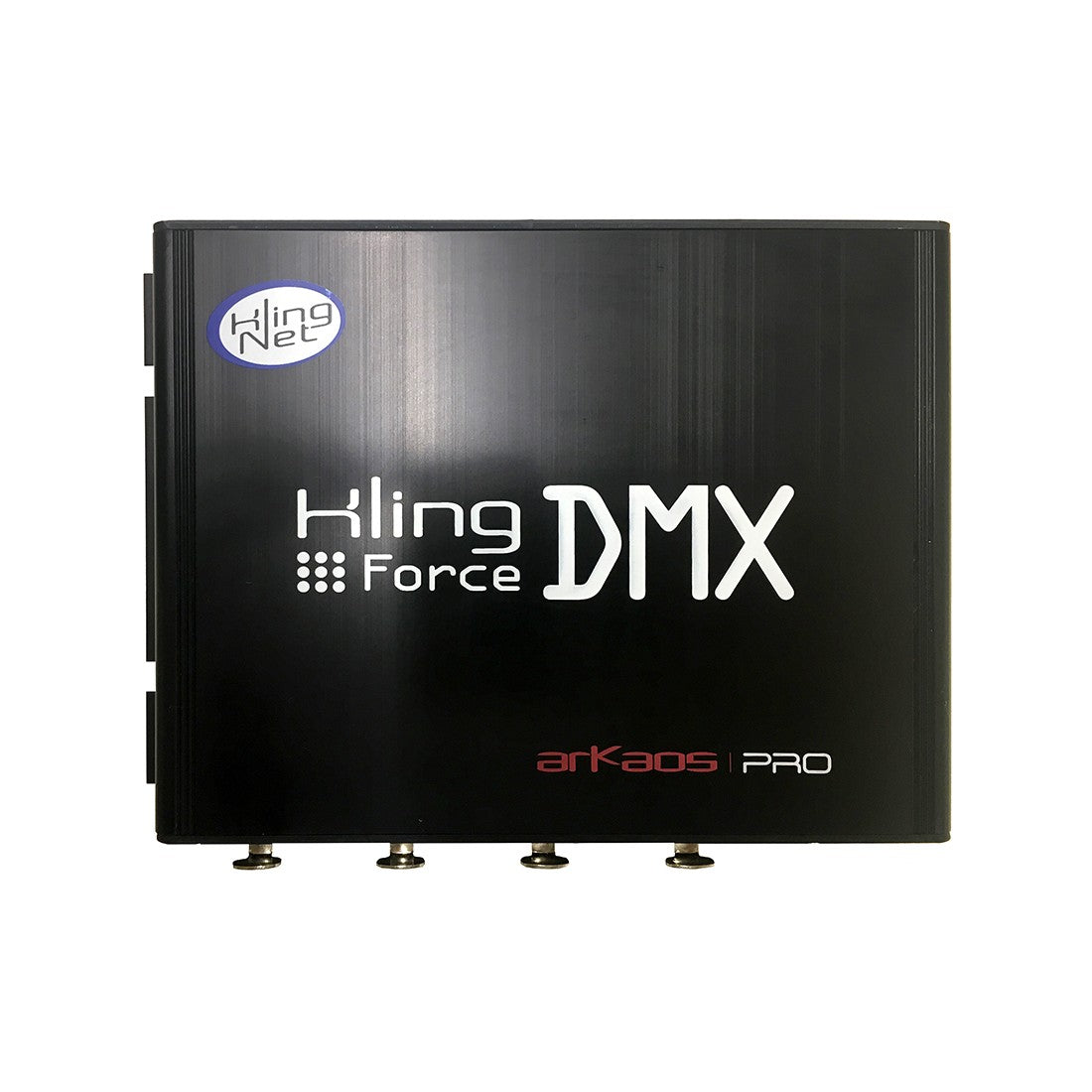

KLING FORCE DMX

Features

It has 4 DMX outputs and so it can drive 4 DMX Universes and has 2 Ethernet connections allowing multiple units to be daisy chained.

With Kling-Force DMX you can assign as many fixtures as will fit within each DMX universes. This is done in the mapper where the user can pick any DMX fixtures and assign them a DMX address. Once this is done the fixtures become available as a devices in the Kling-Net Mapper.

Resources

Specifications Sheet

Specifications

INPUT
Ethernet / Kling-Net Protocol

ETHERNET SWITCH
2 ports Hardware Gigabit Switch

DAISY CHAINING
Up to 50 devices

OUTPUTS
4 Universes

CONNECTORS
4x XLR 5pin Female

POWER SUPPLY
Not Included [Requires 5V]

RACK MOUNTING
Yes [7.0” (178mm) Rail Spacing]

SIZE / WEIGHT
Height: 7.5” (190mm)
Length: 5.1” (130mm)
Depth: 1.5” (39mm)
Unit Weight 1.05 lbs. (0.48kg)


Specifications and documentation subject to change without notice.
