LED MASTER

Features

Run The New LEDMaster in 3 Simple Steps
The New LEDMaster is the all-in-one solution that allows anyone to run a lightshow. ArKaos has added new features to the existing set of tools provided by the software, including support for MIDI controllers, Art-Net DMX consoles and many more.


1-2-3 GO
Designed in a very smart way this LED control application allows you to do much more than just RGB. In 3 simple steps, it is fast and easy to use and will do most of the configuration automatically for you. Just map it, program it and perform... It's that simple!

Step 1 - Mapping Mode

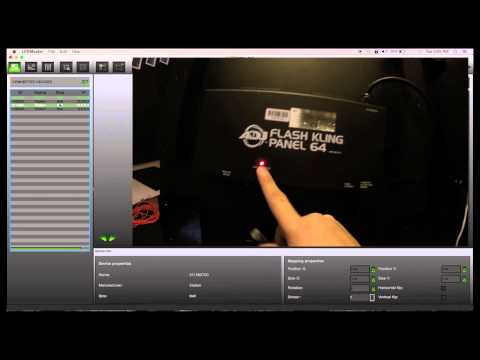

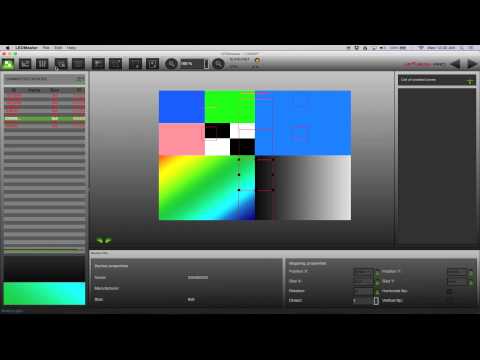

Your Kling-Net devices will be automatically recognized by the software, after which you can place them on the Canvas. By using Kling-Net, you can forget about Art-Net, DMX, nodes, addressing and everything else. It is all done for you. When Mapping the devices on the Canvas, virtual groups of devices called Zones can be defined. These will make your setup even more easy and flexible.

Step 2 - Programming Mode
The programming mode allows you to create Sequences in a very simple way. You can use our Live Patterns or you can use imported videos from your own library.

Timeline Based
Our timeline based editor means you can easily program your full show, but of course you can also go for live interaction to make your show completely interactive.

Live Patterns

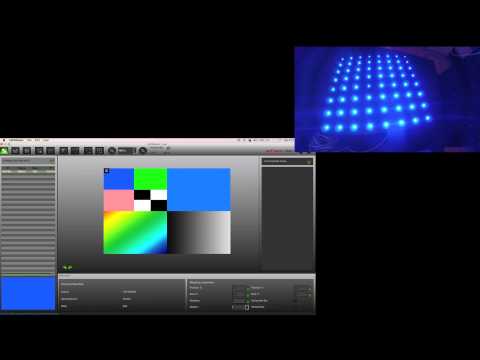

Our completely new Live Pattern generator will allow you to have hard edged visual output on the smallest or biggest LED installations. Forget about buying expensive videos or the headache of creating them yourself. We will generate them live for you, based on the mapping you have made.

Step 3 - Performance Mode

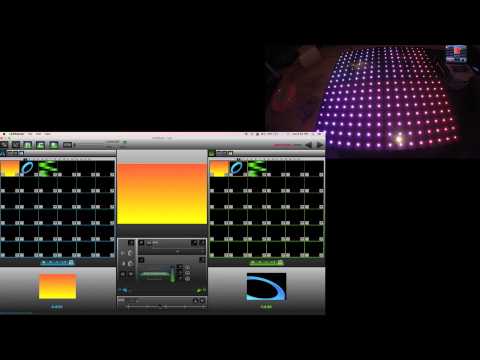

Live performance is the key for the show. Trigger the Sequences you created live, manually, randomly or sequentially. You have all the options available to create the show that you prefer. Our easy beat detection makes sure that Visuals are synchronized with the music. Also Live Patterns can generate unique visuals adapted to the sound atmosphere of your show.

The New LEDMaster 1.1 Key Features
Support for MIDI controllers and Art-Net DMX consoles
Easy MIDI, DMX and keyboard mapping with learn function and UI overlay
MIDI feedback support for a set of MIDI controllers
Support of MIDI controllers from Akai APC40 mkII, APC Key 25, MPK Mini, Livid Ohm 64, Ohm RGB and Elation MidiCon
Support of a standardized LEDMaster DMX Fixture 1.0
Support of additional Kling-Net device manufacturers
Improved device mapping and zone editing user interface
Improved timeline editing, including infinite cues handling and drag and drop
Improved stability and reactivity

Kling-Net is a protocol designed to simplify the setup and operation of display devices such as LED devices.  Those LED devices are connected to a computer through a standard Ethernet network.

The purpose of Kling-Net is:
To allow the connection of display devices to a computer through an automatic configuration

To dynamically configure the network by assigning IP numbers to the LED devices

To ensure a perfect time synchronization of many display devices

To avoid using expensive hardware video converters usually needed to send video to display devices

To allow creating a heterogeneous network of display devices made by different manufacturer and controlled by a Theater computer

To add some intelligence into display devices in order to allow device autoconfiguration

With Kling-Net, display devices and network installations become straightforward to setup. Kling-Net is independent of DMX, ArtNet or E1.31 (also called Streaming ACN) protocols.

Resources

User Manual

Software

Specifications

SYSTEM REQUIREMENTS

Minimum Requirements
CPU Intel Core2 Duo 1.8GHz or AMD Athlon X2 64 2.0GHz
Memory 2.0GB

Recommended Specifications
CPU Intel Core i5 3.5GHz or AMD FX 6300 3.5GHz
Memory 4.0GB

Additional Requirements
Storage Space 1GB
Resolution 1280x800 or 1366x768 or higher
Sound DirectX 9.0c compatible sound card (Windows)
Windows OS Windows XP SP3 / Windows Vista SP2 / Windows 7 / Windows 8.1
Mac OS Mac OS 10.6+
Internet connection is required for Activation



Specifications and documentation subject to change without notice.
