Level Q7
Level Q7
Discontinued
SKU# LEV054

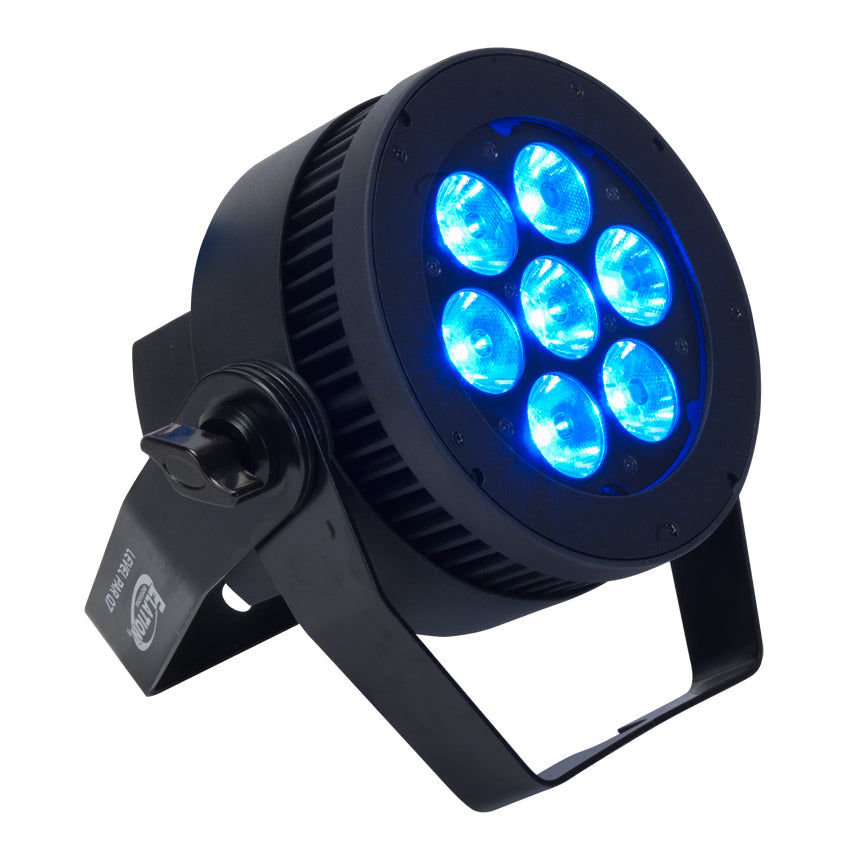

The Level Q7™ features (7) 15W QUAD color RGBW LEDs, 7° beam, color correction (2,700K - 7,200K), electronic strobe (1-18 fps) and dimming (0-100%), flicker free operation for TV and FILM, rugged die-cast aluminum exterior, rubber padded base with dual yoke / floor stand, multiple unit power linking, 127W max power consumption, a multi-voltage universal auto switching power supply (120-240v), and gel frame, gel frame holder, and filter gel included.
Features
7° Beam
2,700K - 7,200K Color Correction
Flicker Free Operation for TV and FILM
Rugged Die-Cast Aluminum Exterior
Rubber Padded Base with Dual Yoke / Floor Stand
Multiple Unit Power Linking
Gel Frame, Gel Frame Holder, and Filter Gel Included
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- LEVEL Q7 Vectorworks 2014 Symbol
- LEVEL Q7 Vectorworks 2015 Symbol
- LEVEL Q7 Vectorworks 2016 Symbol
- LEVEL Q7 Vectorworks 2017 Symbol
Related Categories
Specifications
SOURCE
(7) 15W QUAD Color RGBW LEDs
100,000 Hour Average Lamp Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
3636 LUX 388 FC @16.4’ (5M)
EFFECTS
Electronic Strobe and Varying Settings
Color and Chase Macros
Electronic Dimming: 0% - 100%
CONTROL / CONNECTIONS
(5) DMX Channel Modes (4 / 5 / 7 / 12 / 17)

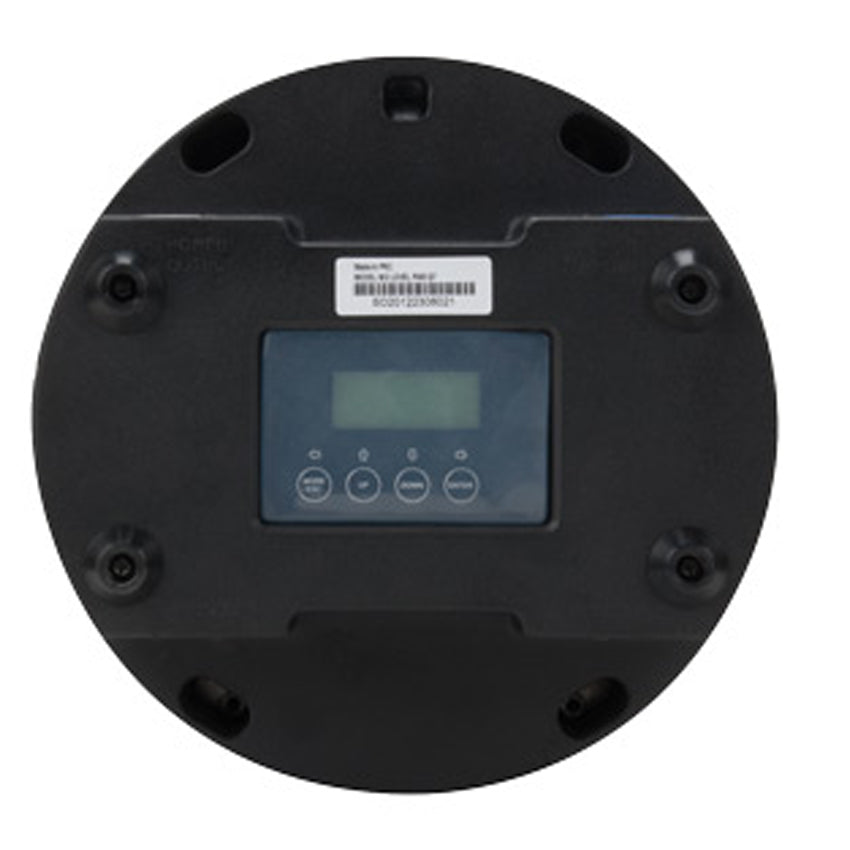

(4) Button Control Panel
LCD Menu Display

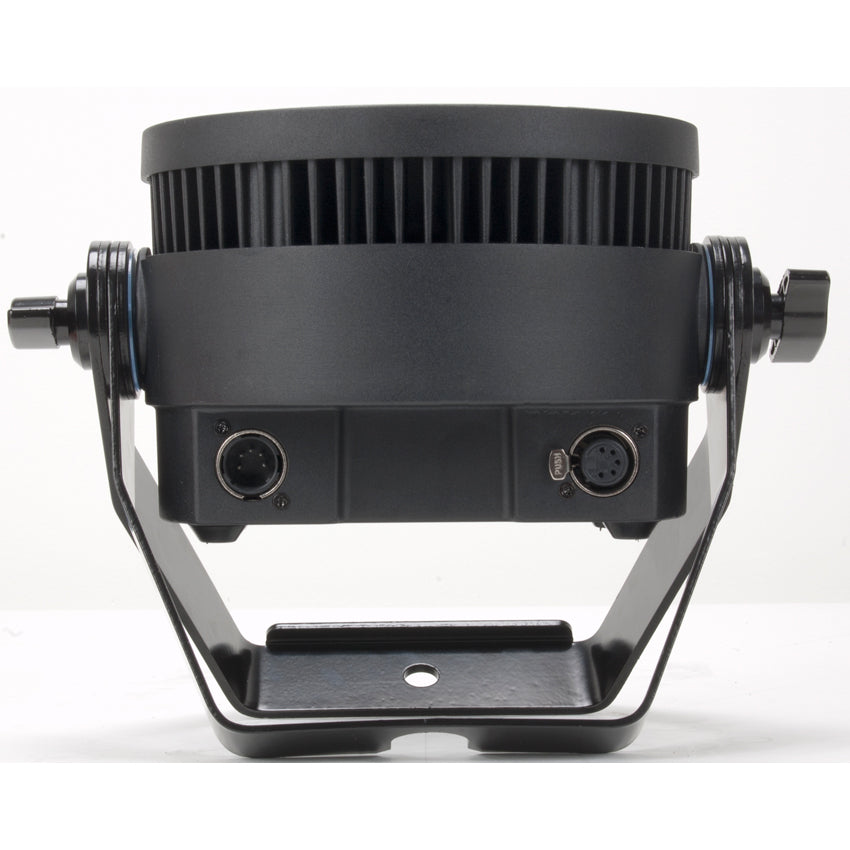

5pin DMX In/Out

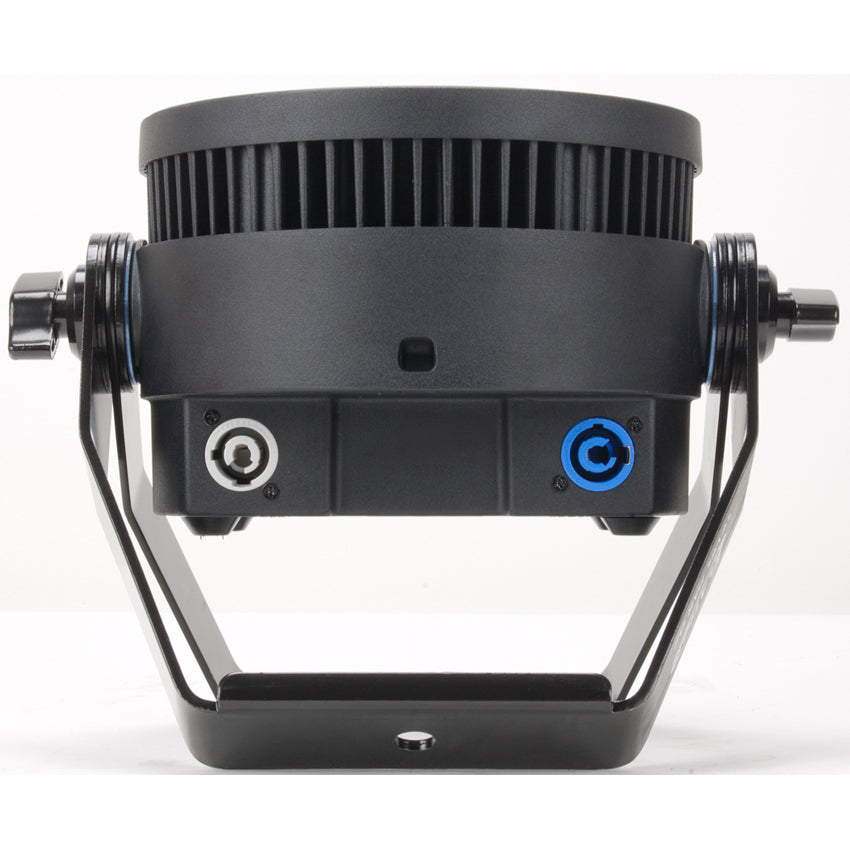

powerCON In/Out
SIZE / WEIGHT
Length: 11.0” (278.6mm)
Width: 5.5” (140.5mm)
Vertical Height: 10.2” (260mm)
Weight: 9.0 lbs. (4 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
127W Max Power Consumption
Multiple Unit Power Linking
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
OPTIONAL ACCESSORIES:

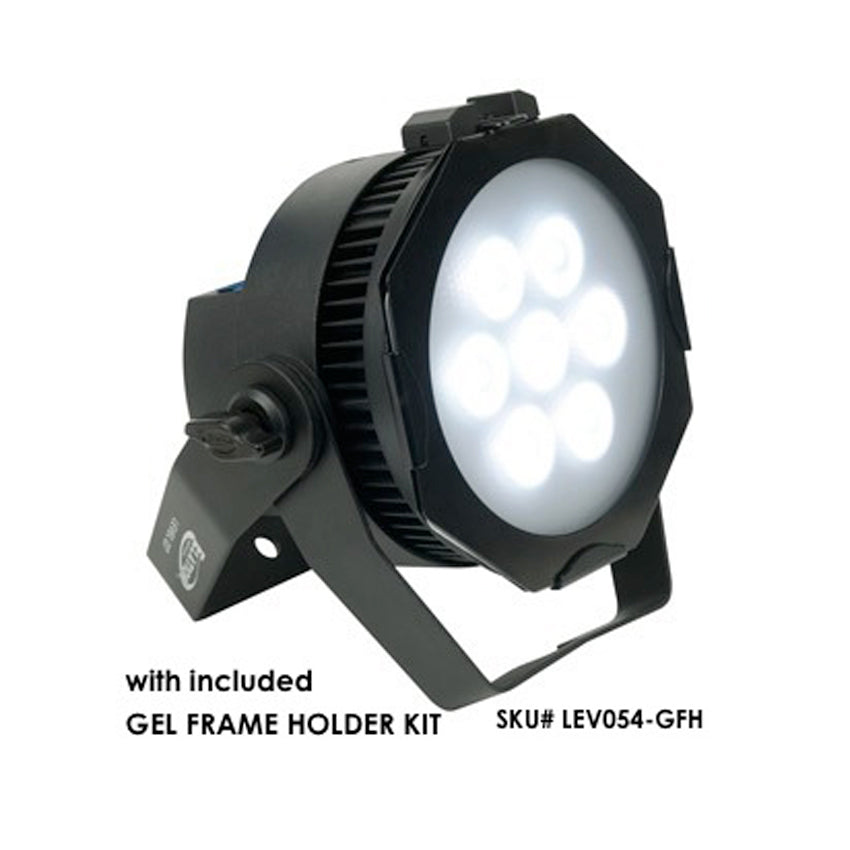

LEV054-GFH
Gel Frame Holder Kit (7.88” Slot Holder, Gel Frame, and (4) Screws)
LEV054-GFH-S4
Source 4 Accessory Holder (7.50” Slot Holder and (4) Screws)
Specifications and documentation subject to change without notice.
