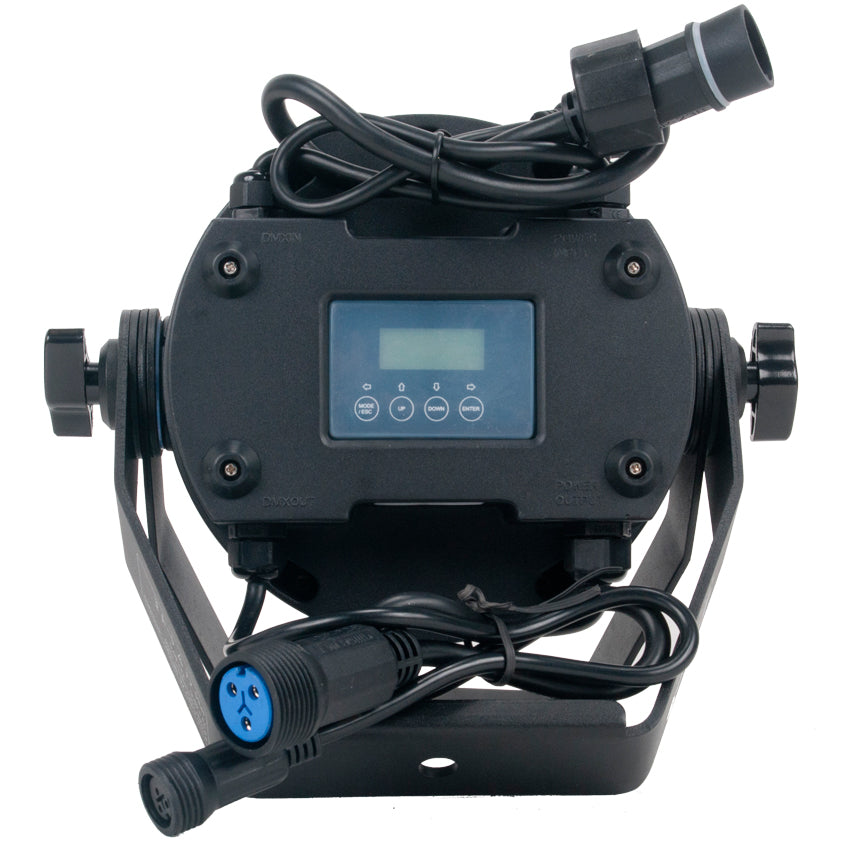

Level Q7 IP

Features

 IP65 Rated
 7° Beam 13° Field Angles
 2,700K - 7,200K Color Correction
 Flicker Free Operation for TV and FILM
 Rugged Die-Cast Aluminum Exterior
 Rubber Padded Base with Dual Yoke / Floor Stand
 Multiple Unit Power Linking

Resources

Specifications Sheet

User Manual

Photometric Data

Photometric Test Report

Photometric IES File

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Specifications

SOURCE
(7) 15W QUAD Color RGBW LEDs
100,000 Hour Average Life

PHOTOMETRIC DATA
3636 LUX 388 FC @16.4’ (5M)

EFFECTS
Electronic Strobe and Varying Settings
Color and Chase Macros
Electronic Dimming: 0% - 100%

CONTROL / CONNECTIONS
(5) DMX Channel Modes (4 / 5 / 7 / 12 / 17)
(4) Button Control Panel
LCD Menu Display
IP 3pin DMX In/Out
IP 3pin Power In/Out

SIZE / WEIGHT
Length: 11.0” (278.6mm)
Width: 5.5” (140.5mm)
Vertical Height: 10.2” (260mm)
Weight: 9.0 lbs. (4 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
127W Max Power Consumption
Multiple Unit Power Linking
-13°F to 113°F (-25°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | ROHS | IP20

INCLUDED ITEMS
(1) IP Power Cable
(1) IP 3pin DMX Cable
(1) Safety Cable

OPTIONAL ACCESSORIES:

LEV054-GFH

Gel Frame Holder Kit (7.88” Slot Holder, Gel Frame, and (4) Screws)

LEV054-GFH-S4
Source 4 Accessory Holder (7.50” Slot Holder and (4) Screws)

804090301390
IP To Edison Power Cable

804090301470
3pin Female/XLR To Male IP DATA Cable

804090301480
3pin Male/XLR To Female IP DATA Cable

804090301370
9.8’ (3m) Male To Female IP POWER Jumper Cable

804090301380
9.8’ (3m) Male To Female IP DATA EXT Cable

804090301770
32.8’ (10m) Male To Female POWER IP Jumper Cable

804090301780
32.8’ (10m) Male To Female DATA IP Jumper Cable

Specifications are subject to change without any prior written notice.
