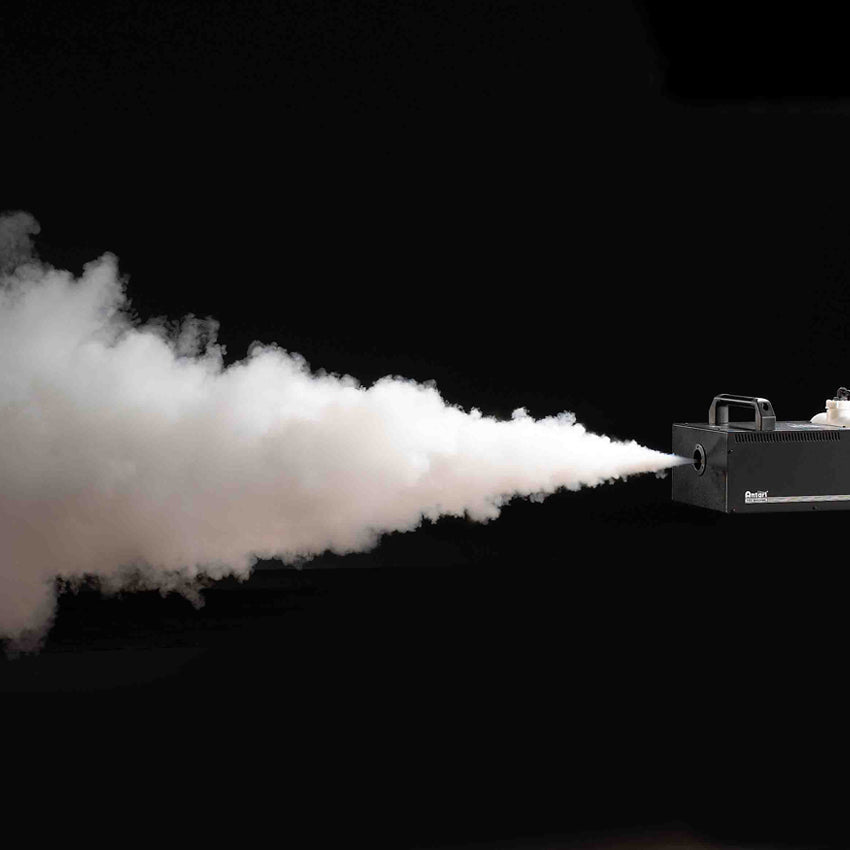

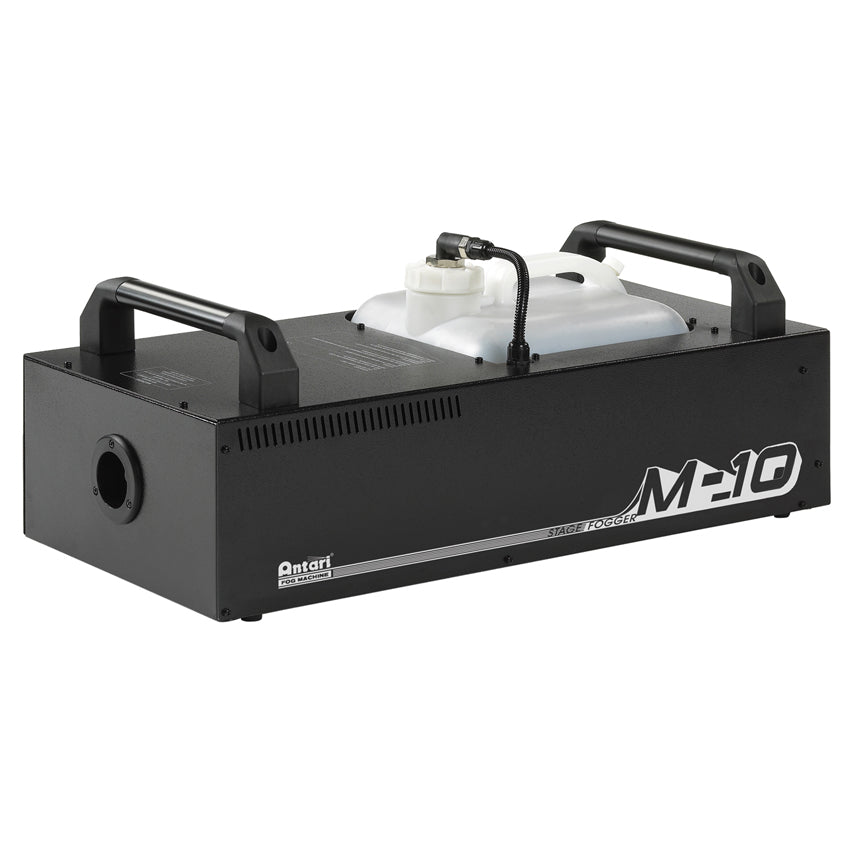

M-10 Stage Fogger

Features

The M-10 Stage Fogger was uniquely designed to meet the rigorous demands of stage and touring use. A high-capacity, 10 liter tank offers non-stop power that enables extended use between refills.  A rectangular, durable sleek housing design makes the M-5 easy to carry and stand with rigorous road transport. Due to its enhanced heat reservation structure, electricity consumption is reduced from about 20 ~ 25%.

Features:
 - Power: AC240V / 60Hz ONLY
 - Heater: 3,000W
 - Output: 40,000 cu.ft/min
 - First Heat-Up Time: 13 min.
 - Tank Capacity: 10 Liters
 - Fluid Consumption Rate: 5 min/Liter (100% Output)
 - Remote Included: Z-20 (Timer Remote)
 - Optional Remote: Z-30 (Wireless Remote)
 - Optional Accessories: FM-10 (Flight Case) and Hanging Brackets
 - Weight: 21 Kg
 - Dimensions (mm): L690 x W319 x H192


 RECOMMENDED ANTARI™ FOG FLUID

 FLR (click for more info)

 FLG (click for more info)

Resources

User Manual

Specifications

OPTIONAL ACCESSORIES

 FX-5 ROAD CASE (click for more info)


 Specifications and documentation subject to change without notice.
