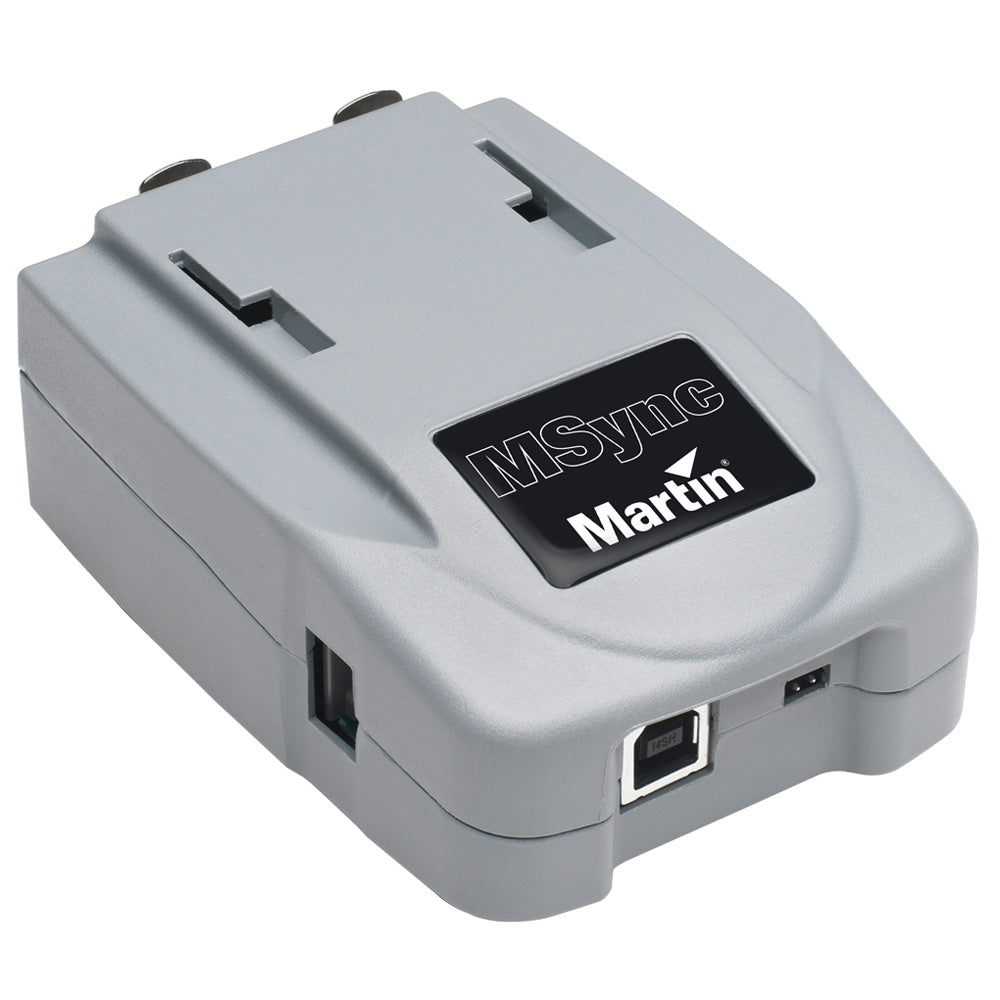

M-Sync
M-Sync
The M-Sync is a simple USB device that allows SMPTE timecode to be input directly into any M-Series console - M1 HD, M2GO HD, M2PC, or M-PC.
M-Sync has two 3-pin XLR connectors for timecode In/Out, supporting LTC timecode @ 24, 25, 29.97 and 30 frames per second. It can be connected to any USB port on a PC or M-Series console.
M-Sync allows the M-Series software to read Linear Timecode (LTC) signals for perfect cue synchronization with external devices like sound or video playback systems.
Two 3-pin XLR connectors for timecode In/Out
LTC timecode set at 24, 25, and 30 frames per second
Works with M-Series software on consoles or with M-PC
Features
Two 3-pin XLR connectors for timecode In/Out
Convenient, space-saving, stackable design
Easily mounts to surfaces and walls
LTC timecode @ 24, 25, 29.97 and 30 frames per second
Related Categories
Specifications
PHYSICAL
Length: 103 mm (4.1 in.)
Width: 73 mm (2.9 in.)
Height: 42 mm (1.7 in.)
Weight: 116 g (0.3 lbs.)
CONTROL/USER INTERFACE
Configuration and management: Within M-Series™ application
TIMECODE
Compliance: SMPTE (LTC)
Frame rates: 24, 25, 29.97 and 30 frame/sec.
CONNECTIONS
Timecode In/Out: 2 x 3-pin locking XLR, 1 x male, 1 x fem.
PC/controller: USB
ELECTRICAL
USB-powered
INCLUDED ITEMS
USB cable
Specifications and documentation subject to change without notice.
