MEDIA MASTER EXPRESS

Features

NEW FEATURES in MediaMaster Express 5.1
Support for Mac OS X 10.13
Support for ArKaos's New Product Kling-Force LED
Enhanced Support of Kling-Net Protocol and Detection of Kling-Net Devices
Spout and Syphon Support Exposed as a New Folder in the Library
Enhanced Art-Net Support for Unicast and Broadcast
Improved Support for Multiple Network Interfaces


MAIN FEATURES
8 independent video layers
Control video layers with just a few DMX dimmers or MIDI notes
Work on a single DMX universe or MIDI channel
Kling-Net support for plug-n-play configuration of LED devices

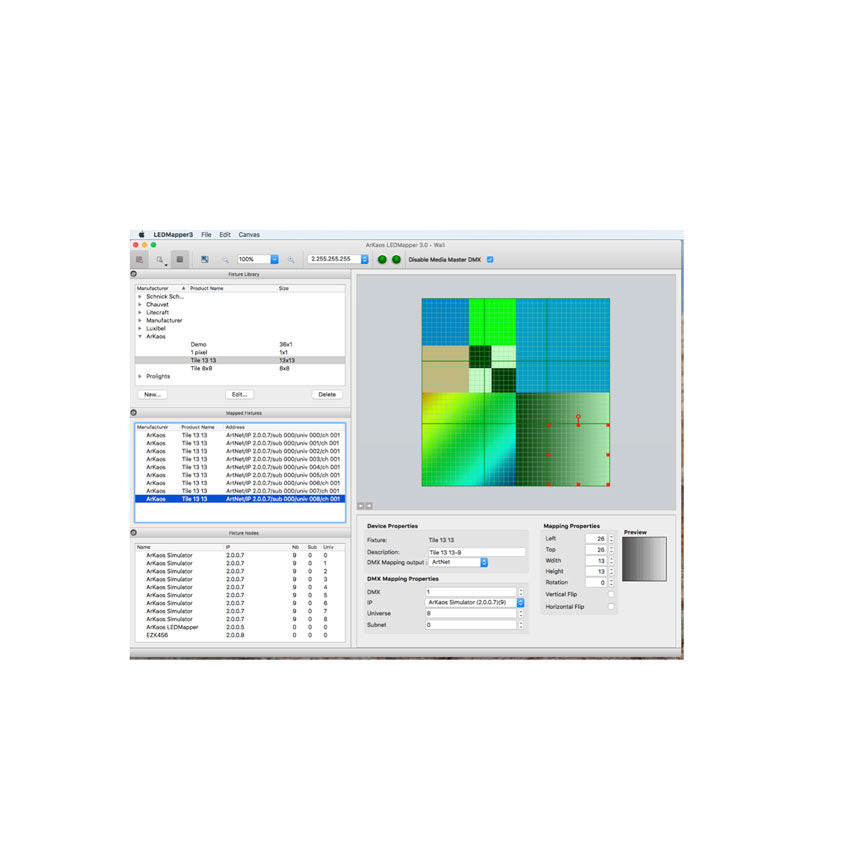

Split-devices support with Kling-Net mapper
Advanced Graphic Engine: hardware accelerated, multi-threaded on multi-core CPUs
Optimized for HD movies and HD output support

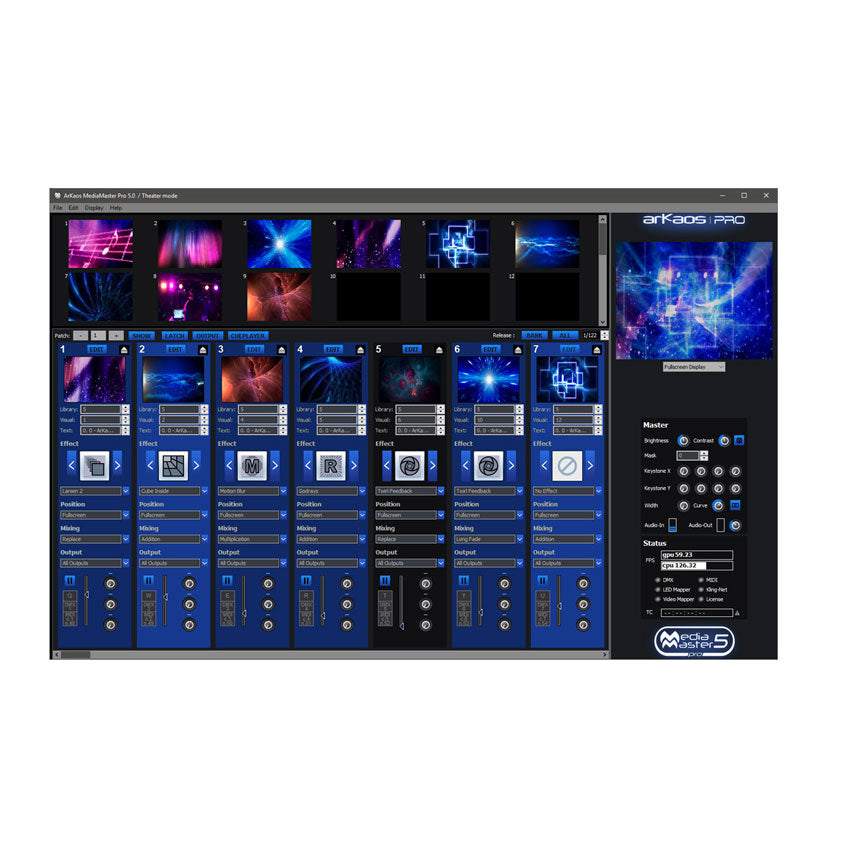

Intuitive User Interface
60+ Effects | 50+ Text Animations
Audio Visualization Generators
Drag-n-Drop visuals directly on the main interface
Movie audio support through FFMpeg (supports most formats)
Actionscript 3 support in Flash animations and Flash Texts
Quartz Composer .qtz file support as Sources and Effects (Mac OS X only)
Syphon Mac support, native output to applications that support Syphon as input
Media library of 255 folders and 255 visuals
Organize shows with up to 64 patches of 64 cells
Control up to 3 parameters per cell via DMX or MIDI
Optional fade time on trigger
Multiple video inputs (PCI card, FireWire DV / HDV, USB, etc.)
Frame blending for smooth playback even at very slow speed
Software Genlocking to monitors for up to 60fps playback and no frame dropping
Master brightness-contrast, keystone
Multi-Screen and Wide-Screen with soft-edge
Internal MPEG2-MPEG4 codec for enhanced reliability
Native support of H.264 through FFMPEG 0.5

Common Media Format Support:
AVI, MPEG, QuickTime MOV, Flash, WMV, picture files etc.
Support for movies with alpha channels

Resources

Specifications Sheet

User Manual

Software

Specifications

CONTROL INTERFACE
Computer Keyboard (not included)
Any MIDI controller compatible with your system (not included)
Simple DMX lighting desk (not included)


RECOMMENDED MINIMUM SYSTEM CONFIGURATION


PC
OS: Windows™ 7, 8 or 10
Processor: Pentium™ IV 2.66Ghz / Core Duo 1.83Ghz recommended
RAM: 1GB, 2GB recommended
Media Component: QuickTime™ 7.x (and up), Adobe FlashPlayer™ 9.0 (and up), DirectX™ 9.0c (and up)


MAC
OS: Mac OS X 10.9 (and up)
Processor: Any Intel Mac, Core Duo 1.83Ghz (and up)
RAM: 1GB, 2GB recommended
Media Component: QuickTime™ 7.x (and up), Adobe FlashPlayer™ 9.0 (and up)


PLATFORM INDEPENDENT
Graphics processor: 3D accelerated graphics card required: nVidia GeForceFX 5200 (and up), Ati Radeon 9200 (and up), Intel GMA 950 (and up), ...

Minimum Resolution: 1200x900 pixels

Free Space: 80MB - 1.5GB depending on the installer options



Specifications and documentation subject to change without notice.
