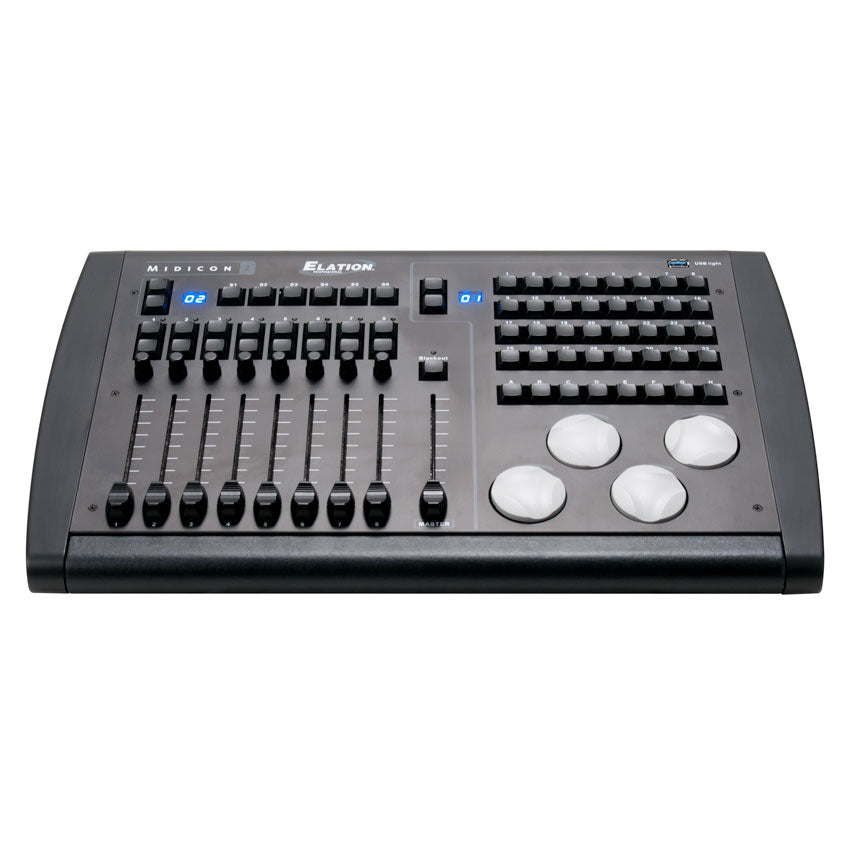

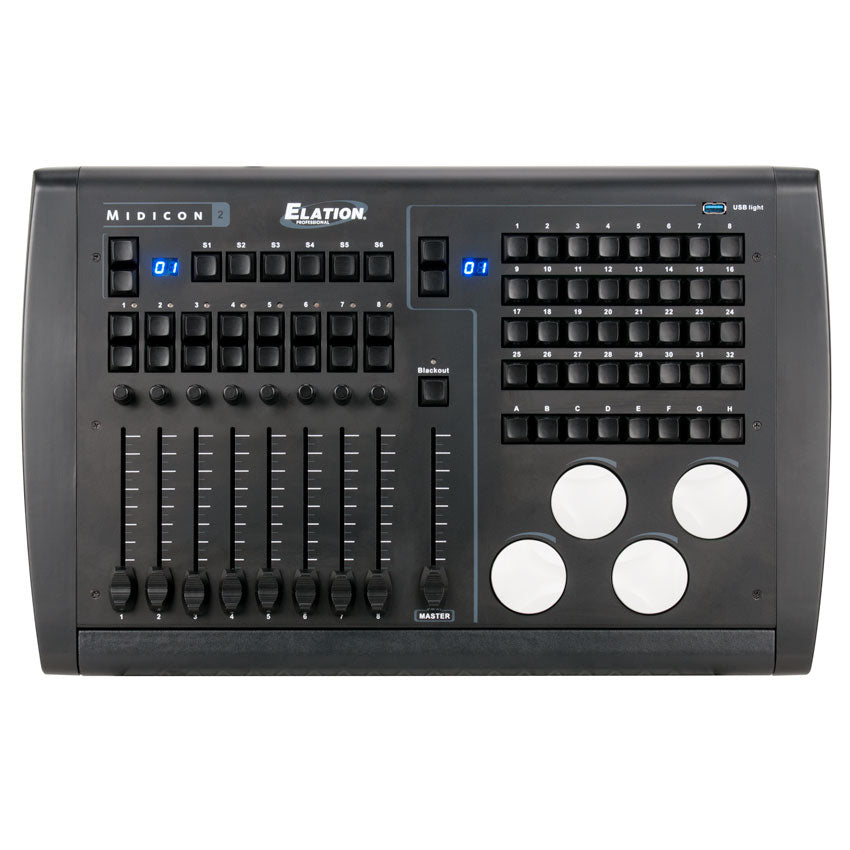

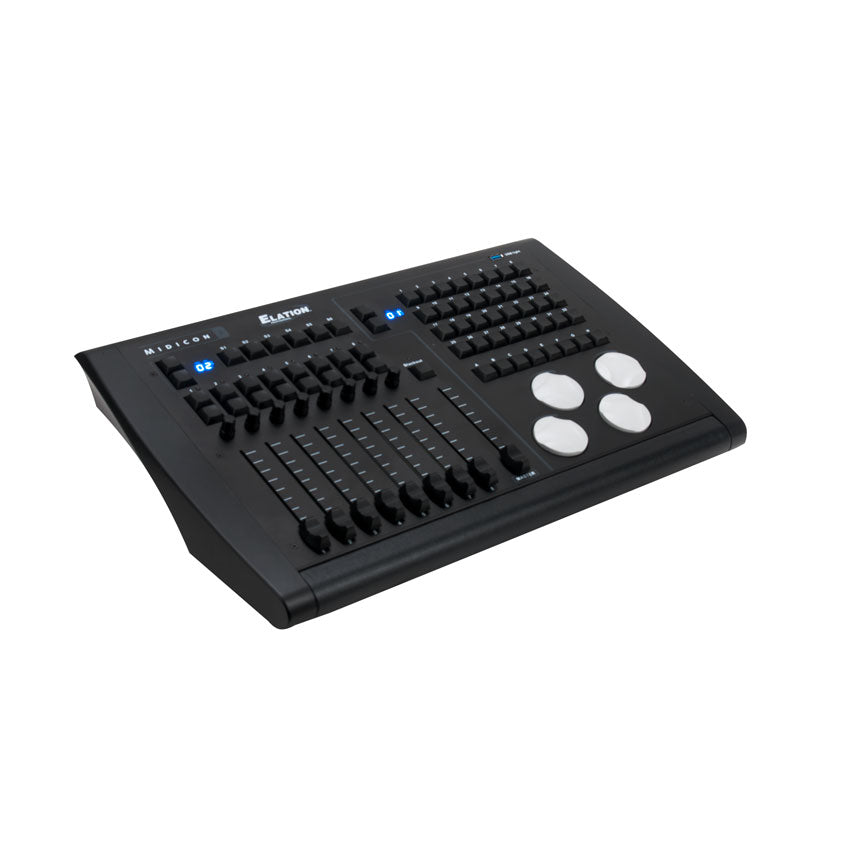

MIDICON-2

Features

USB Powered

Tactile Spring Loaded Buttons

(6) General Purpose Buttons

(1) Master and (8) Control 100mm Faders

(16) Playback Page Buttons Above Faders

(8) Rotary Dials with Push-In Selection Above Faders

(1) Blackout Button

(32) Instant Effects or Scene Calling Buttons

(8) Bump / Momentary Effect Buttons

(4) Rotary Encoder Wheels with Push-In Selection

USB Input for Gooseneck Work Light (not included)

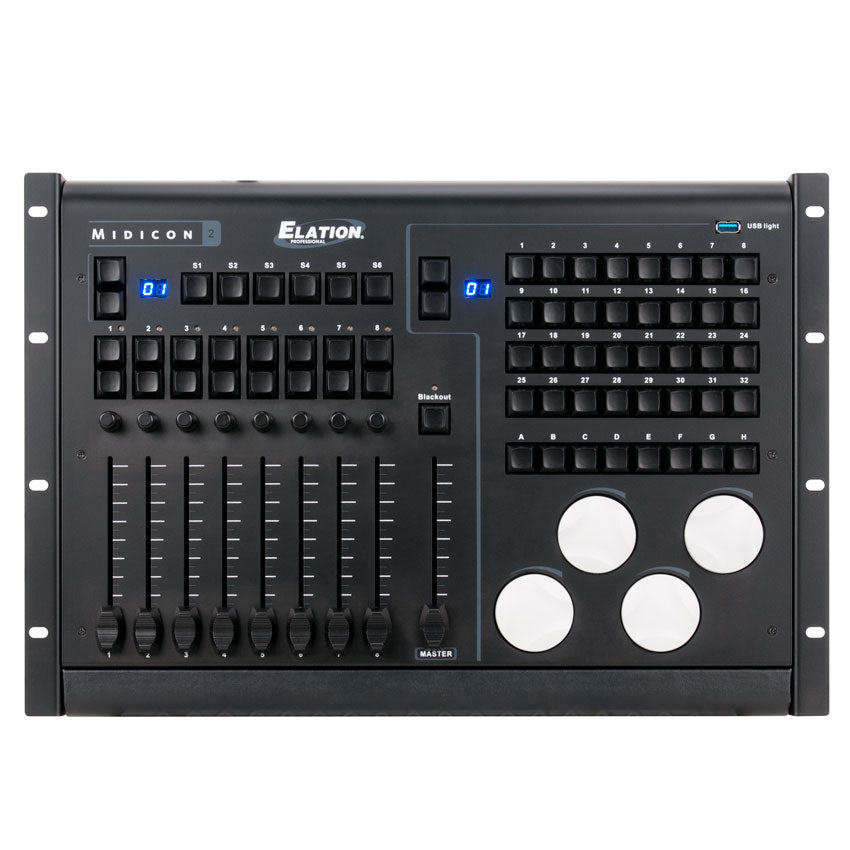

Removable Outer Case for 6U Rack Mounting

Rack Mount Kit Included

Kensington™ Security Device Slot

Resources

Specifications Sheet

User Manual

Dimensional Drawing

CAD Drawing

Specifications

CONTROL / CONNECTIONS
(6) General Purpose Buttons
(1) Master and (8) Control 100mm Faders
(16) Page Playback Buttons Above Faders
(8) Rotary Dials with Push-In Selection Above Faders
(1) Blackout Button
(32) Instant Effect or Scene Calling Buttons
(8) Bump / Momentary Effect Buttons
(4) Rotary Encoder Wheels with Push-In Selection

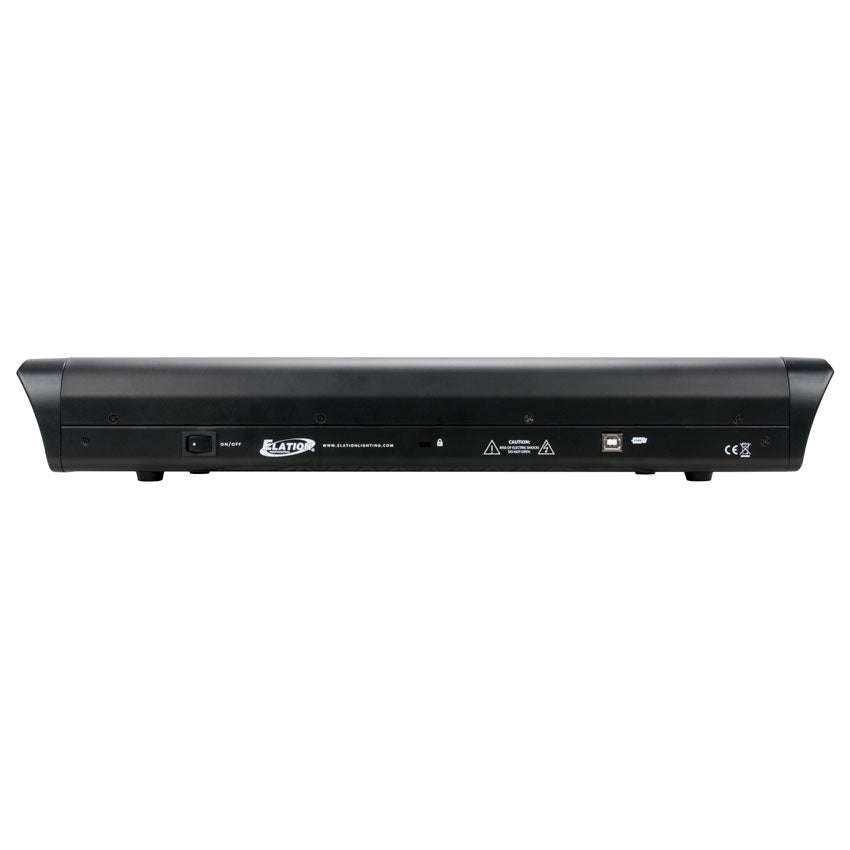

USB 2.0 Type “B” Port


SIZE / WEIGHT
Length: 20.2” (514mm)
Width: 12.9” (328mm)
Vertical Height: 3.6” (91mm)
Weight: 15.0 LBS. (6.8 kg)


INCLUDED ITEMS
USB Cable
Rack Mount Kit


Specifications and documentation subject to change without notice.
