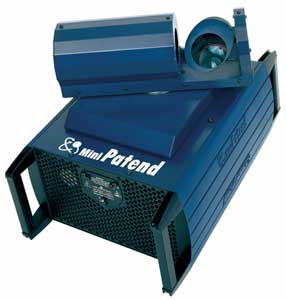

Mini Patend

Features

A smaller version of the Patend1200 This fixture uses a scanning mirror effect on a 360º rotating base. With very smooth slow movements and incredible fast rotations, the Mini Patend produces fantastic energetic effects! It is equipped with 19 Gobos, 19 Dichro-colors, motor focus, high speed shutter and dimmer. The 150W discharge lamp makes this unit useful for many applications.

Resources

User Manual

Specifications

Specification Data

• DMX 512 Standard
• 16-Bit Resolution (13 DMX Channels)
• Digital Display
• Roto head technique without any mechanic stops
• Positioning Pan / Tilt 360°
• Maximum Head-speed 4 rounds per second
• Maximum Tilt-speed 4 rounds per second Optical System

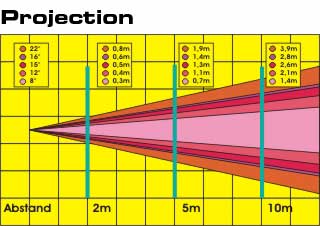

• 14º beam angel
• Anti-reflection coated lens Features & Specs

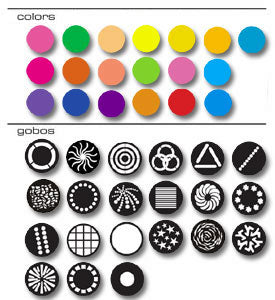

• 19 Dichroic colors + white
• 19 Gobos + open
• Shutter
• Dimmer
• Remote focus
• Sound to light function
• Music controlled
• Stand-alone function
• High Speed Shutter Lamp Source & Cooling
• Included lamp: CDM-150W 6000H/4200k
• Optional lamp: HSD-150, 3000hrs
• Noiseless and regulated fan Technical Data
• Power Consumption: 300w
• AC 115V/60Hz
• Fuse: T3.15A GMA
• Dimension: 16.5”x 11.5”x 11.5” (425 x 285 x 285mm)
• Weight: 24lbs. (11kg)
