Nano Hog 4
Nano Hog 4

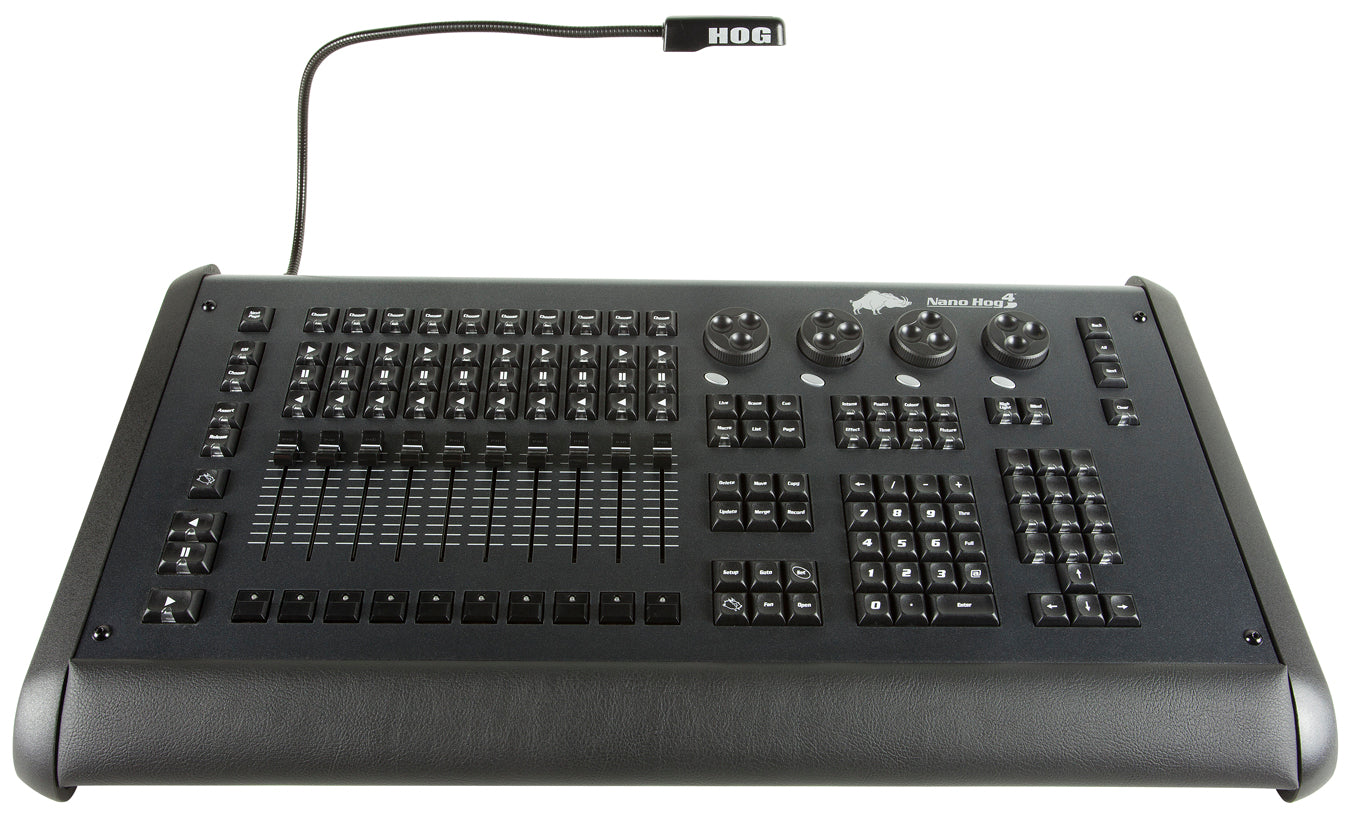

Coupled with Hog 4 PC, the Nano Hog 4 provides the user with a single unified surface, turning a laptop or desktop into a fully fledged, powerful and intuitive lighting console. Any PC running Hog 4 PC can connect to the Nano Hog 4 over USB creating a state of the art control surface. Utilizing the same front panel as the Road Hog 4, users will immediately feel at home on the Nano Hog 4. There are also two slots for the optional addition of either Super Widgets and/or MIDI/LTC Widgets.
Features
USB connection to Hog 4 PC

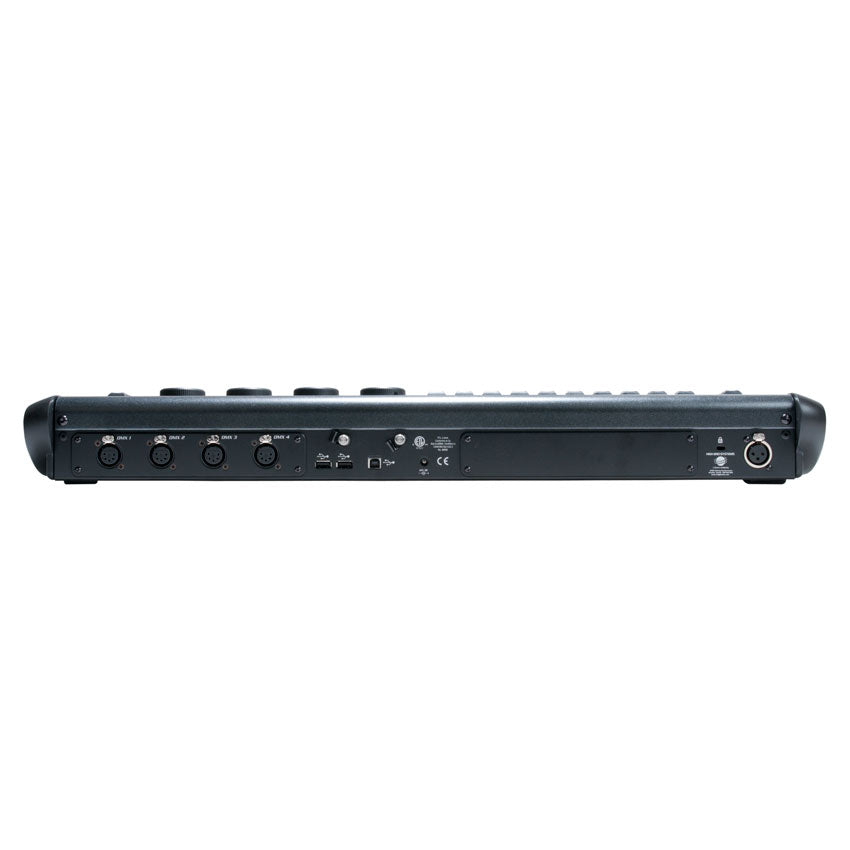

2 x Widget Expansion slot provides up to 8 DMX outputs and/or 2 MIDI/LTC inputs from PC based products (when optional Widgets are installed)
Socket for a Hog LED desklight (supplied), fully dimmable
LED Desklight and feedback LEDs dimmable
Sleek Road Hog 4 styling
Status LEDs for power, data, and expansion
Two USB sockets
Dust cover included
4 Encoders
Twelve User Keys
Ten playback faders
Auto-ranging external PSU mains input (90-250VAC)
Dust cover included
Optional Custom Road Case available
Resources
Guides/ Manuals
- Hog4 User Manual ver 2.2.0
- Visualizer Connectivity Driver v2.1.0
- Nano Hog 4 Tech Drawing as PDF
- Nano Hog 4 Tech Drawing as DWG
- Nano Hog 4 Tech Drawing as DXF
- Hog4 User Manual ver 3.5.0
Related Categories
Specifications
SIZE / WEIGHT
Length: 26.7” (678.18mm)
Width: 13.76” (349.5mm)
Vertical Height: 3.54” (89.91mm)
Weight: 18.1 lbs. (.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
5W Max Power Consumption
APPROVALS
CE | cETLus
INSTALLATION
Any Flat Surface
INCLUDED ITEMS
(1) External DC Power Supply (5.5A/12V)
(1) LED Desklight (3pin XLR)
(1) Dust Cover
HOG 4 2.0 SOFTWARE FEATURES
Cross Platform and Forward Only Compatible
Use Hog 3 Show Files
CLICK HERE TO REQUEST A FIXTURE LIBRARY
https://www.highend.com/hes-support/common-forms/fixture-libs
Requests may take up to 14 days to complete
Specifications and documentation subject to change without notice.
