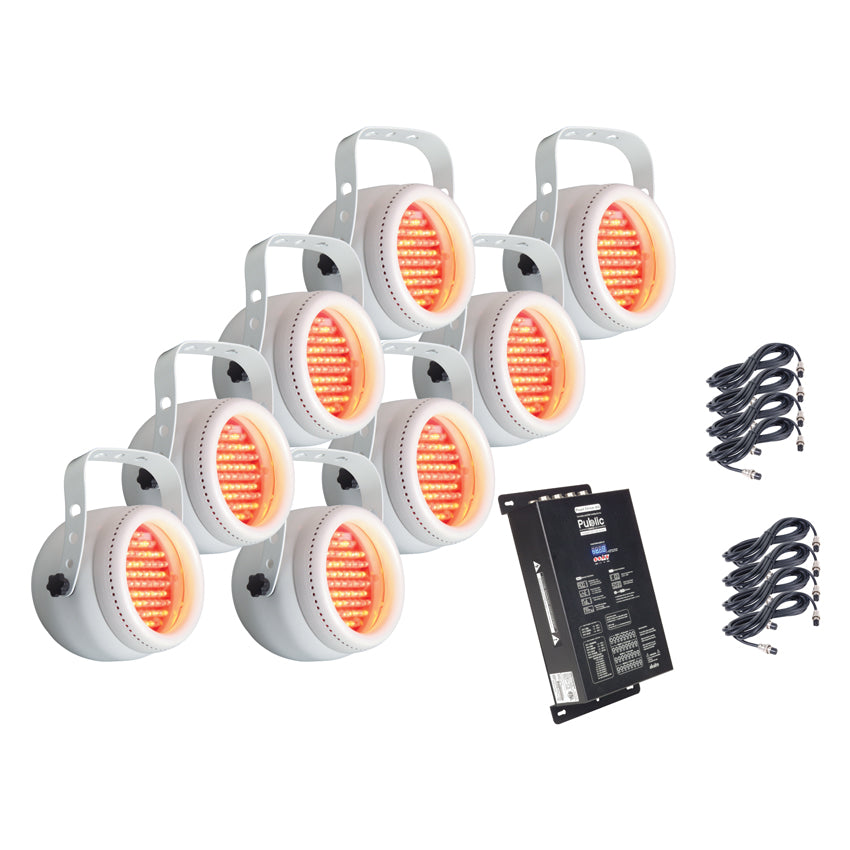

Octopod 80 System

Features

Sku# OCTOPOD 80
 Sku# OCTOPOD 80 B
 . 8 x Octopod-80 Fixture Units
 . 80 x LEDs Per Surface Each
 . Light Weight Aluminum Case Design

 The Alkalite LED lighting system offers endless color possibilities to modify your surrounding.

 This system does not produce infra-red and ultra violet light. Therefore, heat production is minimized, avoiding discoloration of objects being lit. This special feature gives the Alkalite LED lighting systems the flexibility for numerous types of applications such as architectural/retail spaces, stage, video/film productions, night clubs, art galleries museums and much more.

 This solid-state lighting system has been designed for easy installation and safe energy efficient, long life operation. The combination of Red, Green and Blue LEDs offers a tremendous range of colors with smooth transitions from one color to the next.

Resources

User Manual

Specifications

Colors
 . RGB additive color mixing
 . Color macros

 Shutter/Dimmer
 . Electronic dimming 0-100%
 . Electronic strobing 1-29fps
 . Variable speed strobe pulse effect

 Light Source
 . 80 x LEDs per surface each
 . 27 red, 35 blue, 18 green LEDs

 Control
 . Must use Pixel Drive X
 . Maximum 8 pods per controller
 . Unit addressing switch

 Operation Parameters
 . 2 x hanging brackets
 . Light weight aluminum case design

 Power Supply
 . Power Supply: Voltage: 0-10V Analog
 . Must use Pixel Drive X

 Connectors
 . 5 pin input connections on rear panel
 . Parallel connection system

 Included In Each Kit
 . 8 x Octopod-80 fixture units
 . 1 x Pixel Drive X Controller
 . 4 x 5 pin 3 meter cables (Part # CCS-53)
 . 4 x 5 pin 6 meter cables (Part # CCS-56)

 Dimensions and Weight Per Pod
 . Dimensions (Ø - each pod): Ø 6.5"x 4.5" / 165 x 114.3mm
 . Weight (each pod): 1.5 lbs / 0.68 kgs

 Approvals
 . PD-60 & PD-80 are ETL approved!
