Opti Quad Par
Opti Quad Par
Features . 18 x 5W Quad RGBW LEDs . New Quad Color Technology . Digital LCD Display . High Tech Case Design . Smooth Dimming Control . Universal Input Voltage . Power Con In/Out
Features
Resources
Guides/ Manuals
- Opti Quad Par Cut Sheet
- Opti Quad Par User Manual
- Opti Quad Par Photometric Data
- Opti Quad Par IES Files
- Opti Quad Par DMX Traits ver 1
- Opti Quad Par DMX Traits ver 2
Related Categories
Specifications
Colors
. 18 x 5W Quad RGBW LEDs
. Superior color mixing
. Gel Frame Included
Shutter/Dimmer
. Strobe effect (1-18 flashes per second)
. Dimmer: Master Dimmer (7 ch mode)
Light Source
. 497 Lux / 46 FC at 3m / 10’ at full. Quad RGBW LEDs 18 x 5W LEDs
. Lamp Life: 50,000 hrs. life
Optical System
. 10° standard beam angle
Control
. DMX controllable via 6 DMX modes: 1,2,4,5,7 & 8
. 4 Digit LCD display
. USITT DMX-512
. Stand-alone programs
. Primary/Secondary
. Flicker Free
Operation Parameters
. IP Rating: IP 20
. Rigging: Split yoke bracket: floor-stand or mount
Power Supply
. Electronic power supply
. Power Supply: AC100~240V 47~63HZ
. Power Consumption: 140W Max

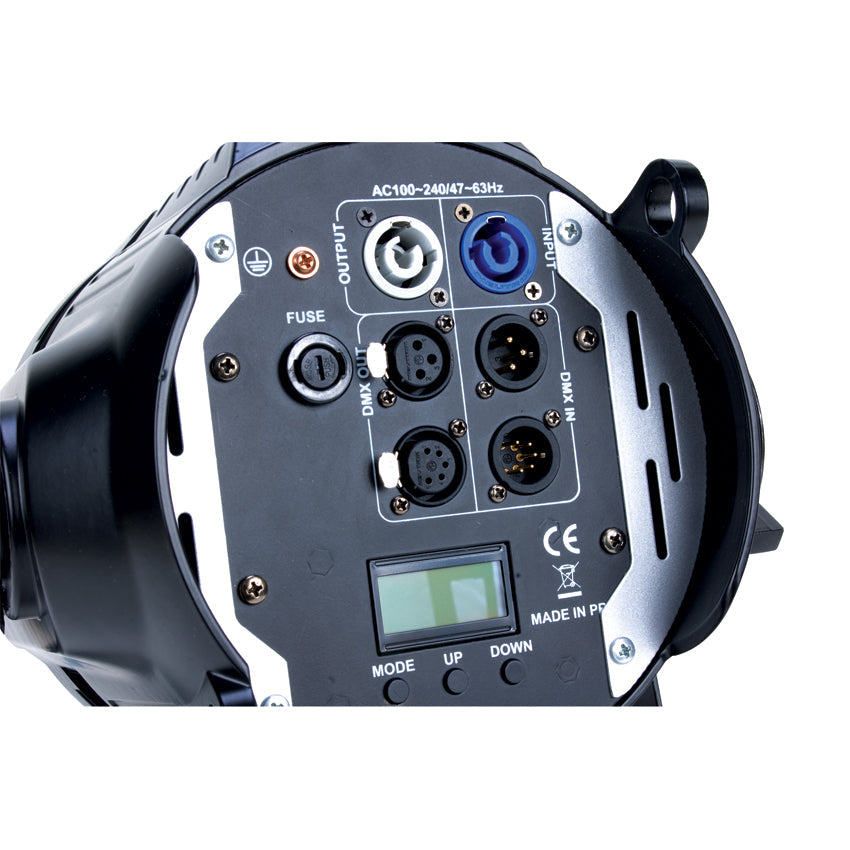

Connectors
. 3 pin ans 5 pin XLR data input & output
. Plug Type: power con in and out power link
Dimensions and Weight
. Dimensions: (LxWxH) 11” x 8.7” x 14” / 278.1 x 220.6 x 358mm
. Weight: 10.6 lbs / 4.8kg
Approvals
. CE Approved
. ETL Approved
