OPTI TRI 30

Features

 Compact TriColor LED High Power Par Can (ETL Approved)

 Features
 . 7 x 3-in-1 RGB, 3 Watt Per Lens
 . New TRI Color LED Technology
 . 10° beam angle (optional 25° lens kit available)
 . Sturdy, high-impact aluminum construction
 . Case Color: Black
 . Very low power consumption
 . Very low heat output

Resources

User Manual

Specifications

Colors
 . 7 x 3-in-1 RGB, 3 Watt Per Lens
 . Tri-color LED technology
 . Improved color mixing
 . No multi-color shadows

 Shutter/Dimmer
 . Strobe: 1-18 flashes per second
 . Dimmer: Dimming 0-100% in 2, 4, 6 & 7 channel mode

 Light Source
 . Lux: 10° Beam Angle: 1456 Lux / 135 FC @ 3m /10’ at full
 . Lux: 25° Beam Angle: 320 Lux / 30 FC at 3m / 10’ at full
 . SSC-Tri RGB, 7 x Tri RGB, 7 x 3W LEDs
 . Lamp Life: 50,000 hrs. life

 Optical System
 . 10° beam angle (optional 25° lens kit available)
 . Extreme bright beam

 Control
 . 7 DMX channels, 6 channel modes

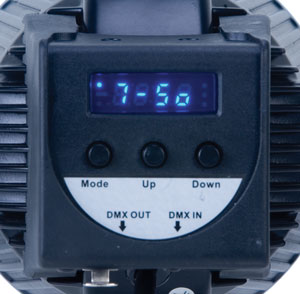

 . LCD digital control display
 . USITT DMX-512
 . Macros: Yes
 . Master/Slave
 . On Board Control
 . Stand Alone
 . Flicker Free
 . 4 operational modes: Sound Active, Macro, Auto, & DMX
 . Cooling: Convection Cooled

 Operation Parameters
 . IP Rating: IP 20

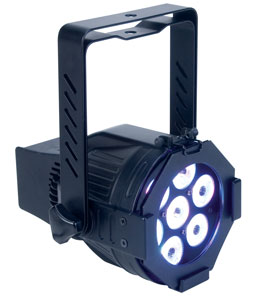

 . Rigging: Split Yoke Bracket / safety and data cable optional

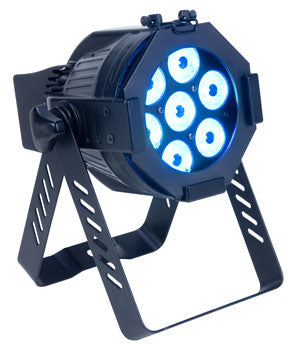

 . Double hanging brackets - may be set on the floor

 Power Supply
 . Electronic, multi-voltage internal PSU
 . Power Supply: 90-240V 50/60Hz
 . Power Consumption: 30W

 Connectors

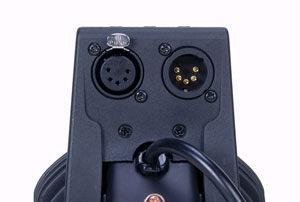

 . 5 pin XLR data input & output
 . Cable / Plug Type: PPG 120v US

 Dimensions and Weight
 . Dimensions: (L?x?W?x?H) 10” x 7.5” x 5.5” / 254 x 190.5 x 139.7mm (without hanging bracket)
 . Weight: 5.3 lbs / 2.4 kg

 Approvals
 . ETL Approved

 Optional Accessories

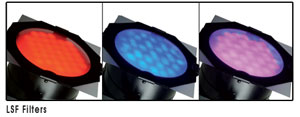

 . LSF filters
