PALADIN

Features

IP65 Rated Strobe Wash Blinder Luminaire

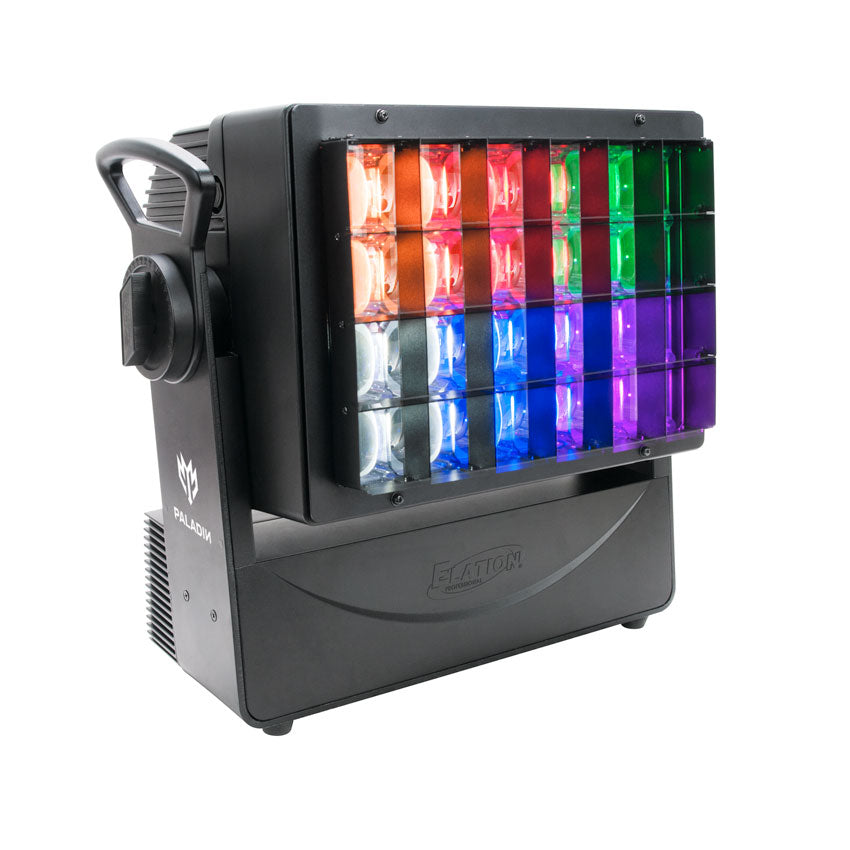

(24) 40W 4-in-1 RGBW LEDs
Motorized Zoom and Manual Tilt Adjustment
Pixel Zone Control
64 Color Presets and 15 Unique Program Macros
16-Bit Dimming and Variable Dimming Curves
Flicker Free for TV and FILM
Adjustable Refresh Rate Frequency and GAMMA
Rugged Die-Cast Aluminum Exterior

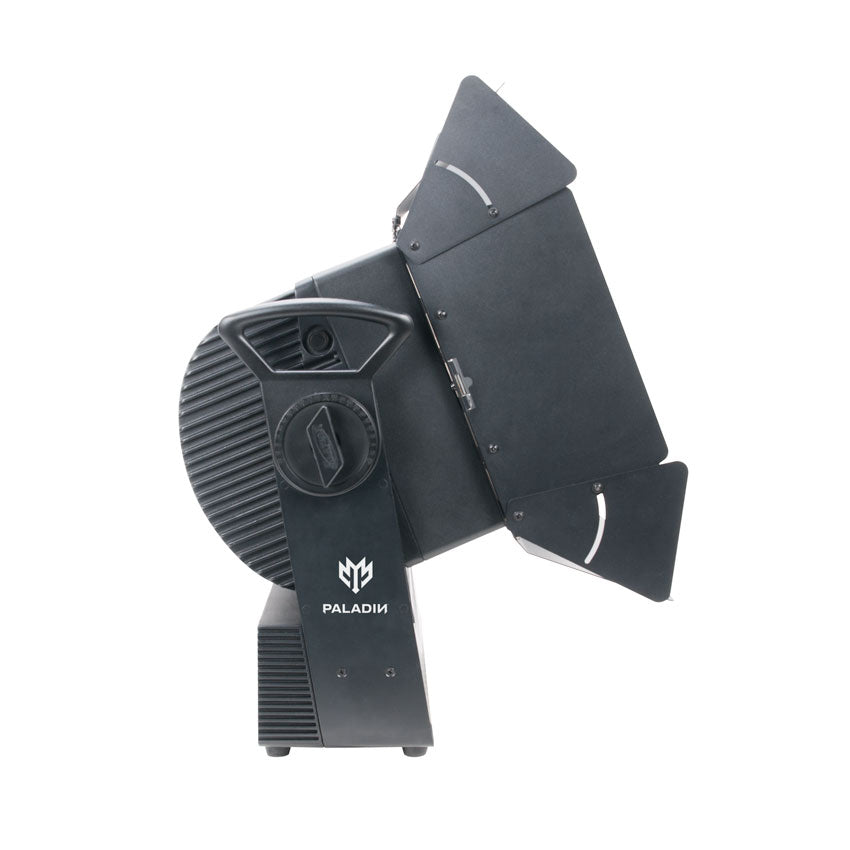

Optional Barn Doors and Egg Crate Available

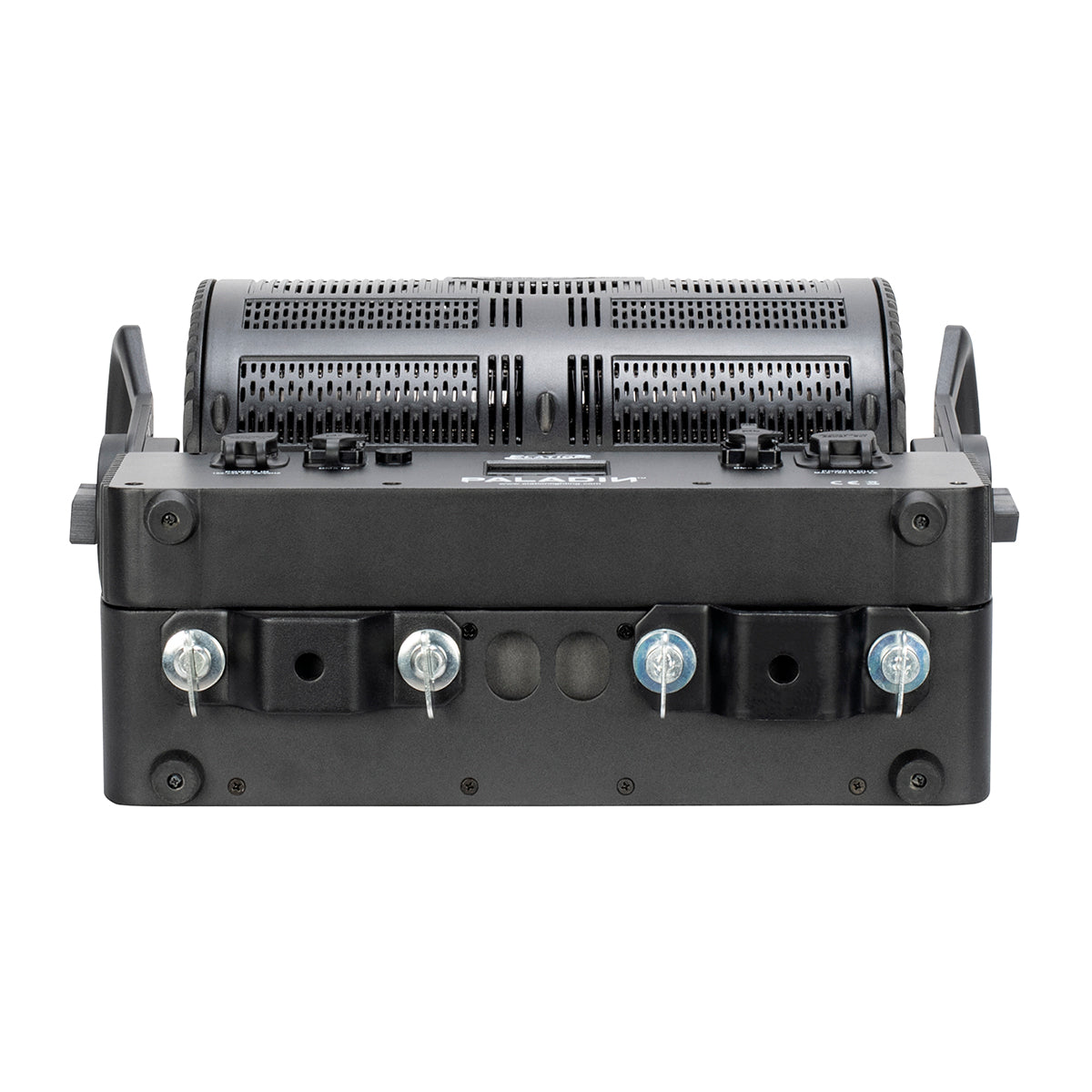

Dual Quick-Lock Omega Bracket Rigging Option


Resources

Specifications Sheet

Photometric Test Report

Photometric IES File

DMX Traits

Dimensional Drawing

CAD Drawing

User Manual

Vectorworks Symbol

Specifications

SOURCE
(24) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
79,252 LUX 7,362 FC @9.8’ (2m) (6° Full ON)
6,848 LUX 636 FC @9.8’ (2m) (32° Full ON)

COLOR
RGBW

EFFECTS
Pixel Zone Control
64 Color Presets and 15 Unique Color Macros
Electronic Strobe
16-Bit Dimming and Variable Dimming Curve Modes

CONTROL / CONNECTIONS
6° to 32° Motorized Zoom
Manual 210° Tilt Movement
Multiple DMX Channel Modes (33 total channels)
Adjustable Refresh Rate and Gamma Brightness

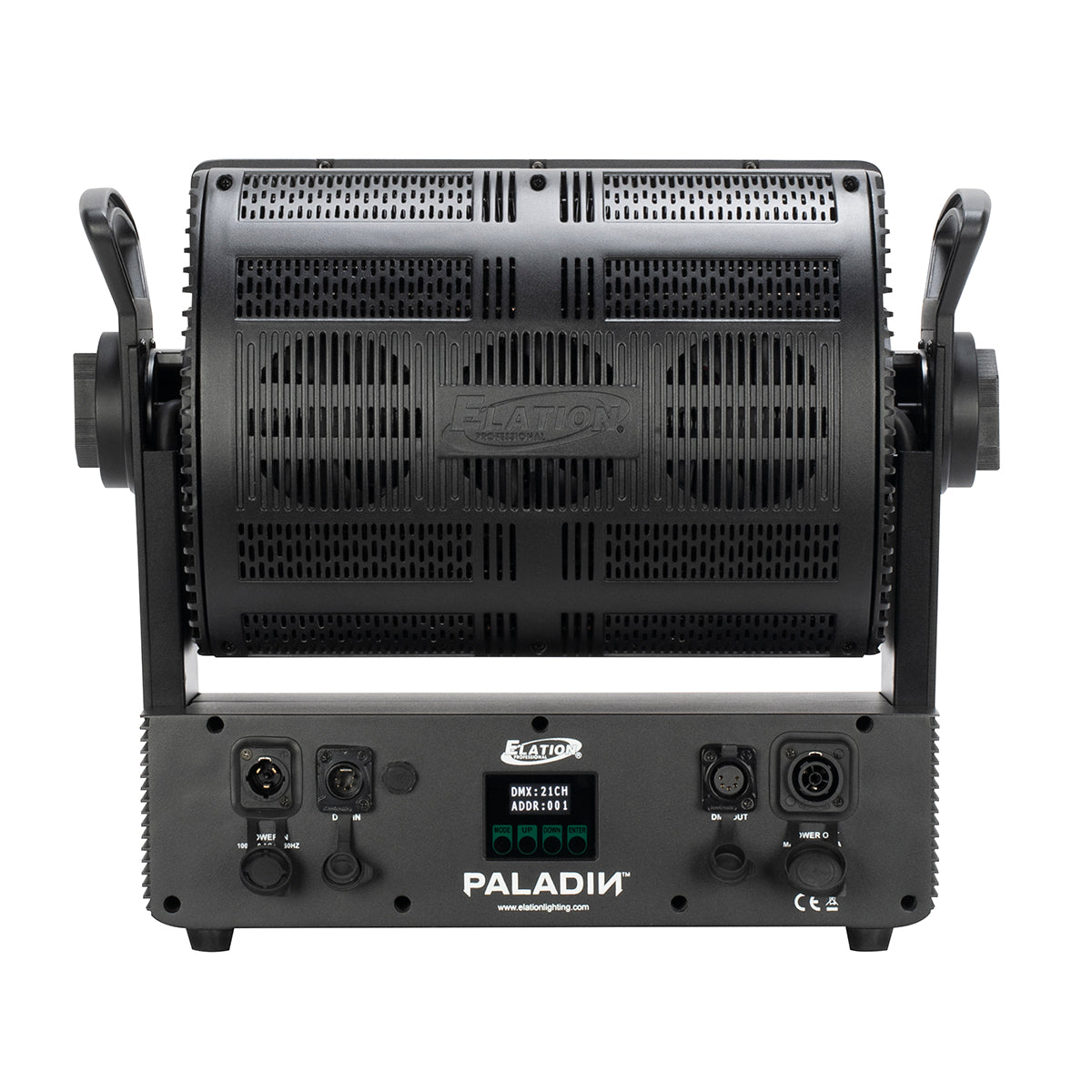

4 Button Control Panel and LCD Menu Display
RDM (Remote Device Management)

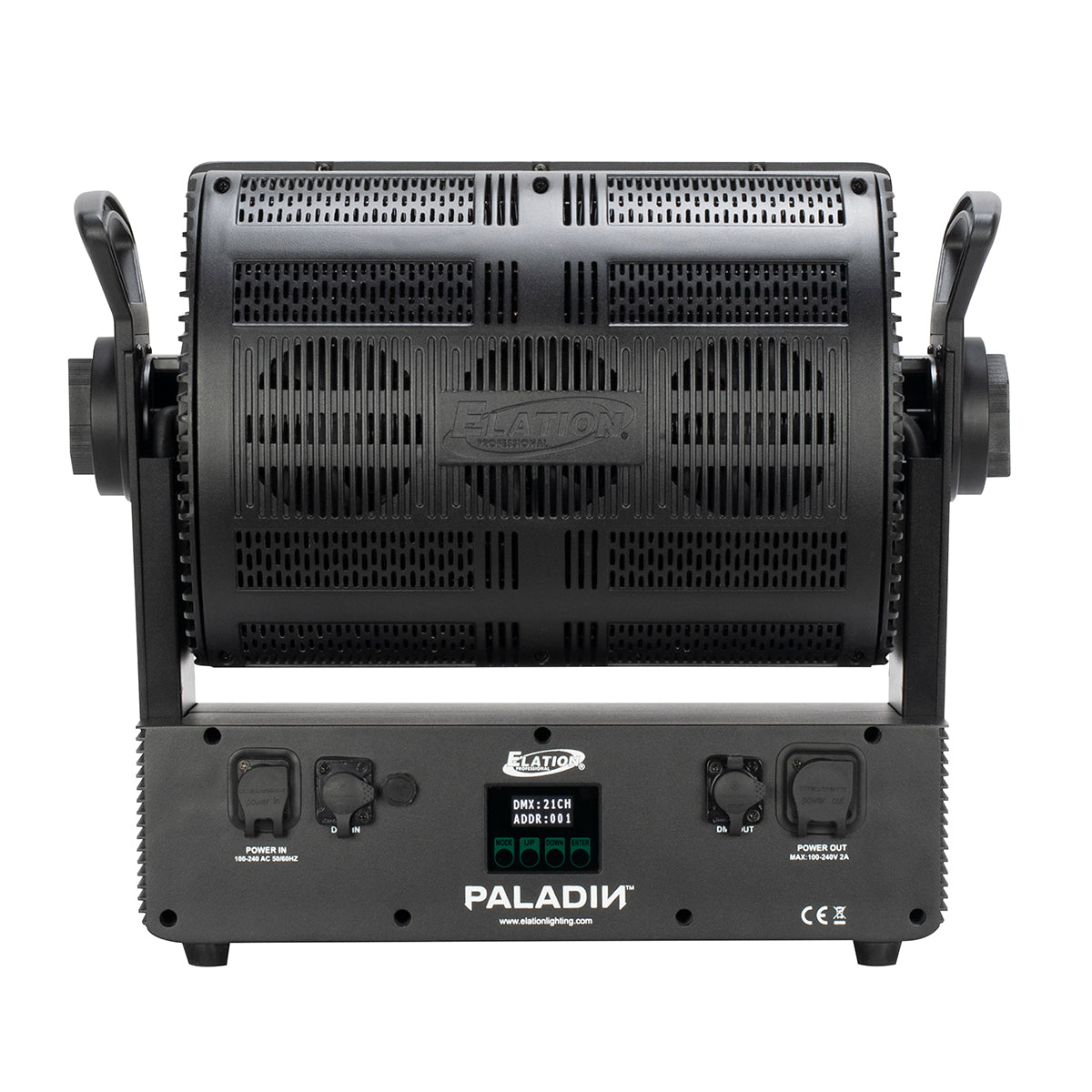

IP Rated 5pin DMX In/Out
powerCON TRUE1 In


SIZE / WEIGHT
Length: 16.4” (478mm)
Width: 11.2” (233mm)
Vertical Height: 16.0” (407.5mm)
Weight: 46.0 lbs. (20.9 kg)


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
990W Max Power Consumption
5°F to 113°F (-15°C to 45°C)


APPROVALS / RATINGS
CE | IP65


Specifications and documentation subject to change without notice.
