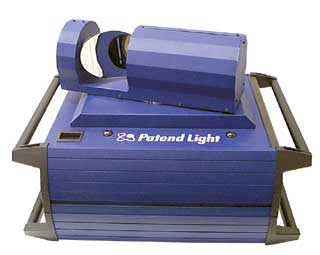

Patend Light 1200

Features

Resources

User Manual

Specifications


• 5 gobos plus spot / 4 rotate & 2 stationary
 (all 6 slots are interchangeable - 37 mm)

• Wheel with 6 Effects

• 9 dichroic colors + 3 color filters
 creates 36 possible colors & 36 possible split colors

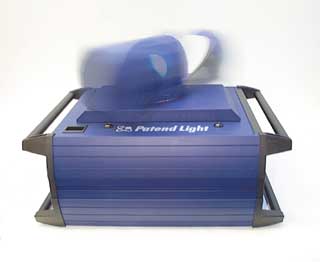

• Head rotates 360 degrees continuously without stopping

• Microstepping - (Min.) 1 x 360 degree rotation per 8 minutes
 (Max) 7 x 360 degree rotations per second

• Separate gobo / color / effects wheels

• Split & seamless colors

• Smooth stepper motors

• DMX-512 protocol

• Linkable via XLR cable

• High speed iris

• Aluminum casing

• 17 DMX channels

• Operates via Show Designer or any DMX controller

• 2 prisms that rotate in both directions (3-sided & 5-sided prism)

• 1 fixed prism

• Dimmer/shutter

• Cooled via axial fan

• Control panels with clear setting of DMX addressing,
 indication of working hours, lamp hours, test mode &
 2 built-in temperature sensors

• Mountable in multiple positions

• Lamp Source: ZB-HMI1200 1200W, 750 hr.

• Dimensions: 17.5” x 13.25” x 12” (444 x 337 x 305 mm)

• Weight: 85 lbs (38.5 kg)

• 220V operation only
 MP-PATENT

• Mounting plate (optional)
