Platinum Beam 5R EXTREME
Platinum Beam 5R EXTREME
The Platinum Beam 5R EXTREME™ features the 189W Platinum 5R lamp, a 3° sharp pin spot beam, 8 facet rotating prism and frost effects, super fast 16 bit 3-phase pan/tilt motors, strobe (1-18 fps), dimming 0-100%, and focus, (12) colors including UV, CTO, CTB, and white, (8) metal rotating, indexing, interchangeable gobos, flicker free operation for TV and FILM, internal EWDMX wireless DMX receiver, remote device management protocol support, 3pin and 5pin DMX in/out and power in connections, (6) button touch control panel, 350W max power consumption, and a multi-voltage universal auto switching power supply (120-240v).
Features
3° Sharp Pin Spot Beam
CTO and CTB Color Correction
8 Facet Rotating Prism and Frost Effects
Super Fast 16 bit 3-Phase Pan and Tilt Motors
Flicker Free Operation for TV and FILM
Internal EWDMX Wireless DMX Receiver
Remote Device Management Protocol Support
Resources
Specification information
Guides/ Manuals
- PLATINUM BEAM 5R EXTREME Color Wheel Gel Reference
- PLATINUM BEAM 5R EXTREME User Manual
- IMPORTANT TECHNICAL INFORMATION
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- PLATINUM BEAM 5R EXTREME Vectorworks 2013 Symbol
- PLATINUM BEAM 5R EXTREME Vectorworks 2014 Symbol
- PLATINUM BEAM 5R EXTREME Vectorworks 2015 Symbol
- PLATINUM BEAM 5R EXTREME Vectorworks 2016 Symbol
Related Categories
Specifications
Philips 189W Platinum 5R Lamp
3,000 Hour Average Life*
*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.
PHOTOMETRIC DATA
100,100 LUX 9,299 FC @49.2’ (15M)
EFFECTS
Frost
Motorized Focus
Strobe (1-18 fps)
Electronic Dimming: 0% - 100%
8 Facet Rotating Prisms and Macros
COLOR
(11) Colors Including UV, CTO, and CTB
GOBOS
(8) Metal Rotating, Indexing, Interchangeable Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (12 / 14 / 18)
Remote Device Management
Pan Movement: 540°/630° / Tilt Movement: 270°
6 Button Control Panel
Full Color 180° Reversible LCD Menu Display
16 Bit 3-Phase Pan/Tilt Motors

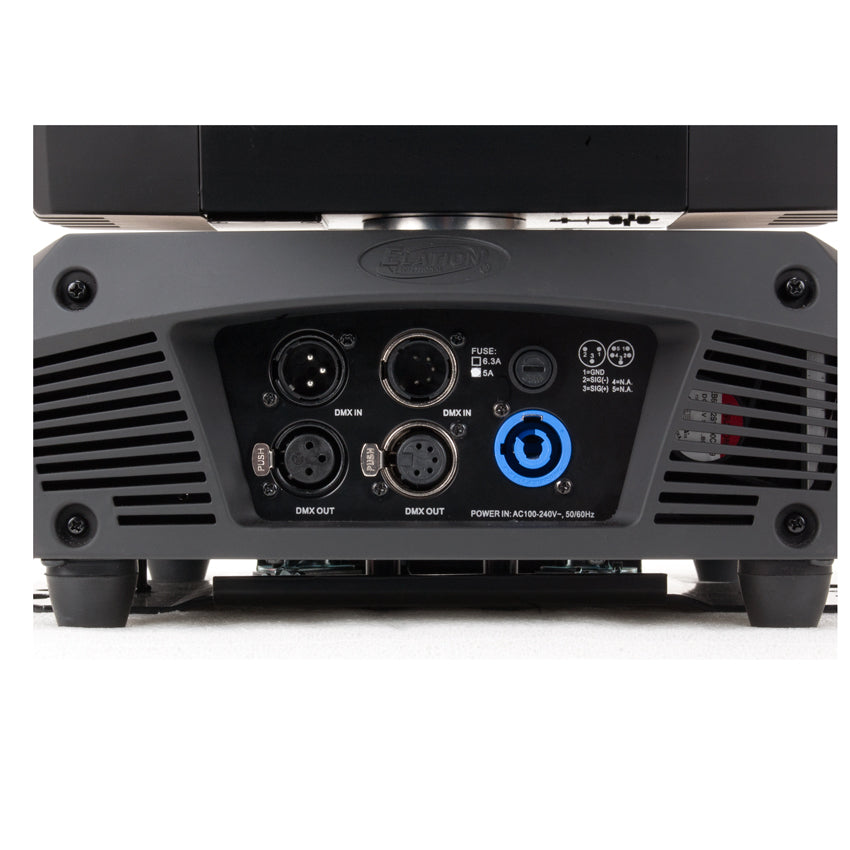

3pin & 5pin DMX In/Out
power In
Internal EWDMX Wireless DMX Receiver (Not compatible with E-FLY)
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 13.9” (352mm)
Width: 13.0” (329mm)
Vertical Height: 20.0” (509mm)
Weight: 44.0 lbs. (20.0 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
