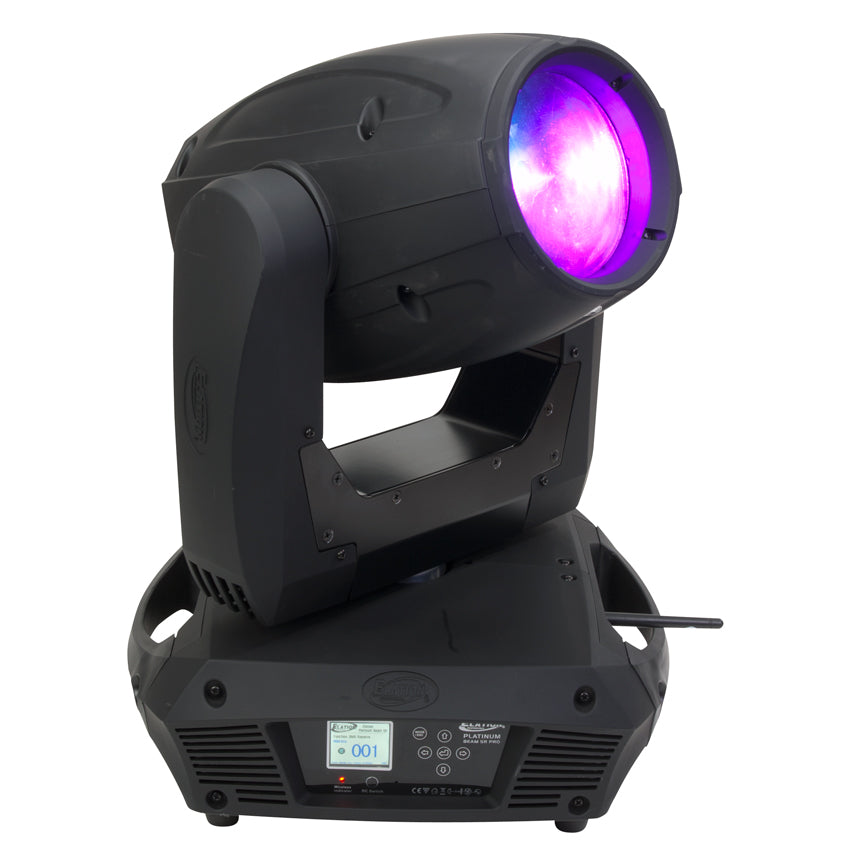

Platinum Beam 5R PRO
Platinum Beam 5R PRO
Features • Razor Sharp 2.5° Very Narrow Beam • Uses Philips MSD Platinum 5R Lamp • 8 Facet Rotating Prism • 12 Dichroic Colors • 8 Rotating / Indexing Gobos • Stepless Frost Filter (Hybrid) • EWDMX Wireless DMX
Features
• Razor Sharp 2.5° Very Narrow Beam
• Uses Philips MSD Platinum 5R Lamp
• 8 Facet Rotating Prism
• 12 Dichroic Colors
• 8 Rotating / Indexing Gobos
• Stepless Frost Filter (Hybrid)
• EWDMX Wireless DMX
Resources
Specification information
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications
• Philips MSD Platinum 5R Lamp - 3,000 Hour Average Life*
*Applies to Philips™ 5R lamps with a production date of February 25, 2015, or later. Actual lamp life may vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.
• 56230 Lux @ 2.5m @2.5°
• 2.5° beam angle
• Built in EWDMX receiver for wireless DMX (Not compatible with E-FLY)
• No need for cleaning or adjustment of reflector or lamp
• All lenses are anti-reflection coated
• 1 color wheel with total 12 colors + white
• Variable speed color scrolling both directions (rainbow)
• 1 gobo wheels with 8 interchangeable (quickout)
• Gobo wheel: 8 indexable, rotating gobos plus open
• Variable speed gobo scrolling in both directions
• Gobo Size: 14.0mm outside, 6mm image diameter
• Rotating, indexing prism: 8-facet
• Macro-function for rotating gobo/prism combinations
• Variable Frost Filter (Hybrid effect for Wash)
• Dual flag mechanical dimming system
• Variable speed strobe effect
• Preset variable/random strobe and dimming pulse effects
• Automatic Pan / Tilt position correction
• Maximum Pan-movement 630° or 540°/ 16 bit
• Maximum Tilt-movement 265° / 16 bit
• 3 Phase motors for fast, accurate Pan / Tilt positioning
• Vector Mode with blackout MIB function
• Battery powered and colored LCD Display
• 16 DMX channels USITT DMX-512 (16-bit resolution)
• Customizable DMX channel assignment
• DMX, stand-alone, Primary/Secondary, sound activated mode
• DMX recorder and edit function integrated
• Software update via DMX, using optional E-Loader
• 3-pin and 5-Pin XLR serial input/output
• With Wired Digital Communication Network
• Fan cooled - fans regulated automatic or DMX
• Constant temperature readout / management function
• DB rating @ 1M = 55.73db
• 2 x 1/4 turn fastening Omega Clamps
• Electronic ballast and power supply
• Power consumption: 338W max.
• Voltage: AC 100V ~ 240V 50/60Hz
• Dimensions (LxWxH): 360x330x470 mm
• Weight: 14.5 kg
Specifications and documentation subject to change without notice.
