Platinum HFX
Platinum HFX
The Platinum HFX™ is a hybrid versatile 3-in-1 luminaire which can be utilized as a beam, spot, or wash fixture, featuring the brand new Philips™ MSD Platinum 14R 280W 80CRI lamp, 7,800K, 12,000 total lumens, 2.3° to 15° zoom in beam mode, 3° to 22° zoom in spot mode, and 10° to 34° zoom in wash mode, 13 dichroic colors including UV and a new Quad Color (RGBY) filter, CTO and CTB color correction, 8 rotating-interchangeable and 12 static-stamped gobos, 8-facet and linear rotating, and 10-facet static prisms, wash frost effects, DMX, RDM (Remote Device Management), Art-NET, and sACN support, 5pin DMX, RJ45 Ethernet, and power cable in/out connections, (6) button control full color 180° reversible menu display, and a multi-voltage universal auto switching power supply (100-240v).
Features
Hybrid Beam, Spot, and Wash 3-in-1 Luminaire
12,000 Total Lumens, 7,800K, 2,000 average hours*
2.3° - 15° Beam, 3° - 22° Spot, and 10° - 34° Zoom
10-Facet, 8-Facet, and Linear Prisms / Wash Frost Effects
13 Dichroic Colors Including UV and Quad Color (RGBY)
CTO and CTB CTO Color Correction
8 Rotating Interchangeable + 12 Static-Stamped Gobos
RDM Art-NET (DMX Over Ethernet), sACN Protocol Support
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
PHOTOMETRIC DATA
Drawings
CAD File
CAD File
- PLATINUM HFX Vectorworks 2014 Symbol
- PLATINUM HFX Vectorworks 2015 Symbol
- PLATINUM HFX Vectorworks 2016 Symbol
Related Categories
Specifications
Philips™ MSD Platinum 14R 280W Lamp
2,000 Hour Average Lamp Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
12,000 Total Lumens, 7,800K, 80CRI
125,800 LUX 11,687 FC @49.2’ (15m) (2.3° Beam)
13,375 LUX 1,243 FC @49.2’ (15m) (3.0° Spot)
11,500 LUX 1,068 FC @16.4’ (5m) (10.8° Wash)
EFFECTS
8-Facet and Linear Rotating and 10-Facet Static Prisms
Strobe and Mechanical Dimming
Zoom, Iris
COLOR
13 Dichroic Colors Including UV and Quad Color (RGBY)
CTO and CTB Color Correction
GOBOS
(2) Gobo Wheels
(8) Interchangeable / Rotating / Indexing Gobos
(12) Static-Stamped Gobos (Indexing Wheel)
CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 26)
RDM (Remote Device Management)

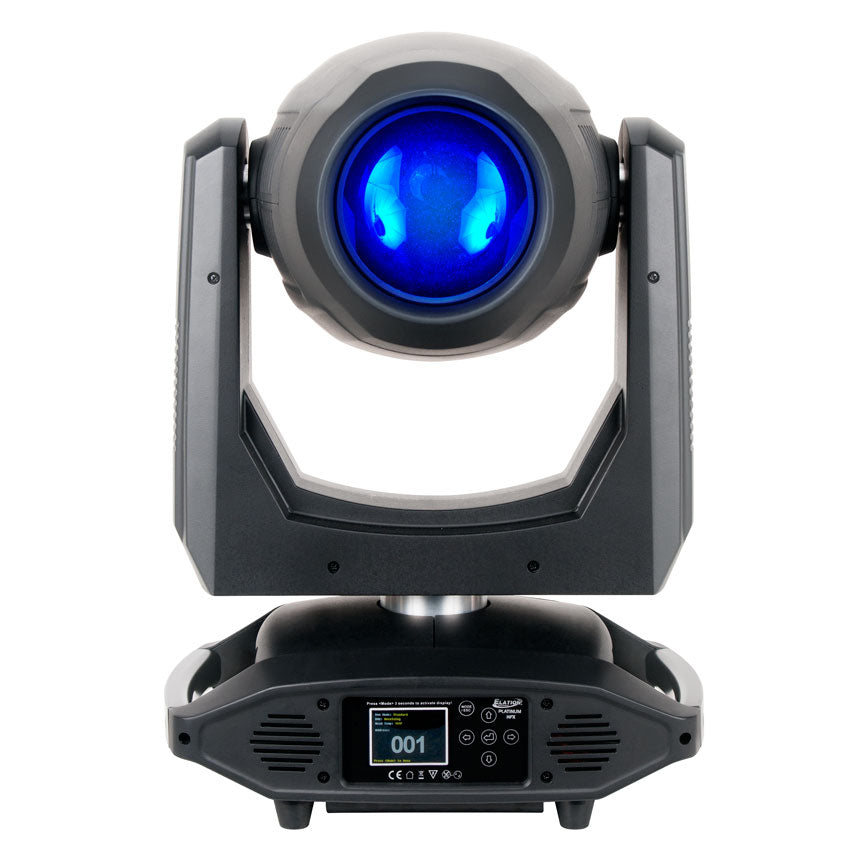

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

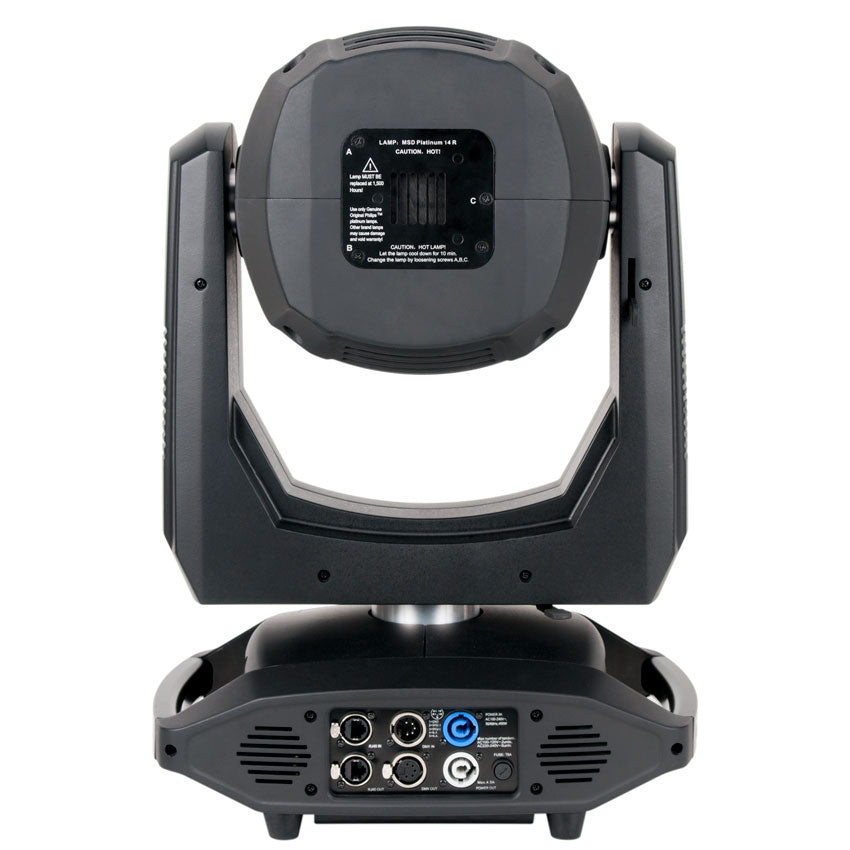

5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET, sACN)
Power Cable In/Out
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 16.0” (406mm)
Width: 11.5” (292mm)
Vertical Height: 27.0” (686mm)
Weight: 50.0 lbs. (22.7 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
450W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP20
Specifications and documentation subject to change without notice.
