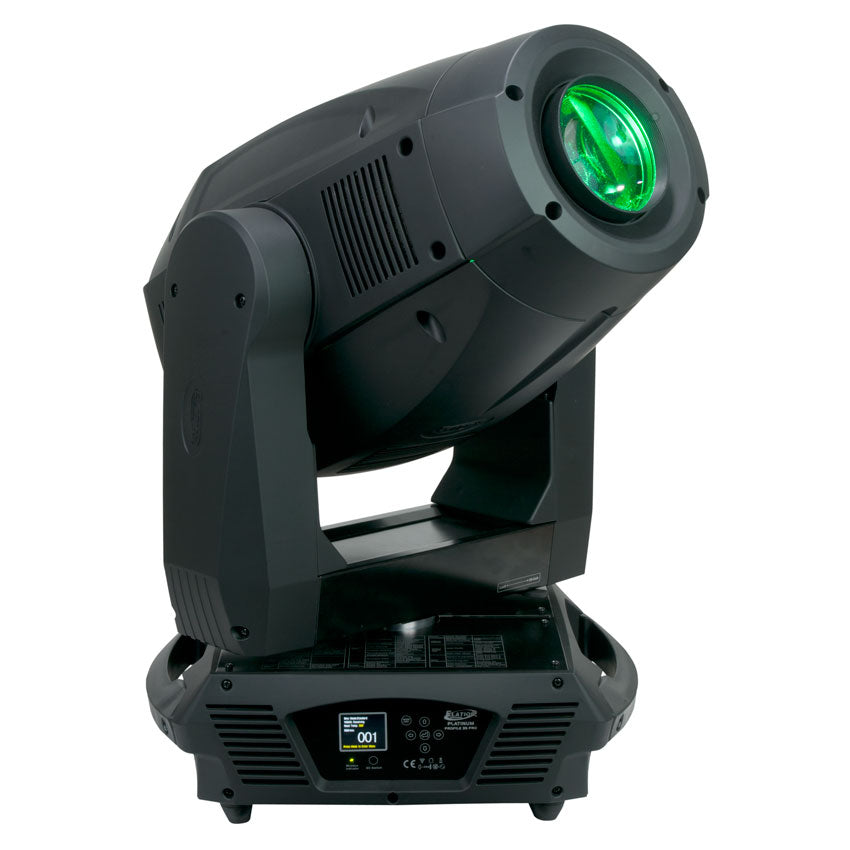

Platinum Profile 35 PRO

Features


 The Platinum Profile 35 PRO™ features the MSR Platinum 35, 800-watt lamp from Phillips™, 16-bit resolution on all motor functions, 2 gobo wheels with a total of 6 interchangeable, rotating, and indexing glass gobos, 3 fixed indexing gobos and a 160° animation effect, variable CMY color mixing and CTO, a static color wheel with 8 dichroic colors including UV and CTB, 3 facet rotating / indexing prism, frost filter, motorized focus / zoom system with an 8° to 50° beam angle, motorized 4 blade framing shutter, pan/tilt lock, built-in EWDMX wireless DMX receiver, 3 and 5pin DMX connections, full color 180° reversible menu display with 6 button touch control panel, battery backup for display power, and a multi-voltage universal auto switching power supply (100-240v).

 FEATURES
 1200-Watt Comparable Lumens Output
 Motorized 8° - 50° Zoom + 4 Blade Framing
 Built-In EWDMX Wireless DMX Receiver

Resources

User Manual

Specifications

SOURCE
 Phillips™ 800-Watt MSR Platinum 35
 750 Hour Average Life

 PHOTOMETRIC DATA
 20,101 Total Lumens, 7,400K, >60CRI
 18,750 LUX @10M 8° Min Zoom
 812 LUX @10M 50° Max Zoom

 EFFECTS
 4 Blade Framing
 160° Animation Effect
 Frost Filter
 3-Facet Prism and 16 Prism Macros
 Strobe and 5% - 100% Iris
 Mechanical Dimming: 0% - 100%

 COLOR
 Variable CMY Color Mixing & CTO
 8 Interchangeable Dichroic Colors Including UV + CTB

 GOBOS
 2 Gobo Wheels
 6 Interchangeable / Rotating / Indexing Glass Gobos
 3 Fixed / Indexing Gobos + 160° Animation

 CONTROL / CONNECTIONS
 3 DMX Channel Modes (36 / 38 / 59)

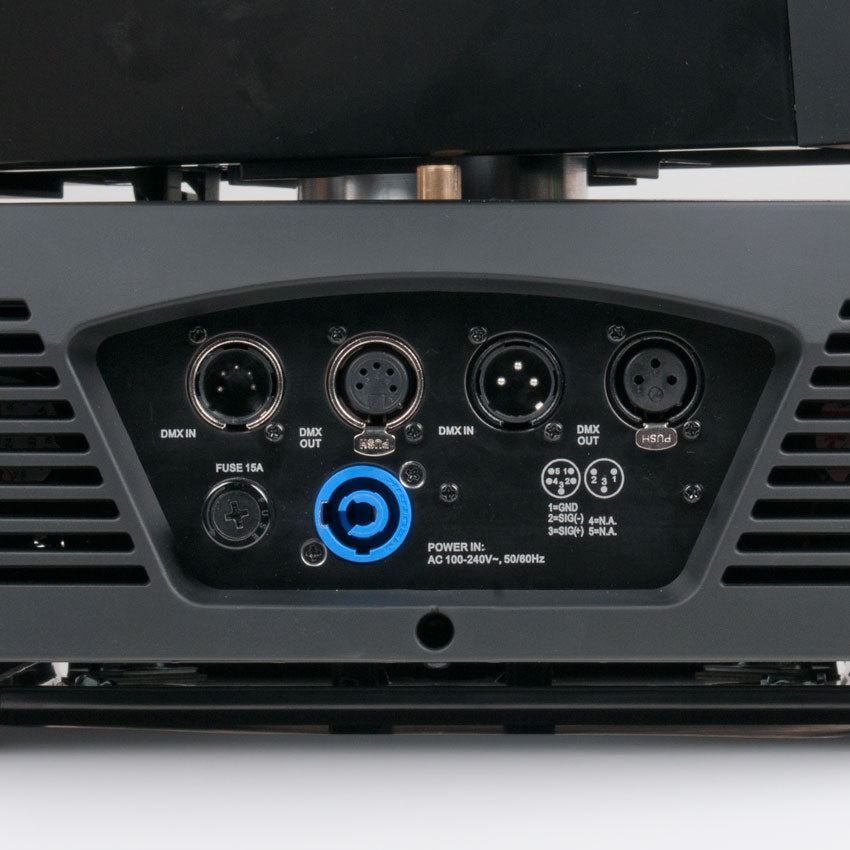

 3pin & 5pin DMX In/Out

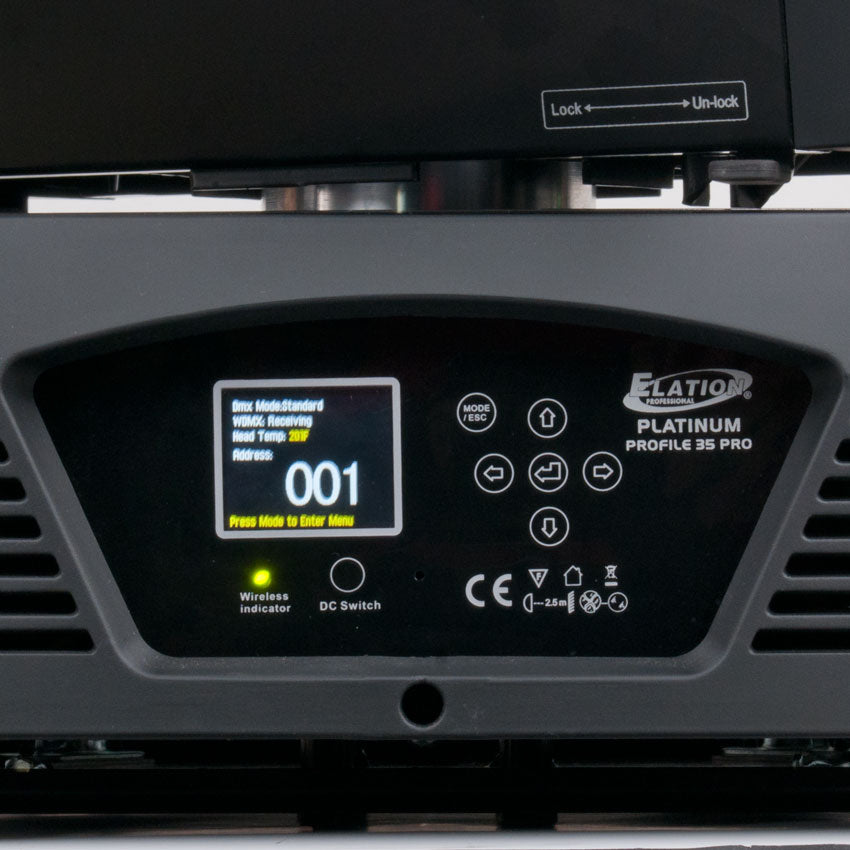

 6 Button Touch Control Panel
 Full Color 180° Reversible LCD Menu Display
 8 / 16 Bit Resolution Adjustable Movement
 powerCON Power In

 SIZE / WEIGHT
 Length: 19.9” (506.5mm)
 Width: 17.6” (447.3mm)
 Vertical Height: 28.6” (726.5mm)
 Weight: 88.2 lbs. (40kg)

 ELECTRICAL / THERMAL
 AC 100-240V - 50/60Hz
 1044W Max Power Consumption
 -13°F to 113°F (-25°C to 45°C)

 APPROVALS / RATINGS
 CE | cETLus | IP20

 OPTIONAL ACCESSORIES:

 CLAMPS (click for more info)


 PRO CABLES (click for more info)

 DMX SOLUTIONS (click for more info)

 Specifications and documentation subject to change without notice.
