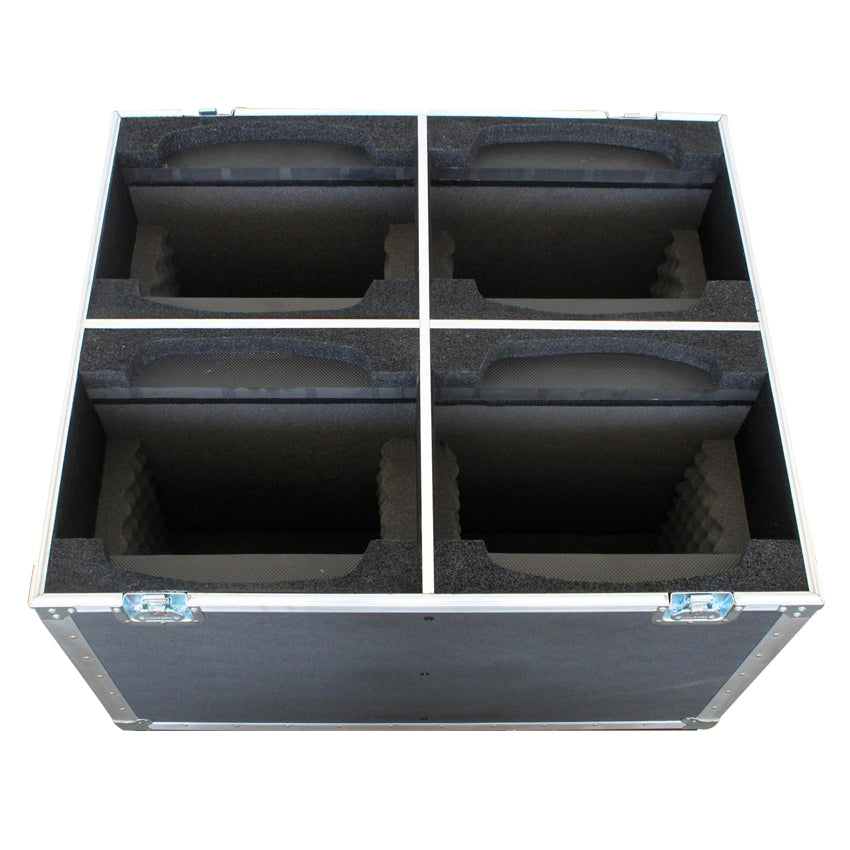

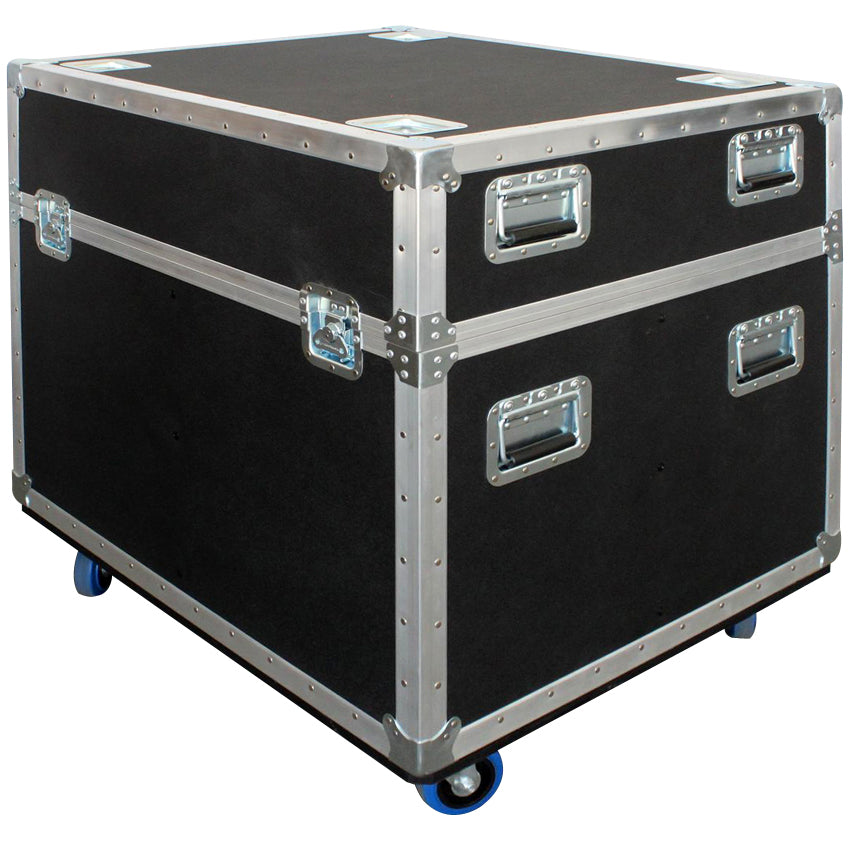

Platinum Quad Road Case

Features

The Platinum Quad Road Case is custom made to hold any (4) combinations of the following ELATION PLATINUM™model fixtures:

 Platinum Beam 5R™
 Platinum Beam 5R EXTREME™
 Platinum Beam 15R™
 Platinum Spot 5R™
 Platinum Spot 5R Pro™
 Platinum Spot LED II™


 FEATURES
 Top Load Design
 Hinged/Foamed Removable Lid with 9.5" Clearance for Trigger Clamps
 Truck Pack: 1/3 Pack for 90" Box Truck | 1/3 Pack for 180" Truck
 Holds any (2) combinations of the following Elation models:

Specifications

ATA Approved – All Hardware Flush Mount
 1/2" Plywood Walls - ABS Exterior Finish
 Tongue and Groove Sealing Extrusion
 3/4" Plywood Base Plate
 1/2" Divider Boards
 2" Thick Foam
 (4) 600# Rated High Impact Blue Casters
 (4) High Impact Recessed Spring Latches
 (8) Spring Loaded Handles
 (8) High Impact Flat corners
 (4) Stacking Cups
 (1) Piano hinge

 SIZE / WEIGHT
 Length: 30” (762mm)
 Width: 35.25” (895.4mm)
 Vertical Height: 37” (939.8mm)
 Weight: 134 lbs. (60.8 kg) EMPTY

 Manufactured in the U.S.A.

 Specifications and documentation subject to change without notice.
