Platinum Wash 16R PRO
Platinum Wash 16R PRO

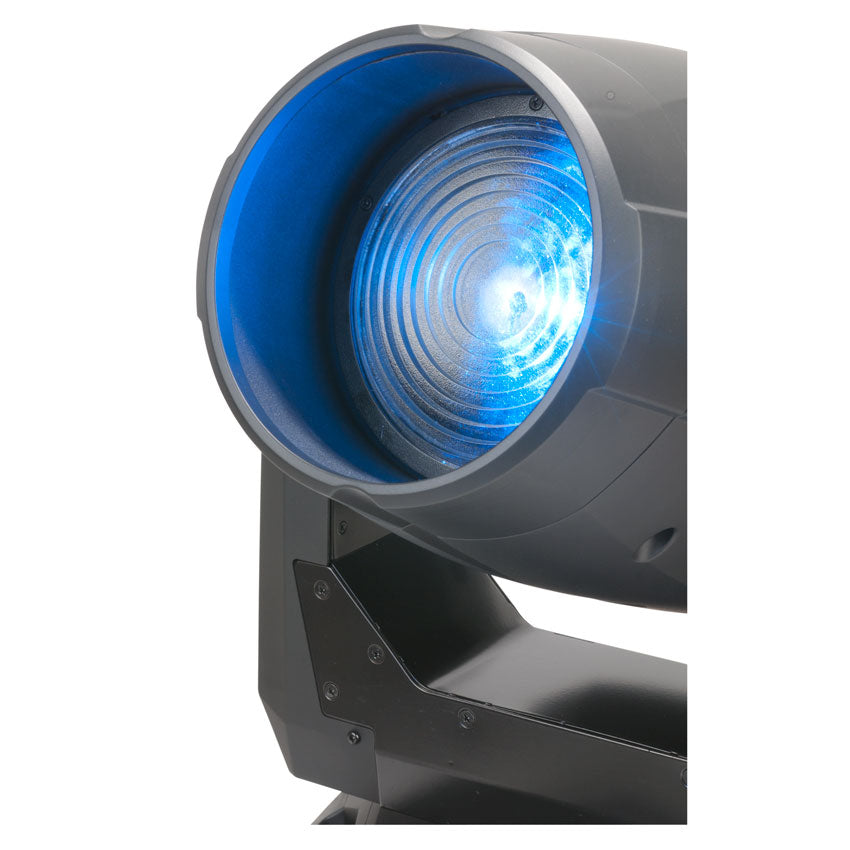

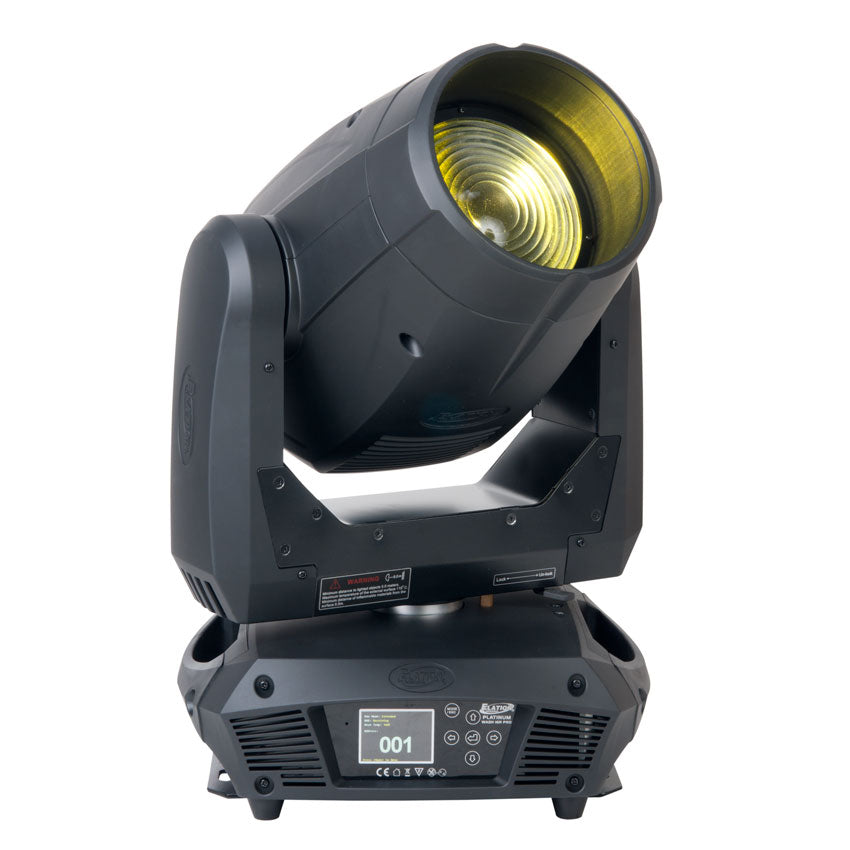

The Platinum Wash 16R™ is a powerful wash and beam combo lluminare featuring the new 330W Phillips™ Platinum 16R lamp, 16,000 total lumens output, variable motorized zoom system with 3° to 14° beam and 6° to 44° wash ranges, CMY color mixing, (6) dichroic colors including UV, CTO, plus white (open), (2) separate frost filters (light + heavy), linear rotating prism, 16bit Pan and Tilt movement, 3pin and 5pin DMX in/out and powerCON connections, (6) button control full color 180° reversible menu display, 450W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Features
The Platinum Wash 16R™ is a powerful wash and beam combo lluminare featuring the new 330W Phillips™ Platinum 16R lamp, 16,000 total lumens output, variable motorized zoom system with 3° to 14° beam and 6° to 44° wash ranges, CMY color mixing, (6) dichroic colors including UV, CTO, plus white (open), (2) separate frost filters (light + heavy), linear rotating prism, 16bit Pan and Tilt movement, 3pin and 5pin DMX in/out and powerCON connections, (6) button control full color 180° reversible menu display, 450W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
Beam and Wash Combo Illuminare
Variable Motorized Zoom 3° - 14° Beam 6° - 43° Wash
CMY Color Mixing and CTO Color Correction
(2) Separate Frost Filters - Light and Heavy Frost
Linear Rotating Prism
16bit Pan and Tilt Movement
Resources
Guides/ Manuals
- Platinum Wash 16R PRO Specification Sheet
- Platinum Wash 16R PRO Manual 1.0
- Platinum Wash 16R PRO 2D CAD
- Platinum Wash 16R PRO 3D CAD
- Platinum Wash 16R PRO Vectorworks 2014 Symbol
- Platinum Wash 16R PRO Vectorworks 2015 Symbol
- Platinum Wash 16R PRO Vectorworks 2016 Symbol
- Platinum Wash 16R PRO DMX Traits 1.0
- Platinum Wash 16R PRO Dimensional Drawings
- Platinum Wash 16R PRO Photometric Data
- Platinum Wash 16R PRO IES File - Zoom IN
- Platinum Wash 16R PRO Photometric Report - Zoom IN
- Platinum Wash 16R PRO IES File - Zoom OUT
- Platinum Wash 16R PRO Photometric Report - Zoom OUT
Related Categories
Specifications
New 330W Phillips™ Platinum 16R Lamp
1,500 Hour Average Lamp Life
PHOTOMETRIC DATA
16,000 Total Lumens, 8,000K, 65CRI
Distance @24.6 ft (7.5m)
55,850 LUX 5,188 FC (3° Min Zoom Full ON)
5,795 LUX 538 FC (14° Max Zoom Full ON)
16,300 LUX 1,514 FC (6° Min Zoom - Light Frost Full ON)
3,795 LUX 353 FC (14° Max Zoom - Light Frost Full ON)
4,071 LUX 378 FC (11° Min Zoom - Heavy Frost Full ON)
1,230 LUX 114 FC (22° Max Zoom - Heavy Frost Full ON)
EFFECTS
Linear Rotating Prism and (16) Prism Macros
(2) Frost Filters - Light and Heavy Frost
Strobe: 1-18fps
Dimming: 0% - 100%
COLOR
(6) Dichroic Colors Including UV, CTO, + White (Open)
CMY Color Mixing

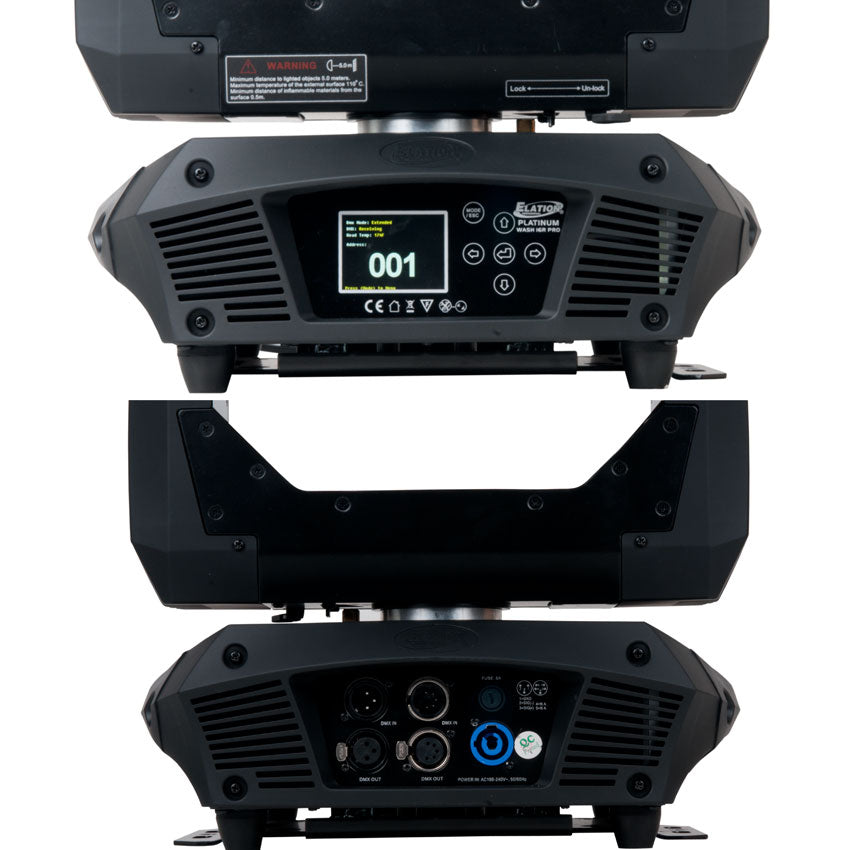

CONTROL / CONNECTIONS
(3) DMX Channel Modes (17/19/26)
RDM (Remote Device Management)
(6) Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
3pin & 5pin DMX In/Out
powerCON Power In
SIZE / WEIGHT
Length: 14.7” (374mm)
Width: 14.1” (359mm)
Vertical Height: 22.8” (580)
Weight: 48.0 lbs. (21.8 kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
450W Max Power Consumption
-13°F to 113°F (-25°C to 45°C)
APPROVALS / RATINGS
CE | RoHs | IP20
INSTALLATION
Rigging: Clamps (Not Included)
Working Position: Any Position
INCLUDED ITEMS
Omega Brackets
3pin DMX Cable
Safety Cable
powerCON Cable
OPTIONAL ACCESSORIES:
CLAMPS (click for more info)
PRO CABLES (click for more info)
DMX SOLUTIONS (click for more info)
Specifications and documentation subject to change without notice.
