Power Spot 250
Features
Already a Popular effect, the POWER SPOT 250 has all of the effects known to the 250watt moving yoke fixture PLUS added features you wont find in any other Spot 250! The Power Spot 250 is one of the faster moving yokes available. The Power Spot also utilizes the highest grade components available for a very reliable unit.
EXPECTED FEATURES
• Fine Pan & Tilt
• Position Correction
• Indexable Gobos
• 15º Beam angle
• Continous Color Scroll
• Continous Gobo Scroll
• 530º Pan in 3.0 seconds!
• 270º Tilt in 1.1 seconds!
UNEXPECTED FEATURES
• EMH Attribute system

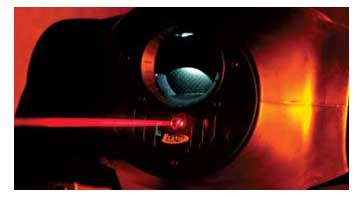

• 4.9mW red laser
• Optional 18º Lens
• PreProgrammed Movements via DMX
Control Features
• USITT DMX-512 (16-bit resolution)
• 15 DMX channels
• 4 Digit Digital LED Display
• Self Test & Stand Alone settings
• 3 pin XLR serial input/output
• Built in Microphone with sensitivity knob.
Resources
Guides/ Manuals
- Color Brochure (pdf)
- DMX Chart (pdf)
- CAD Drawing
- Power Spot 250 User Manual
- Dimensions
- Power Spot 250 Cutsheet
Related Categories
Specifications
Features & Specs
• High Luminous-Efficiency axial reflector and double condenser lens system
• Remote Focus via DMX

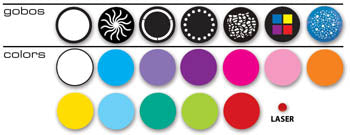

• 11 Colors + White
• 6 Gobos + Spot;
All interchangeable, index able, rotating
• 4 metal gobos, 1 glass gobo and
1 multi-colored dichroic gobo
• Gobo Shake Effect
• 3 facet prism
• Variable speed strobe effect
• Linkable
• Sound activated built in programs
• Mechanical Dimming 0-100%
• Mechanical High Speed shutter
• Strobe and Pulse effect
• Fan cooled (Sunnon Fans)
• Fan speed adjustable via DMX
Effect Features
• 16 accesable movements via DMX
• Pan/Tilt/Color set to Sound Active mode via DMX
Mounting
• 2 Wing Plates included
• 4 x M10 threaded holes
• 1 x Safety cable hole.
Technical Specifications
• Optical & Magnetic Sensors
• Lamp: ZB-MSD250 (250W, 8500ºK, 2000hrs)
• Dimensions: 26"x12"x10" (530x200x180mm)
• Weight: 49lbs (22.68kgs)
• Fuse: 10A
• Voltage: 115V/60Hz or 220V/60Hz
• Power Consumption: 500VA
