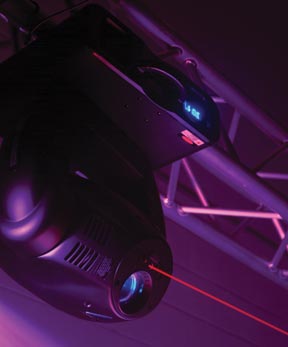

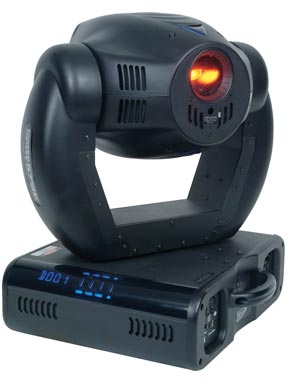

Power Spot 575IE II

Features

CONTROL FEATURES

• USITT DMX-512 (16-bit resolution)

• 16 DMX channels

• 4 Digit Blue L.E.D. Display

• 3 pin XLR serial input/output

Resources

User Manual

Specifications

SPECIAL DMX-CONTROL FEATURES

• 16 pan/tilt pre programed movements via DMX

• Built-in Programs via DMX

• Pan/Tilt/Gobo/Color & Prism set to

• Sound Active mode via DMX


STAND-ALONE FEATURES

• Sound activated built in programs

• Sensitivity knob

• Linkable up to 16 units

• Self Test & Stand Alone settings

• Built in Microphone with sensitivity knob


OPTICAL SYSTEM

• Remote Focus via DMX

• High Output Luminous-Efficiency parabolic mirror

• Glass Dichroic reflector

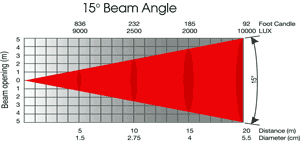

• 15º Beam Angle (Optional 18º lens)
 Lamp: Philips MSR575/SA2DE  7500K, 1000hr


FOCUS

• Motor driven focus from near to far

• Remote Focus via DMX


COLOR

• 11 Dichroic Colors + White + UV

• Split Colors

• Continuous Color Scroll

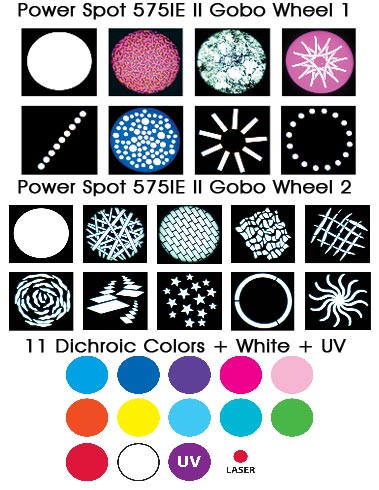

GOBOS

• 16 Gobos on 2 wheels

• Patent Pending Quick Snap gobo replacement system

• Gobo Shake Effect

• Continuous Gobo Scroll

• Wheel 1: 7 interchangeably Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal

• Wheel 2: 9 interchangeably Static Metal gobos

• Gobo Size Wheel 1: 26.9mm x 23mm viewing x 4mm thickness

• Gobo Size wheel 2: 26.9mm x 23mm viewing metal only


IRIS

• Beam narrow 7-degree to wide

• Variable speed iris macros

• Small to large and large to small


SHUTTER/DIMMER

• Mechanical Dimming 0-100%

• Mechanical High Speed shutter & Pulse Effect


PAN/TILT

• Fine Pan & Tilt (16 bit resolution)

• Automatic Pan / Tilt position correction

• Maximum Pan movement 540º in 2.0s / 16 bit

• Maximum Tilt movement 280º in 1.1 s / 16 bit


EFFECTS

• 4.9 mW Red Laser with pulse effect

• 3 facet prism rotating in both directions at variable speeds

• Gobo Overlaying

• Iris (POWER SPOT-575IE II)


RIGGING

• 2 x 1/4 turn fastener brackets

• 1 x Safety cable hole


DIMENSIONS & WEIGHT

• 26”L x 12”W x10”H

• 42 lbs (POWER SPOT-575IE II)

 POWER SUPPLY

• Fuse: 10A

• Electronic Ballast

• Voltage: 90-240V 50-60Hz

• Power Consumption: 700VA
