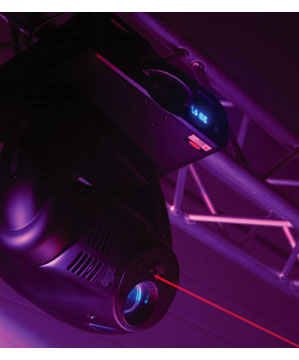

Power Spot 575II

Features

 A new inovation in Automated lighting. The POWER SPOT 575II boast a powerfull 575 discharge lamp in a fixture the size as the popular Power Spot 250. Along with this powerfull output the POWER SPOT 575II features 2 Gobo wheels with the patent pending "Quick Snap" gobo change technology for gobo overlaying effects.
 The POWER SPOT 575II is the ideal fixture for any venue or event!

 Control Features

• USITT DMX-512 (16-bit resolution)

• Pan 540º/Tilt 280º

• 16 DMX channels

• 4 Digit Blue L.E.D. Display

• 3 pin XLR serial input/output

Resources

User Manual

Specifications

Optical Features

• Remote Focus via DMX

• High Output Luminous-Efficiency axial reflector and double condenser lens system

• 15º Beam Angle

 Color Features

• 11 Colors + White

• UV filter

• Color Scroll

• Split Colors

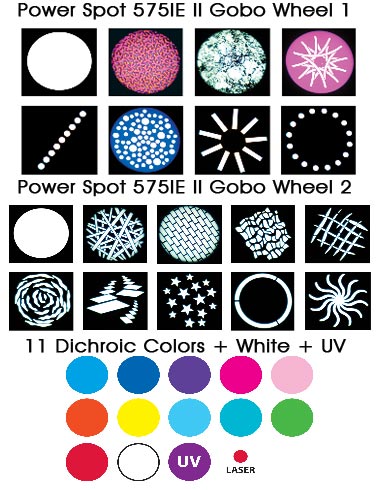

 Gobo Features

• 16 Gobos on 2 wheels

• Patent Pending Quick Snap gobo replacement system

• Gobo Shake Effect

• Gobo Scroll

• Wheel 1: 7 interchangable Rotating/Indexing Gobos, 3 Lithographic, 1 Glass, 3 Metal

• Wheel 2: 9 interchangable Static Metal gobos

• Gobo Size Wheel 1: 26.9mm x 23mm viewing x 4mm thickness

• Gobo Size wheel 2: 26.9mm x 23mm viewing metal only

 Effect Features

• 4.9 mW Red Laser with pulse effect

• 3 facet prism rotating in both directions at variable speeds

• Gobo Overlaying

 Shutter/Dimmer features

• Mechanical Dimming 0-100%

• Mechanical High Speed shutter & Pulse Effect

 SPECIAL DMX-Control Features

• 16 pan/tilt preprogramed movements via DMX

• Built-in Programs via DMX

• Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX

 Stand-Alone Features

• Sound activated built in programs

• Sensitivity knob

• Linkable up to 16 units

• Self Test & Stand Alone settings

• Built in Microphone with sensitivity knob.

 Technical Specifications

• Lamp: Philips MSR575/SA2DE  7500K, 1000hr

• Dimensions: 26"x12"x10" (530x200x180mm)

• Weight: 50lbs (22.68kgs)

• Fuse: 10A

• Voltage: 120V/220v (50/60Hz)

• Power Consumption: 700VA

• Fan cooled 1 axial fan for head 1 for base.
