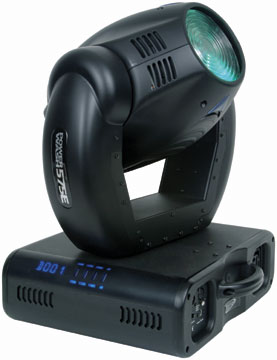

Power Wash 575E

Features

CONTROL FEATURES
 USITT DMX-512 (16-bit resolution)
 15 DMX channels
 4 Digit Blue L.E.D. Display
 3 pin XLR serial input/output

Resources

User Manual

Specifications

SPECIAL DMX-CONTROL FEATURES
 16 pan/tilt pre programed movements via DMX
 Built-in Programs via DMX
 Pan/Tilt/Gobo/Color & Prism set to Sound Active mode via DMX


STAND-ALONE FEATURES
 Sound activated built in programs
 Sensitivity knob
 Linkable up to 16 units
 Self Test & Stand Alone settings
 Built in Microphone with sensitivity knob


OPTICAL SYSTEM
 High Output Luminous-Efficiency parabolic mirror
 Glass Dichroic reflector
 8º - 22º Motorized zoom
 150mm Fresnel Lens
 Lamp: Philips MSR575/SA2DE  7500K, 1000hr


COLOR
 CMY Gradual Color Mixing
 9 Dichroic Colors + White + UV
 Continuous Color Scroll


SHUTTER/DIMMER
 Mechanical Dimming 0-100%
 Mechanical High Speed shutter & Pulse Effect


PAN/TILT
 Fine Pan & Tilt (16 bit resolution)
 Automatic Pan / Tilt position correction
 Maximum Pan movement 540º in 2.0s / 16 bit
 Maximum Tilt movement 280º in 1.1s / 16 bit


EFFECTS
 180º Beam Shaper
 Frost Filter


RIGGING
 2 x 1/4 turn fastener brackets
 2 x Wing Mounting plates
 1 x Safety cable hole


DIMENSIONS & WEIGHT
 26”L x 12”W x 10”H
 42 lbs (Power Wash 575 E)


POWER SUPPLY
 Fuse: 10A
 Electronic Ballast
 Voltage: 90-240V 50-60Hz
 Power Consumption: 700VA
