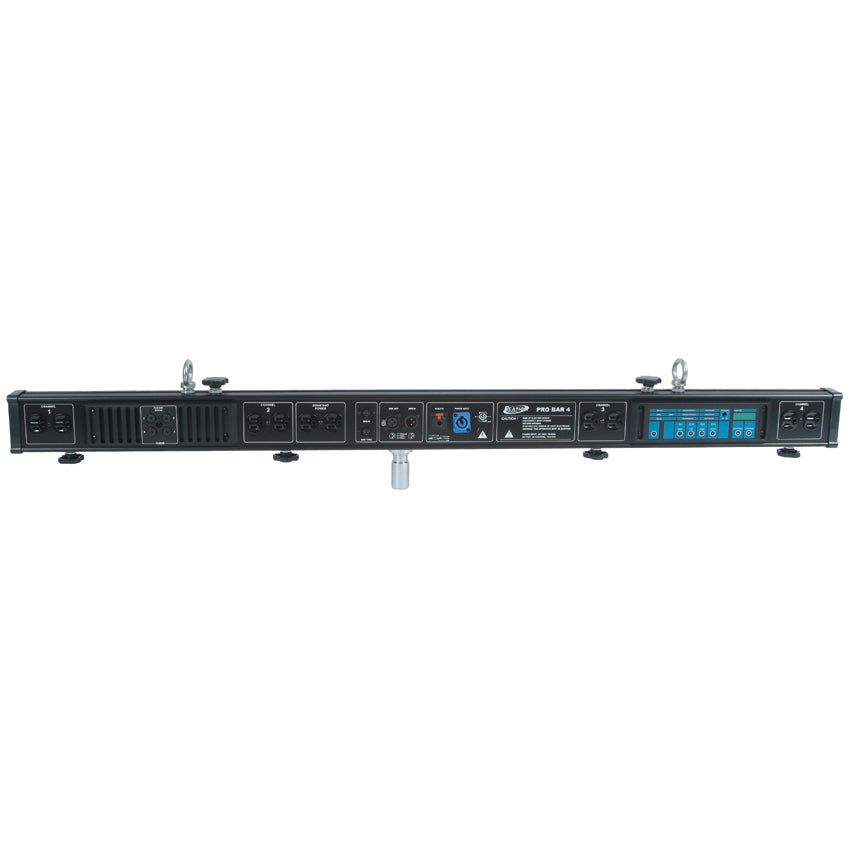

Pro Bar-4



User Manual


• 4 channel DMX Bar
• 16 built in Chase Patterns
• Switchable dimmer / power pack modes
• DMX control activates 4 channel manual dimmer mode to be controlled by external DMX controller
• Pre-heat function
• Adjustable master dim level
• Adjustable channel dim level
• Individual DMX addressing for each channel
• Built in microphone for music sync function
• Digital display- used to set starting DMX address channel and set all other menu options.
• Two three prong Edison sockets per channel
• One constant / dual three prong Edison socket
• 3 pin XLR DMX Input & Output
• External channel fuses for quick and easy replacement
• Zero crossing circuitry for protection of transformer loads when switching
• One 3 pin XLR foot controller input
• 6 mounting knobs for Par Cans
• 2 eye hooks for aerial rigging

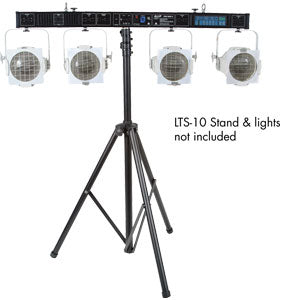

• 1 adapter for stand mount (For use with LTS-3 stand)
• Power Input: 120V ~ 60Hz
• Maximum Load: 5A per channel / 20A total
• Dimensions: 3”L x 51.75”W x 7”H
• Weight: 11.5 lbs
