PROTEUS HYBRID

Features

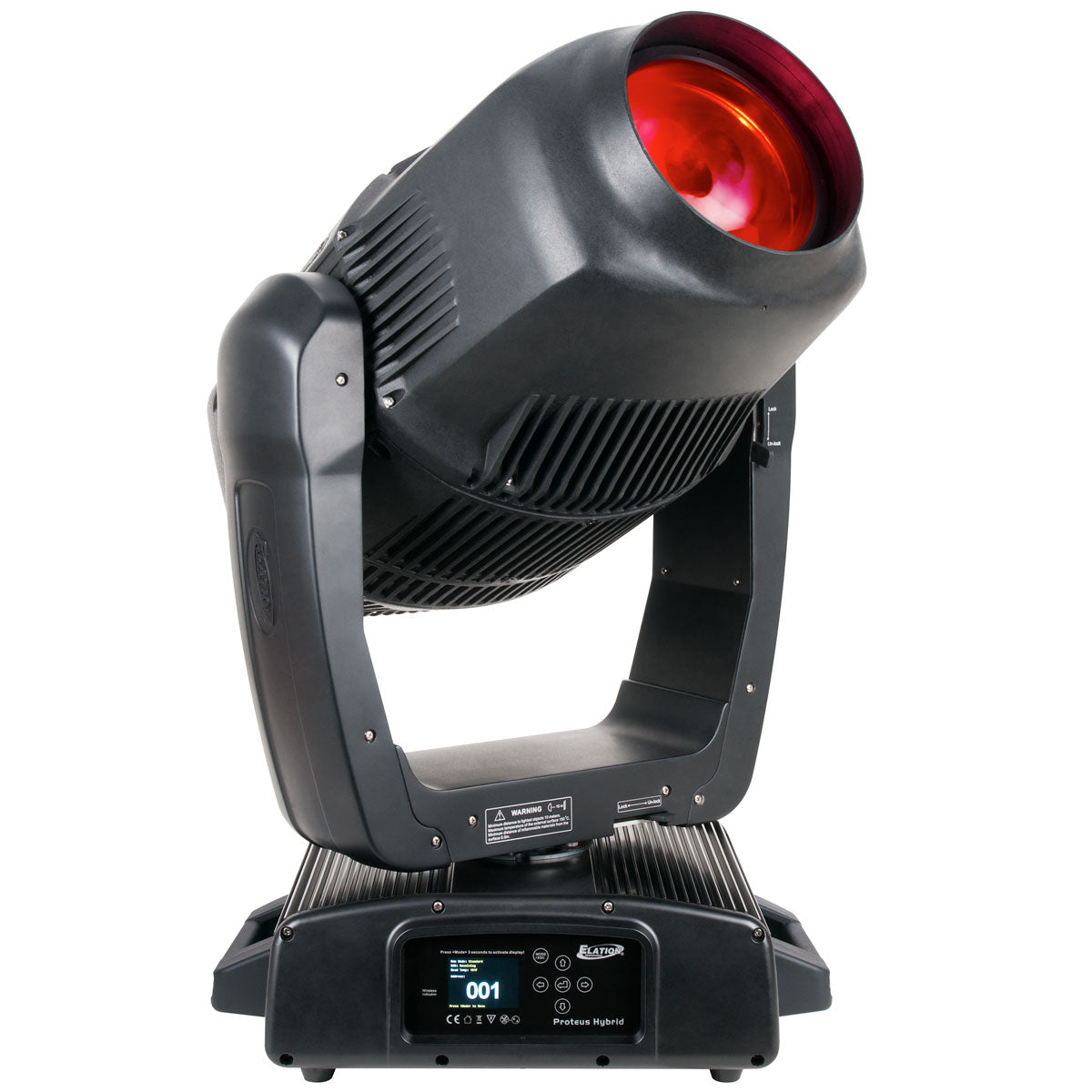

IP65 Rated 3-in-1 Hybrid Beam, Spot, Wash Luminaire
Philips™ MSD 21R 470W 80CRI 8,000K Lamp and Advanced Optics

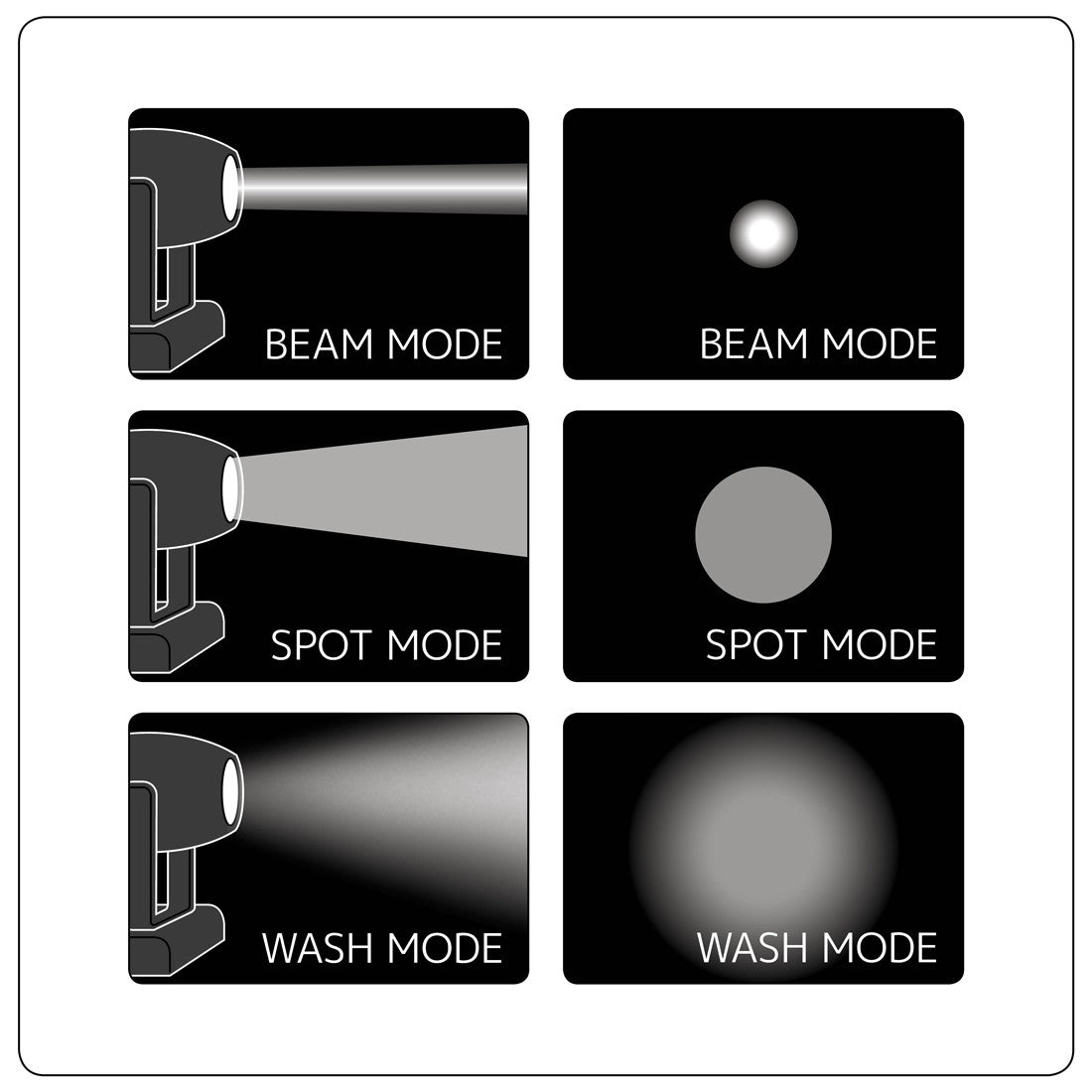

Motorized Zoom, Beam and Spot Modes
Advanced Internal Thermal Cooling System
Full CMY Color Mixing and Linear CTO Color Correction
14 Dichroic Colors Including CTB, CTO, and UV
8 Rotating Interchangeable and 14 Static-Stamped Metal Gobos
Full 360° Bi-Directional Animation Wheel
Rotating 8-Facet and Linear Prisms and Frost Filter
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver

Resources

Specifications Sheet

Gobos & Colors

CAD Drawing

Dimensional Drawing

DMX Traits

Specifications

SOURCE
Philips MSD 21R 470W 8,000K Lamp
1,000 Hour Average LAMP Life*
*LAMP Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
80CRI | >23,000 Lumens
13,375 LUX 1,243 FC @49.2’ (15m) (3.0° Spot)
233,000 LUX 21,646 FC @49.2’ (15m) (2.0° Beam)
11,500 LUX 1,068 FC @16.4’ (15m) (4.0° Wash)


EFFECTS
Full 360° Bi-Directional Animation Wheel
Rotating Prisms and Prism Macros
Frost Filter Hybrid Wash Effect
Motorized Focus and Auto-Focus
High Speed Mechanical Shutter and Strobe


COLOR
14 Dichroic Colors Including CTB, CTO, and UV
Full CMY Color Mixing and Linear CTO Color Correction


GOBOS
8 Interchangeable Rotating / Indexing Glass Gobos
14 Static-Stamped Metal Gobos


CONTROL / CONNECTIONS
(3) DMX Channel Modes (24 / 26 / 37)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-NET, and sACN Protocol Support
Elation’s E-FLY™ Internal Wireless DMX Transceiver

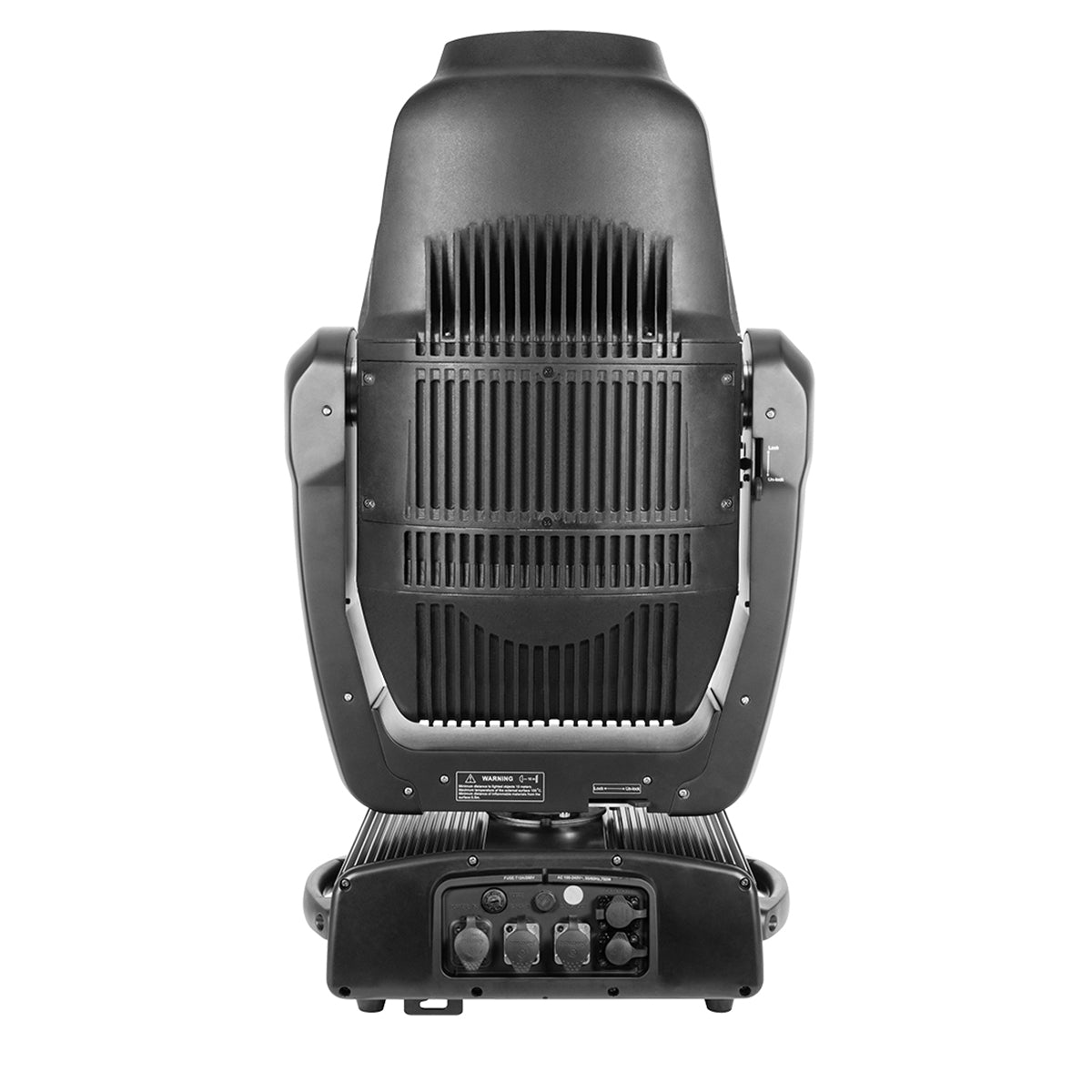

IP65 5pin DMX In/Out
IP65 RJ45 etherCON In/Out
IP65 powerCON TRUE1 Power In


SIZE / WEIGHT
Length: 17.5" (445mm)
Width: 22.5" (572mm)
Vertical Height: 31.5" (800mm)
Weight: 84.0 lbs. (38 kg)


ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
700W Max Power Consumption
14°F to 113°F (-10°C to 45°C)


APPROVALS / RATINGS
CE | cETLus | IP65



Specifications and documentation subject to change without notice.
