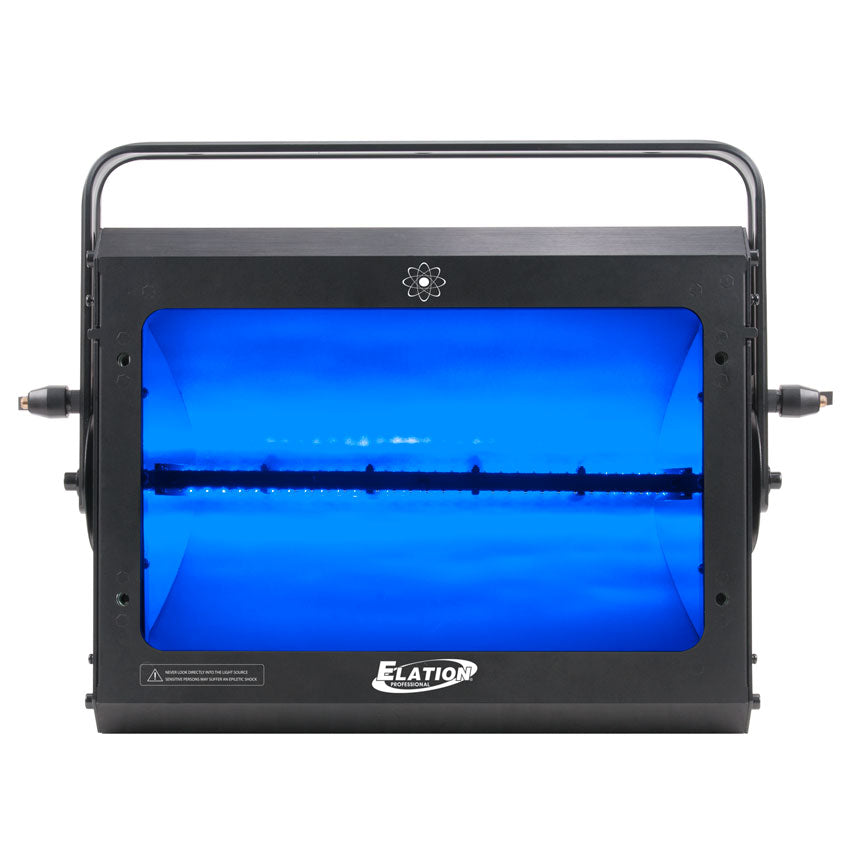

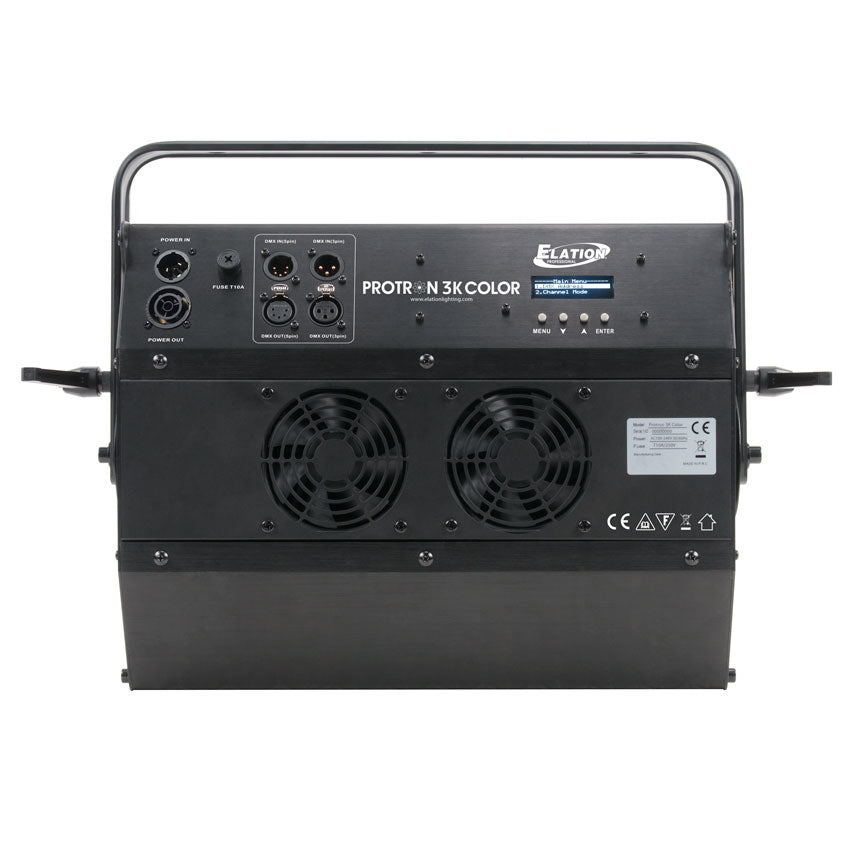

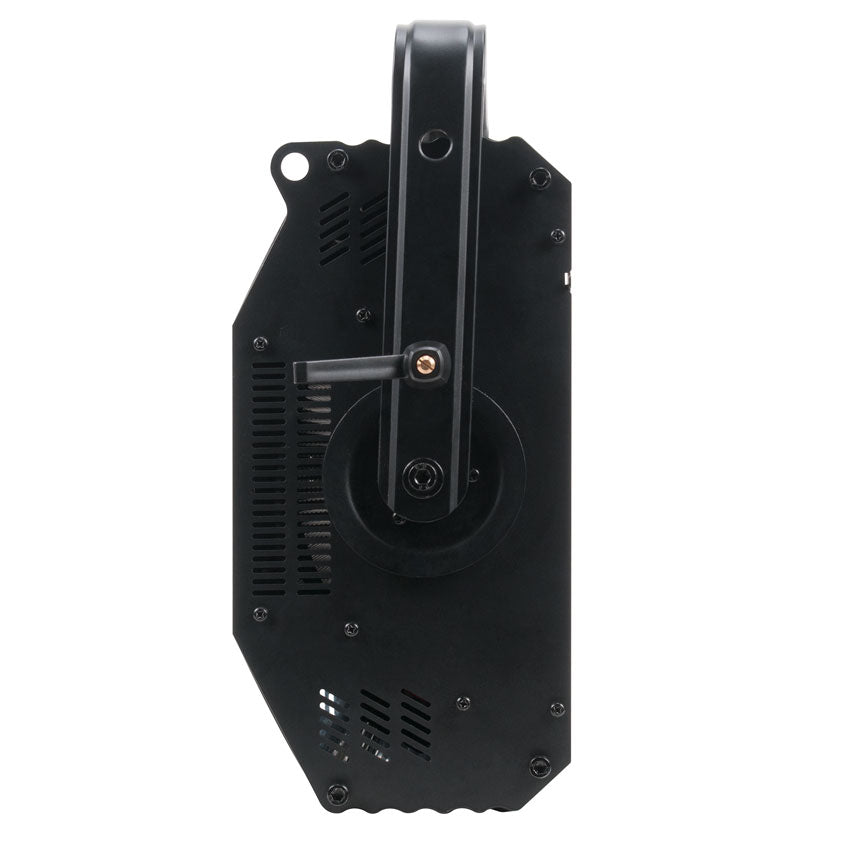

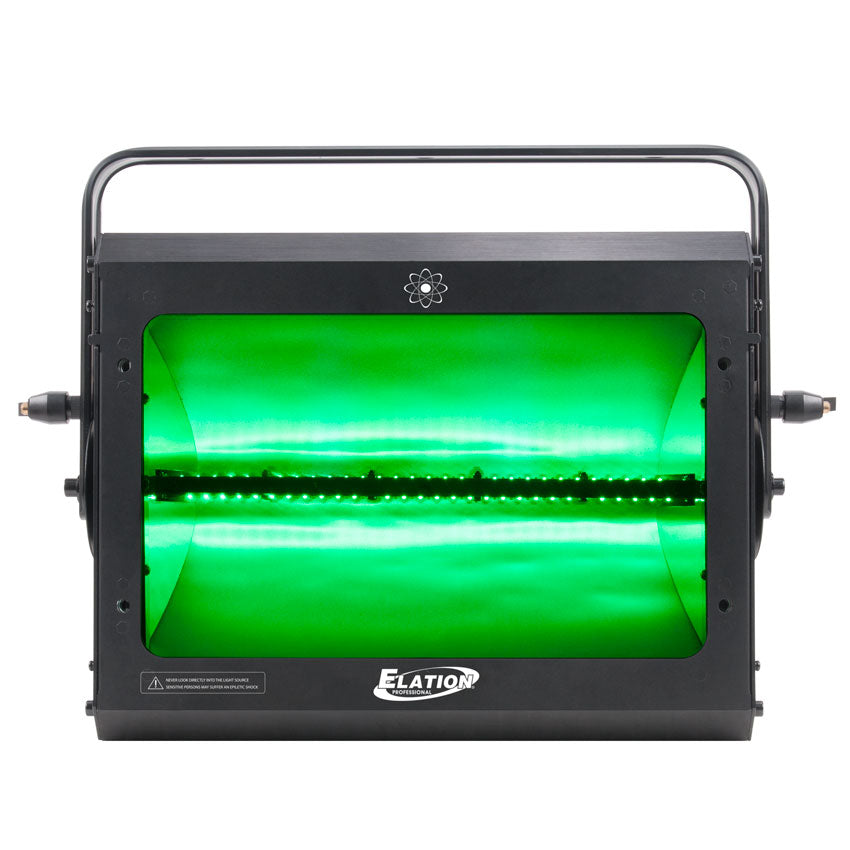

Protron 3K Color LED Strobe

Features

63° Beam Angle
(2) Power Modes (HIGH and LOW)
Electronic Dimming
(2) Silent Cooling Fans
Burst, Pulse, Lightning, and Full ON* Effects

*Thermally regulated output at full max 10 seconds.


Resources

Specifications Sheet

CAD Drawing

Vectorworks Symbol

User Manual

Dimensional Drawing

Photometric Data

DMX Traits

Specifications

SOURCE
 (240) CREE™ XLamp 3W LEDs (60 each color-RGBW)
 50,000 Hour Average LED Life**
**LED Life may vary depending on several factors including but not limited to
 Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


 PHOTOMETRIC DATA
 40,000 Total Lumens* (*Peak)
 12,210 LUX 1,134 FC @3.3’ (1m) (63° Full ON)

 COLOR
 RGBW

 EFFECTS
 Electronic Dimming
 Burst, Pulse, Lightning, Full ON*

*Thermally regulated output at full max 10 seconds.


 CONTROL / CONNECTIONS
 (4) DMX Channel Modes (3 / 5 / 7 / 8)
 4 Button Control Panel
 OLED Menu Display
 3/5pin DMX In/Out
 powerCON TRUE 1 In/Out

 SIZE / WEIGHT
 Length: 19.9” (506mm)
 Width: 5.9” (150mm)
 Vertical Height: 14.1” (357mm)
 Weight: 24.3 lbs. (11.0kg)

 ELECTRICAL / THERMAL
 AC 100-240V - 50/60Hz
 800W Max Power Consumption
 Max Ambient Temperature 113°F (40°C)

 APPROVALS / RATINGS
 CE | cETLus | IP20

 INCLUDED ITEMS
 (1) powerCON TRUE1 Cable



 Specifications and documentation subject to change without notice.
