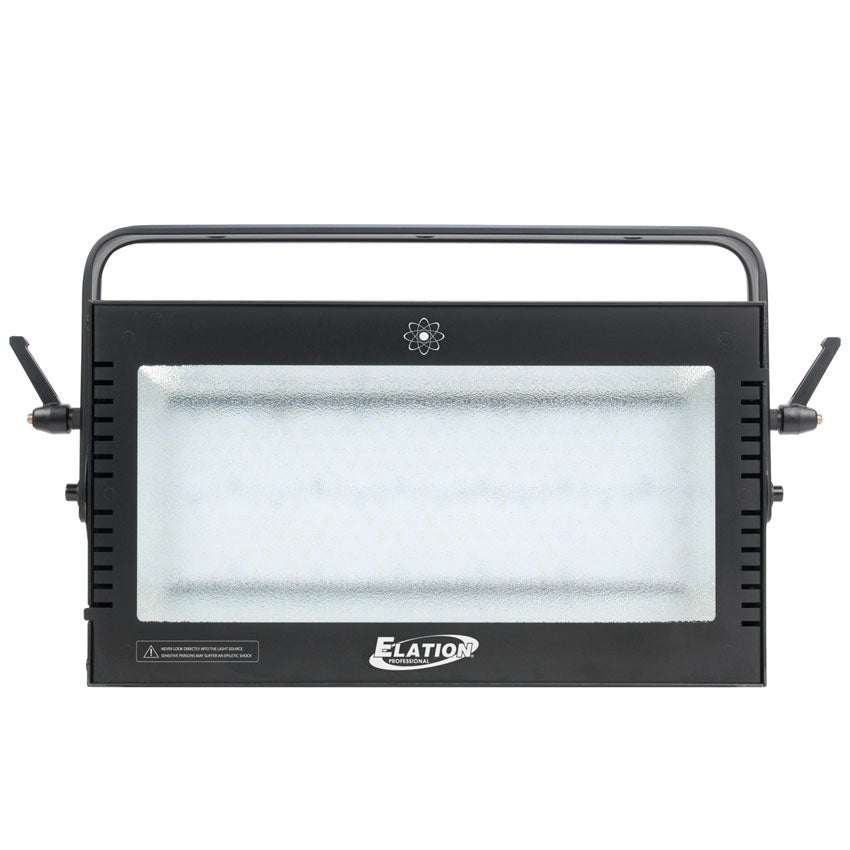

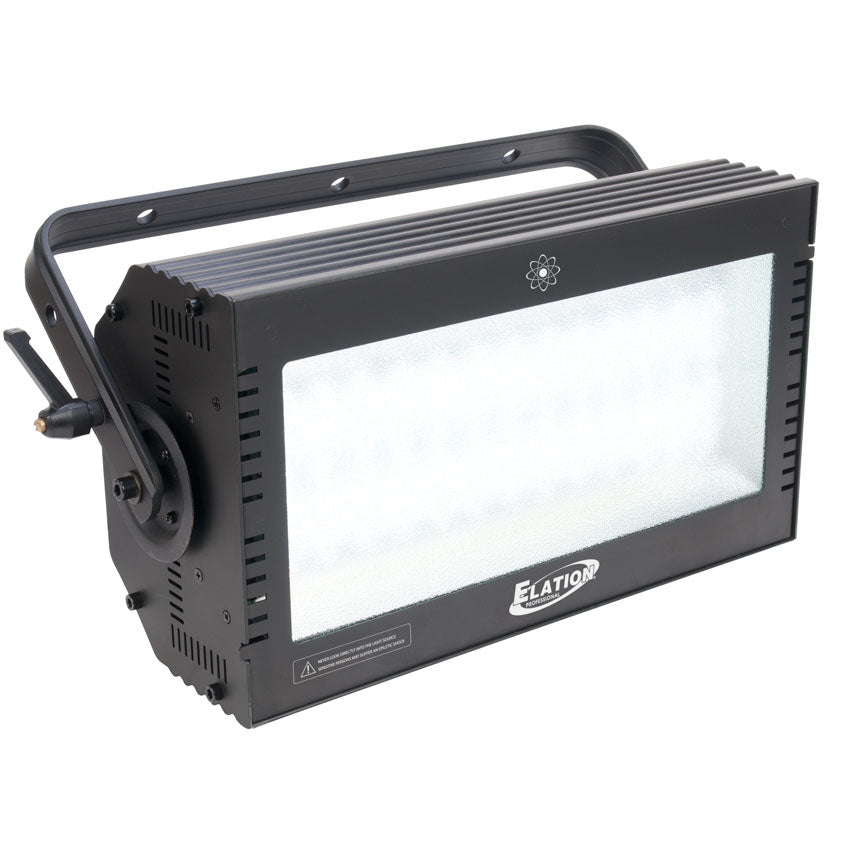

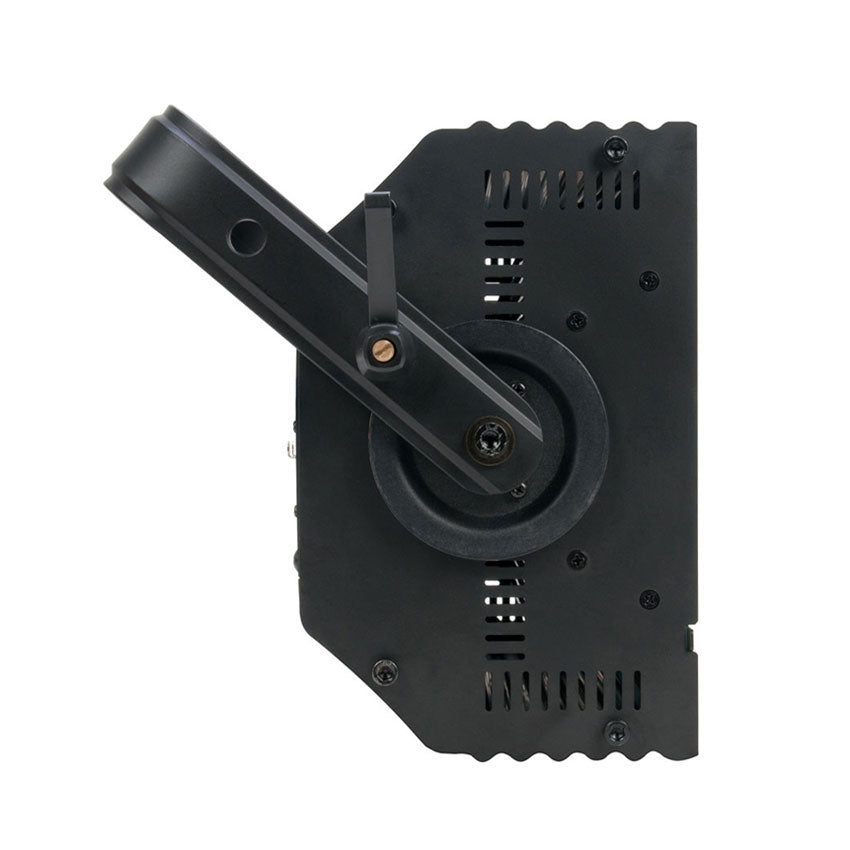

Protron 3K LED Strobe

Specifications

SOURCE
(202) CREE™ 3W Cool White LEDs
80,000 Total Lumens
50,000 Hour Average LED Life**

**LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
16,450 LUX 1,528 FC @3.3’ (1m) (120° Full ON)

EFFECTS
Electronic Dimming
Burst, Pulse, Lighting, Full ON*
*Thermally regulated output at full max 10 seconds.

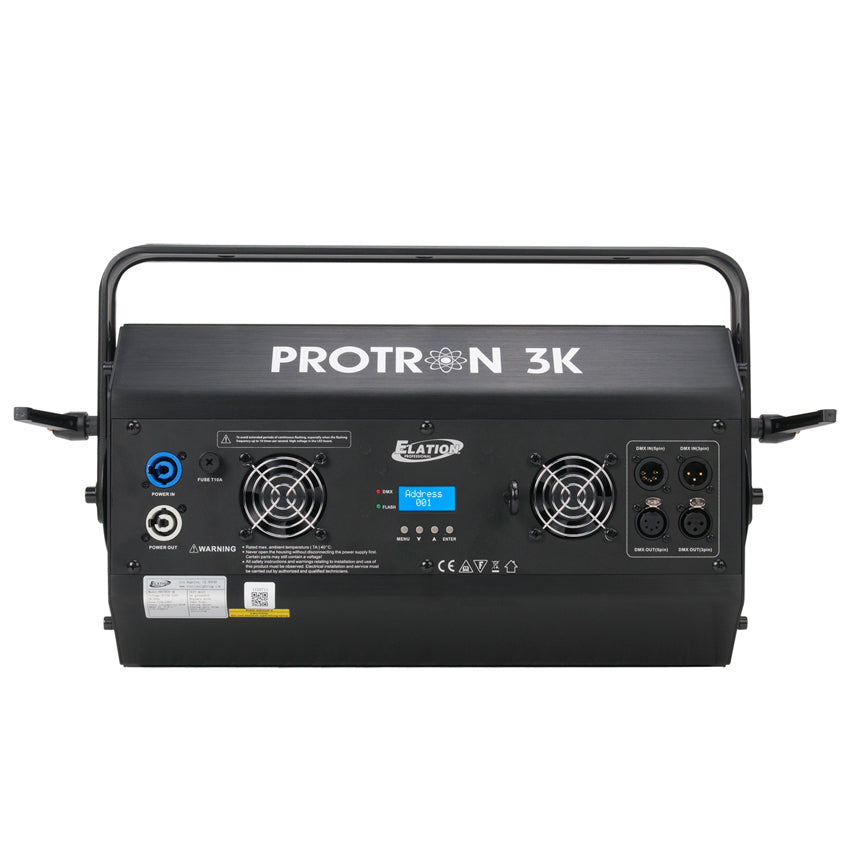

CONTROL / CONNECTIONS
3 DMX Channel Modes (1 / 2 / 3 / 4)
4 Button Control Panel
LCD Menu Display
3/5pin DMX In/Out
powerCON In/Out
Power Link Up To (2) Units at 120V

SIZE / WEIGHT
Length: 21.5” (546mm)
Width: 6.9” (175mm)
Vertical Height: 11.7” (296mm)
Weight: 17.2 lbs. (7.8kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
900W Max Power Consumption
Max Ambient Temperature 113°F (40°C)

APPROVALS / RATINGS
CE | cETLus | IP20

INCLUDED ITEMS
powerCON Cable

OPTIONAL ACCESSORIES:

CLAMPS (click for more info)


PRO CABLES (click for more info)

DMX SOLUTIONS (click for more info)

Specifications and documentation subject to change without notice.
